Exhaust Downpipe: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Note the position of the exhaust upper downpipe clamp from disassembly.

NOTE: Do not tighten the upper downpipe clamp at this time.

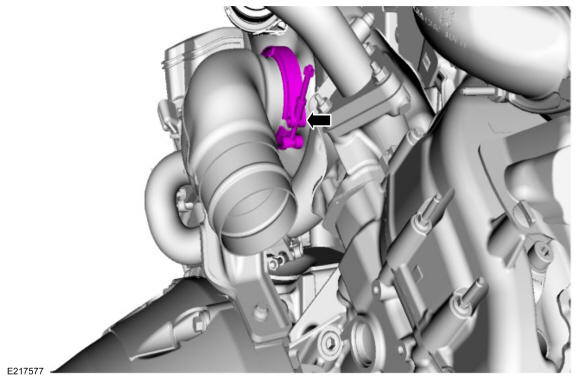

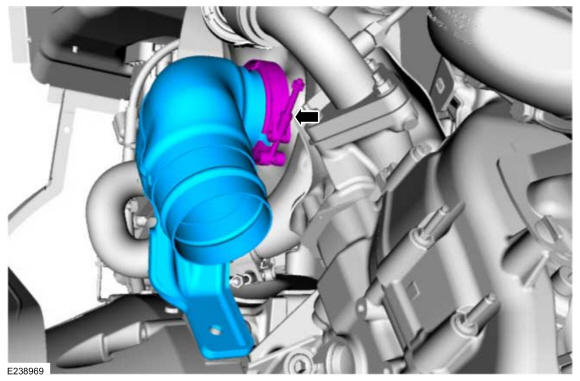

Disengage the new exhaust upper downpipe clamp T-bolt. While positioning the exhaust upper downpipe, loosely position the clamp over the turbocharger flange and the exhaust upper downpipe flange.

Courtesy of FORD MOTOR COMPANY

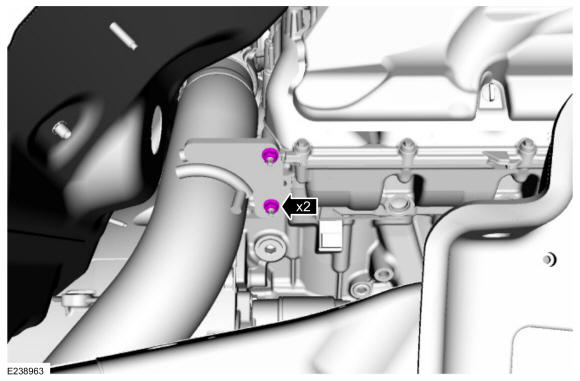

NOTE: Only hand tighten the exhaust upper downpipe bracket bolt at this time.

Install and hand tighten the exhaust upper downpipe bracket bolt.

Courtesy of FORD MOTOR COMPANY

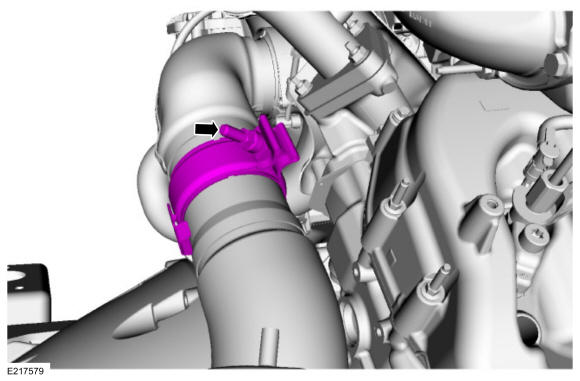

Engage the new exhaust upper downpipe clamp T-bolt and position the clamp as noted during disassembly.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the exhaust upper downpipe bracket bolt.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the exhaust lower downpipe clamp from disassembly.

NOTE: Do not tighten the exhaust lower downpipe clamp at this time.

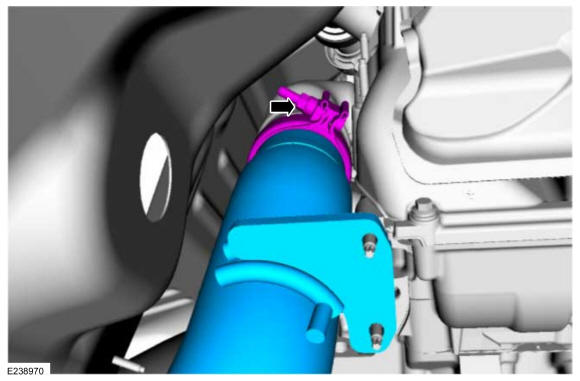

Loosely position the exhaust lower downpipe into the exhaust upper downpipe.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten the exhaust lower downpipe bracket nuts at this time.

Install the exhaust lower downpipe bracket nuts finger tight.

Courtesy of FORD MOTOR COMPANY

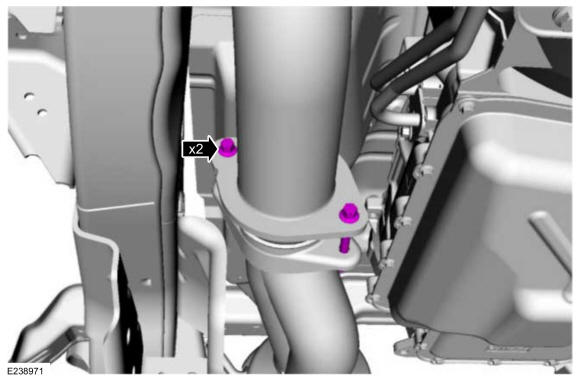

NOTE: Only hand tighten the exhaust lower downpipe-to-catalyst and particulate filter assembly bolts at this time.

Install the new exhaust lower downpipe-to-catalyst and particulate filter assembly bolts and hand tighten.

Courtesy of FORD MOTOR COMPANY
Tighten the exhaust lower downpipe bracket nuts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the exhaust lower downpipe clamp from disassembly.

NOTE: Make sure the exhaust upper and lower downpipes are aligned and fully seated together before tightening the clamp.

Tighten the exhaust upper downpipe clamp.

Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the exhaust lower downpipe-to-catalyst and particulate filter assembly bolts.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler tubes. Refer to: Transmission Fluid Cooler Tubes - 6.7L Power Stroke Diesel, 6-Speed Automatic Transmission - 6R140 .
Install the upper intake manifold. Refer to: Upper Intake Manifold .
Check the exhaust system for leaks.
