Roof Opening Panel Motor: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

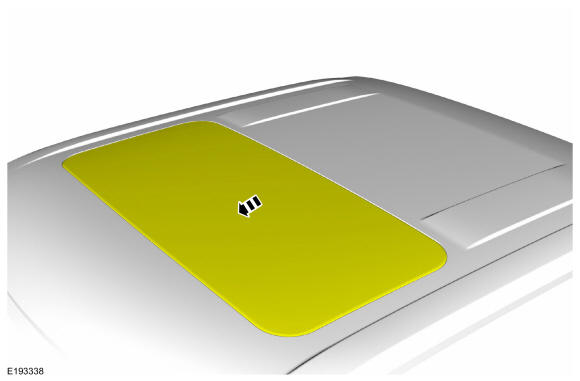

- Place the roof opening panel glass to the fully CLOSE position.
- Place the roof opening panel shield to the fully OPEN position.
- Lower the headliner. Refer to: Headliner - Lowering - Super Cab .

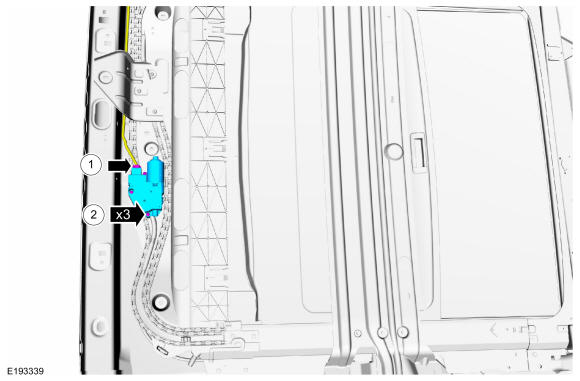

- Remove the roof opening panel motor.
- Disconnect the roof opening panel motor electrical connector.
- Remove the roof opening panel motor to the roof opening panel frame retainers and remove the roof opening panel motor.
Torque: 31 lb.in (3.5 Nm)
