Roof Opening Panel Glass: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Place the roof opening panel shield to the fully OPEN position.
- Place the roof opening panel glass to the VENT position.
-
NOTE: LH side shown, RH side similar.

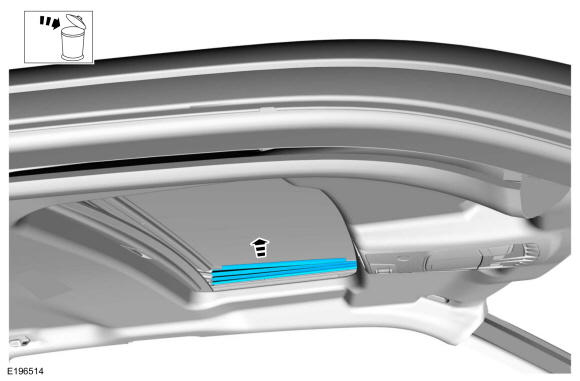

Remove both roof opening panel blinds by pulling inward on the top and bottom of the roof opening panel blind. Discard the blinds.
-
NOTE: LH side shown, RH side similar.

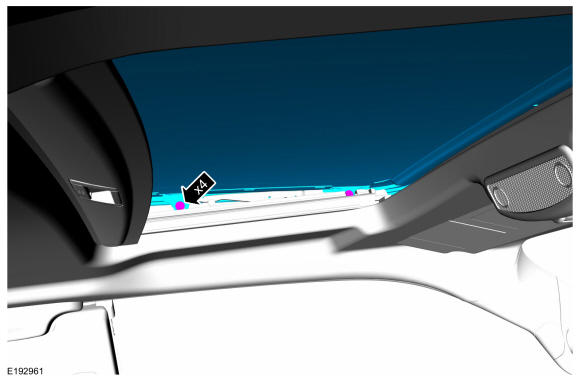

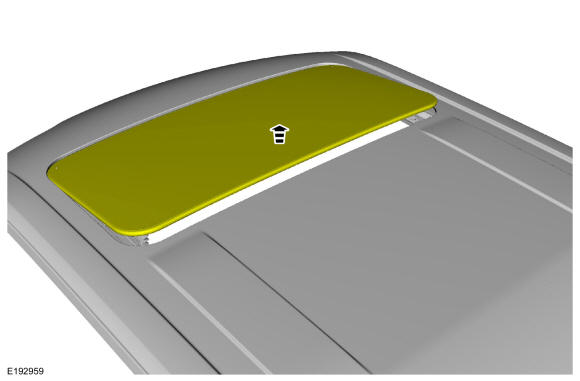

Remove the bolts and with the aid of an assistant, remove the roof opening panel glass
Torque: 35 lb.in (4 Nm)
