Air Deflector: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

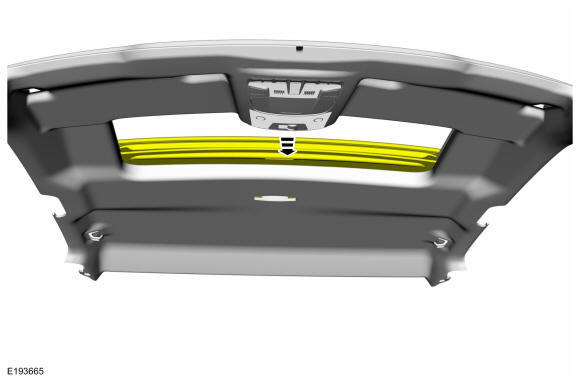

Place the roof opening panel glass in the fully OPEN position.

Courtesy of FORD MOTOR COMPANY

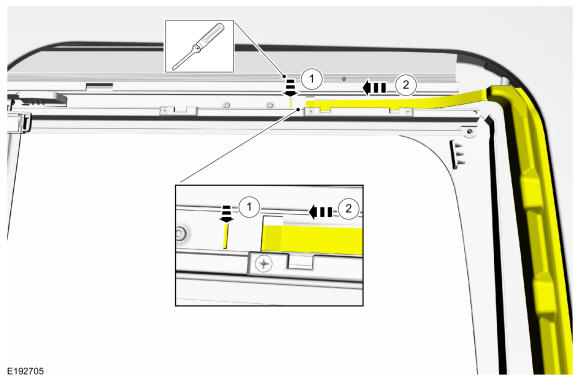

NOTE: LH side shown, RH side similar.

On both sides, release the air deflector locking tab.
1. Depress the spring steel locating tab downward with a flat-bladed screwdriver.
2. Push the air deflector toward the rear of the vehicle.
Courtesy of FORD MOTOR COMPANY

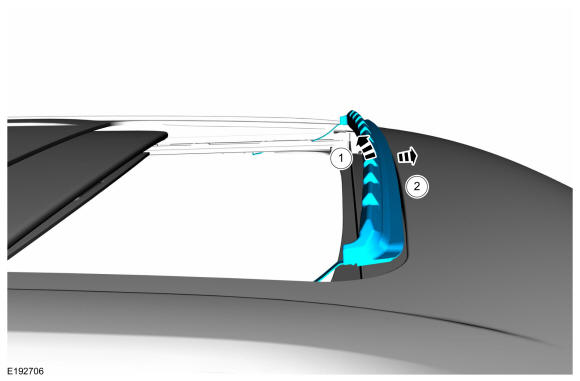

Remove the air deflector assembly.
1. Tilt the air deflector assembly upward.
2. Pull forward to remove air deflector assembly.

Courtesy of FORD MOTOR COMPANY
