Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Adjustment

NOTE: The front sliding glass panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time the roof opening panel motor has been removed, the roof opening panel glass has been removed or adjusted, or if the roof opening panel frame has been removed.

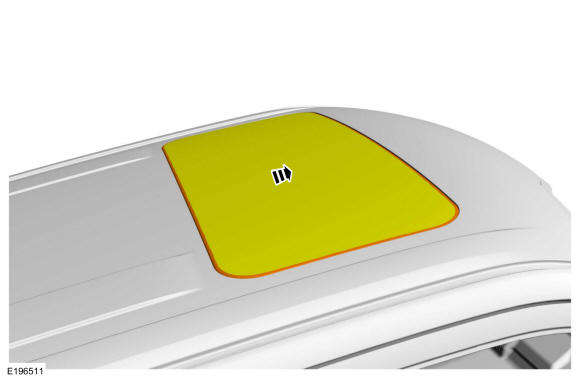

Fully close the roof opening panel.

Courtesy of FORD MOTOR COMPANY

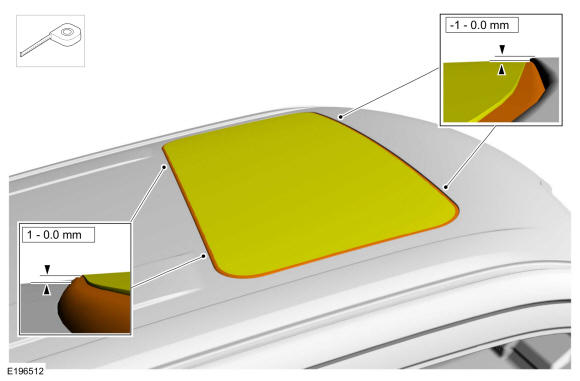

Measure the front and rear of the roof opening panel glass to roof clearances as shown.

Courtesy of FORD MOTOR COMPANY

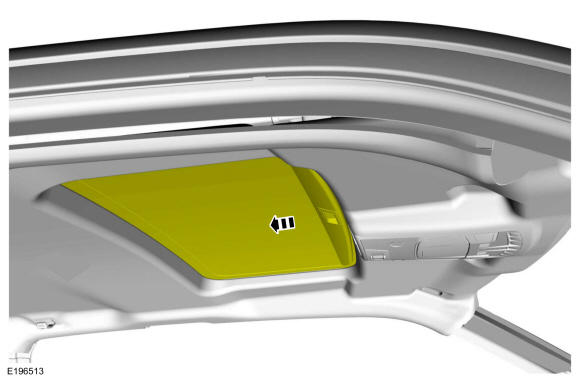

If adjustment is needed, fully open the roof opening panel shield.

Courtesy of FORD MOTOR COMPANY
Remove the roof opening panel blinds. Refer to: Roof Opening Panel Blind .
Adjust the roof opening panel glass.

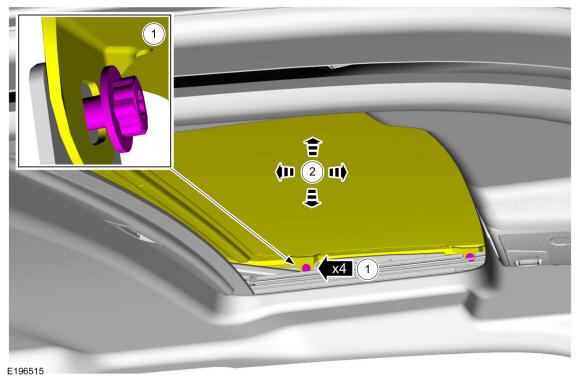

1. NOTE: LH side shown, RH side similar.

  On both sides, loosen the retainers to adjust the roof opening panel glass.

  Torque: 35 lb.in (4 Nm)
2. Adjust the roof opening panel glass as necessary.
Courtesy of FORD MOTOR COMPANY
Install the roof opening panel blinds. Refer to: Roof Opening Panel Blind .
If any adjustment was made, initialize the roof opening panel glass. Refer to: Power Roof Opening Panel Initialization .
