Trough Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .

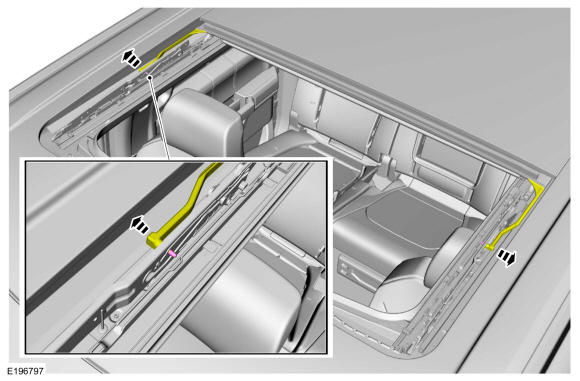

  2. Detach the trough assembly arms on both sides.
    GFD207013Courtesy of FORD MOTOR COMPANY

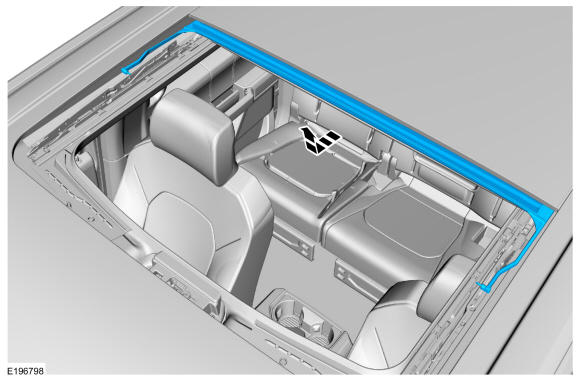

  3. Pull the trough assembly towards the front of the vehicle and remove the trough assembly.
GFD207014Courtesy of FORD MOTOR COMPANY
