Roof Opening Panel Glass: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Vent the roof opening panel glass.
-
NOTE: During installation, make sure the blind is fully seated. An audible noise will be heard when the blind seats to the lower bracket.

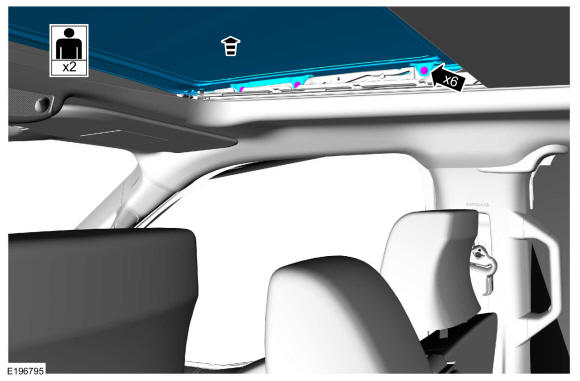

RH side shown, LH side similar. On both sides, remove the roof opening panel blind by pulling inward on the top and bottom of the roof opening panel blind and discard.
- Close the roof opening panel glass.

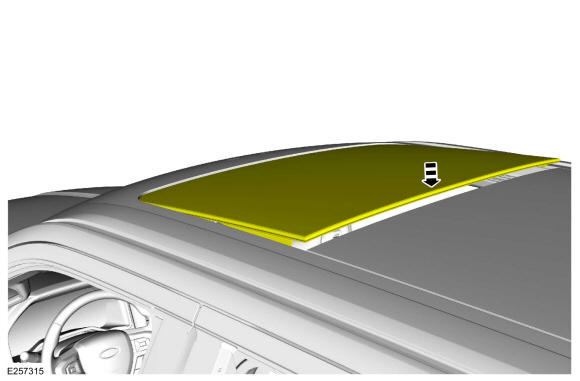

- Remove the bolts on both sides and with the aid of an assistant, remove the roof opening panel glass.
Torque: 35 lb.in (4 Nm)
