Roof Opening Panel Fixed Glass: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the roof opening panel frame. Refer to: Roof Opening Panel Frame .
-
NOTE: Position the roof opening panel frame upside down on a suitable workbench.

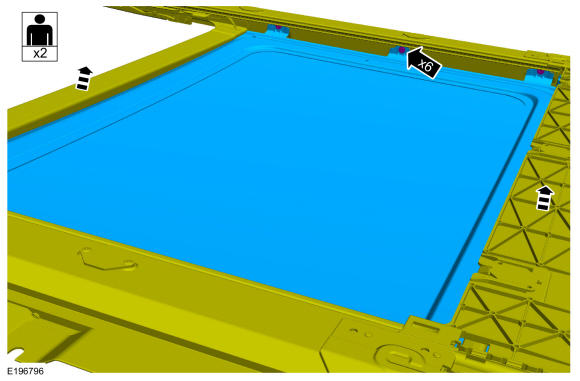

Remove the roof opening panel fixed glass bolts and with the aid of an assistant, separate the frame from the glass.
Torque: 35 lb.in (4 Nm)
