Air Deflector: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

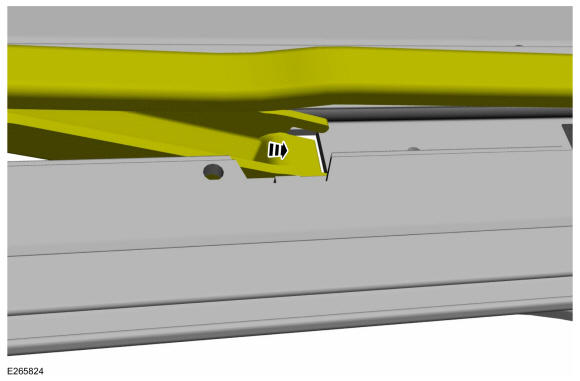

- On both sides. Insert the air deflector bracket to the track channel.

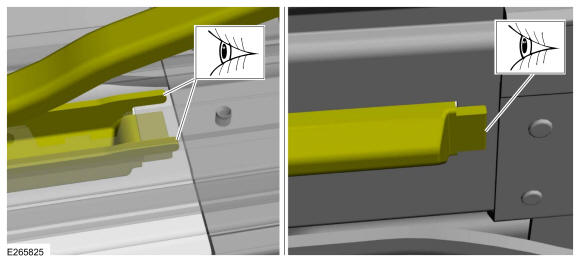

- On both sides. Make sure the air deflector bracket top and bottom tabs are properly fitted in place.

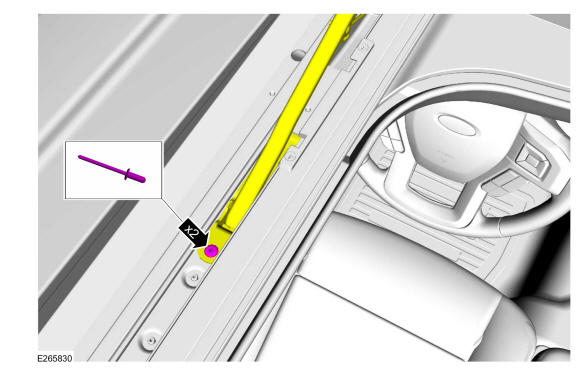

- On both sides. Install the air deflector arm and the rivet.
Item Blind Rivet 1 W790368-S900 Use the General Equipment: Rivet Gun

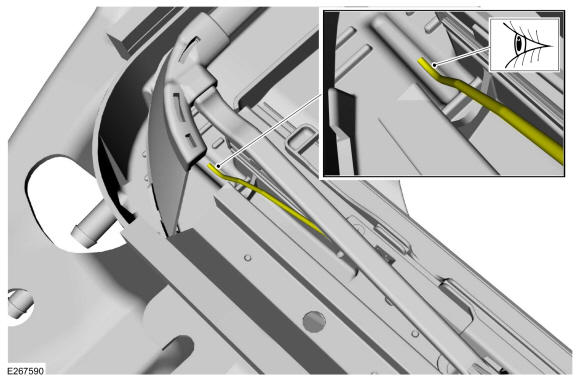

- Position the end of the springs in the frame pocket as shown.

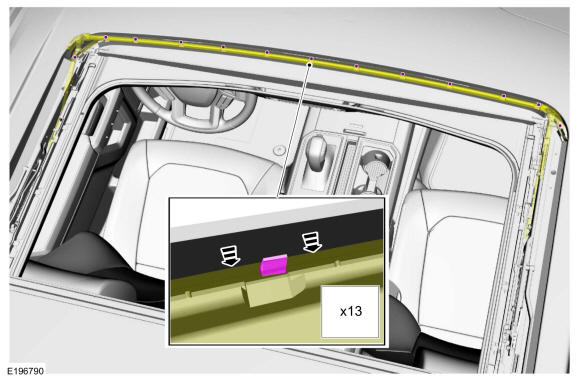

- Attach the plastic edge of air deflector fabric material to the frame tabs.
-
NOTE: If the deflector fabric material is not centered, the deflector arms may make contact with the sides of the frame causing a bind and a possible bounce-back condition when closing the glass.

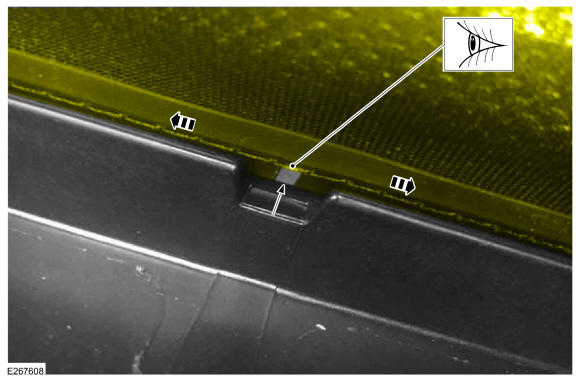

Make sure the alignment mark on the deflector fabric material is aligned with the center frame tab opening. Move the deflector fabric material from side-to-side as necessary.
- Carry out the roof opening panel initialization. Refer to: Power Roof Opening Panel Initialization .
