Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Dual Rear Wheel (DRW) hub shown in illustration, Single Rear Wheel (SRW) hub similar.
- Remove the wheel hub. REFER to: Wheel Hub .

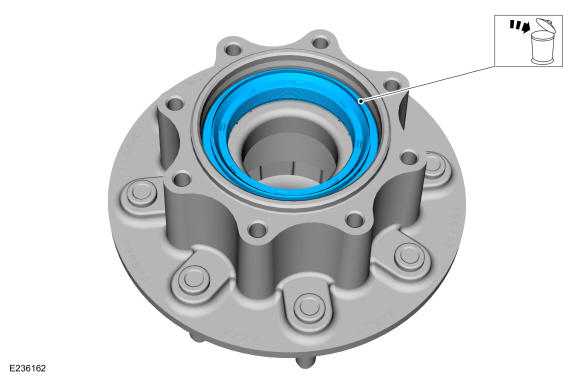

- Remove and discard the wheel hub inner seal.
- Remove the inner wheel hub bearing.

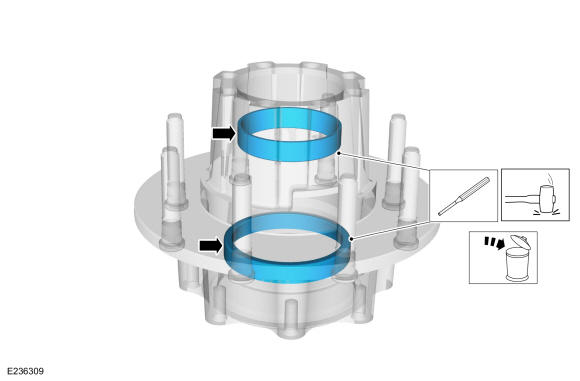

- Remove and discard the outer wheel bearing cup.
Use the General Equipment: Punch
Use the General Equipment: Copper Hammer
