Drive Pinion: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the drive pinion bearing cups are seated correctly or damage to the components may occur.

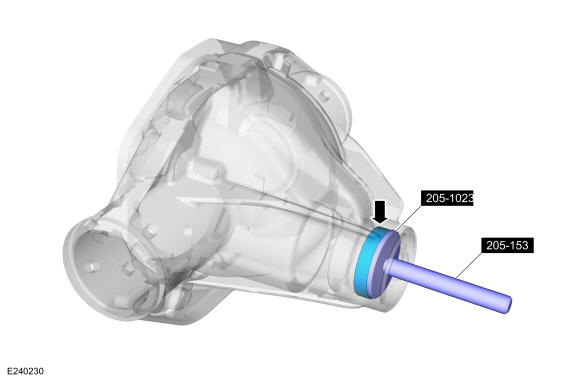

Using the special tools, install the new outer drive pinion bearing cup. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. 205-1023 Installer, Inner Pinion Bearing Cup.

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten finger tight at this stage.

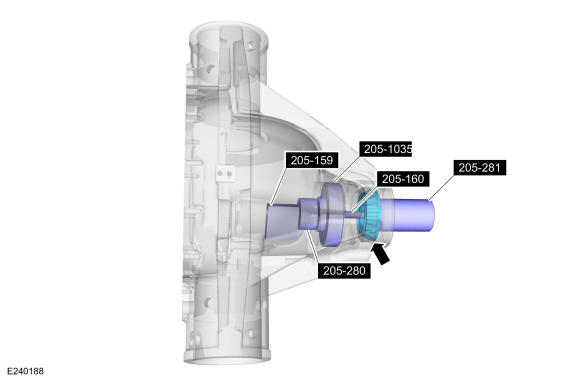

Assemble the pinion depth special tools and the new outer bearing in the differential housing. Use Special Service Tool: 205-159 (T80T-4020-F42) Adapter for 205-S156 Pinion Depth Gauge., 205-160 (T80T-4020-F43) Adapter for 205-S156 Pinion Depth Gauge., 205-280 (T88T-4020-A) Depth Gauge/Aligner, Drive Pinion., 205-281 (T88T-4020-B) Depth Gauge/Aligner, Drive Pinion (Handle)., 205-1035 Dummy Pinion Bearing.

Courtesy of FORD MOTOR COMPANY
- Tighten special tools and check for clear rotation.
- NOTE: This step duplicates final drive pinion bearing preload

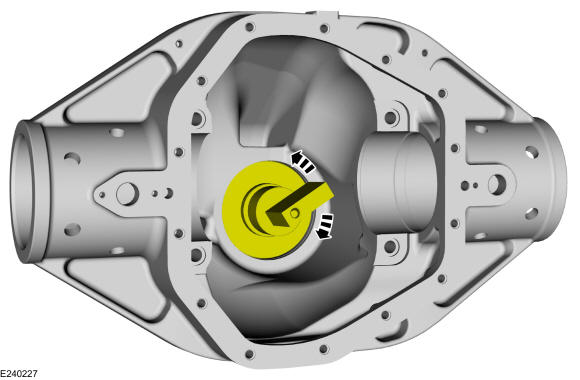

  Tighten the special tool to the specified torque.

  Torque: 18 lb.in (2 Nm)
- Slowly rotate and record the rotational torque readings.
Courtesy of FORD MOTOR COMPANY

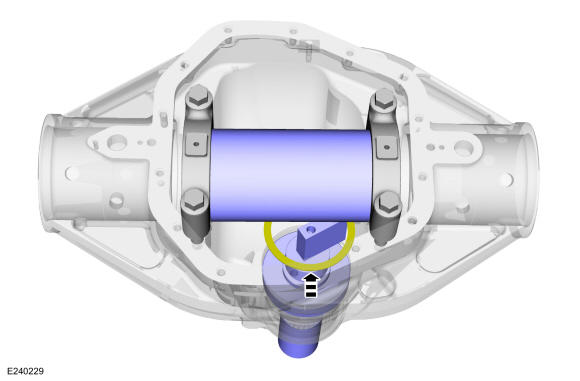

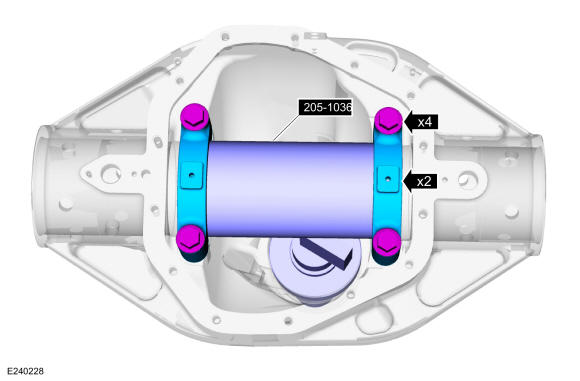

Install the special tool and the differential bearing caps and differential bearing cap bolts. Use Special Service Tool: 205-1036 Gauge Tube.
Torque: 83 lb.ft (112 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Drive pinion bearing adjustment shims must be flat and clean.

NOTE: A slight drag should be felt for correct drive pinion bearing adjustment shim selection. Do not attempt to force the drive pinion bearing adjustment shim between the gauge block and the gauge tube. This will minimize selection of a drive pinion bearing adjustment shim thicker than required, which results in a deep tooth contact in the final assembly of integral axle assemblies.

Use a drive pinion bearing adjustment shim as a gauge for drive pinion bearing adjustment shim selection. Select the correct shim that has a slight drag.

Courtesy of FORD MOTOR COMPANY
NOTE: The differential bearing caps need to stay in the correct orientation for installation.

Remove the differential bearing cap bolts and differential bearing caps, remove the special tools. Use Special Service Tool: 205-1036 Gauge Tube.

Courtesy of FORD MOTOR COMPANY
Remove the special tools and the outer pinion bearing. Use Special Service Tool: 205-129 (T79P-4020-A18) Disc, Guage., 205-159 (T80T-4020-F42) Adapter for 205-S156 Pinion Depth Gauge., 205-160 (T80T-4020-F43) Adapter for 205-S156 Pinion Depth Gauge., 205-280 (T88T-4020-A) Depth Gauge/Aligner, Drive Pinion., 205-281 (T88T-4020-B) Depth Gauge/Aligner, Drive Pinion (Handle)., 205-1035 Dummy Pinion Bearing.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the drive pinion bearing cups are seated correctly or damage to the components may occur.

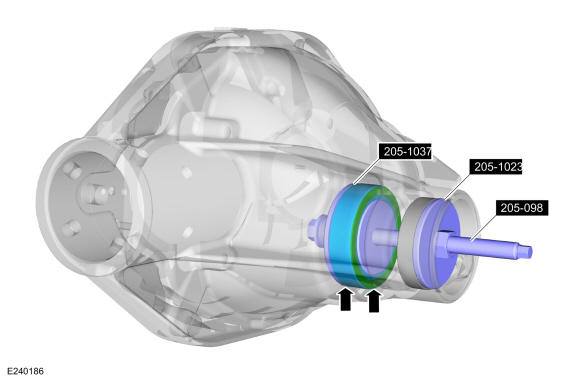

Using the special tools, install the selected pinion depth shim and the new inner drive pinion bearing cup. Use Special Service Tool: 205-098 (T75T-1176-A) Drawbar, Rear Axle., 205-1023 Installer, Inner Pinion Bearing Cup., 205-1037 Installer, Pinion Bearing Cup.

Courtesy of FORD MOTOR COMPANY

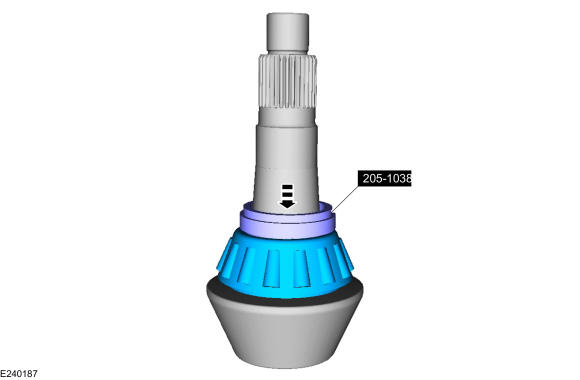

Install the drive pinion inner bearing until it is firmly seated on the drive pinion. Use Special Service Tool: 205-1038 Installer, Pinion Bearing Head. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
Install the new drive pinion collapsible spacer.

Courtesy of FORD MOTOR COMPANY

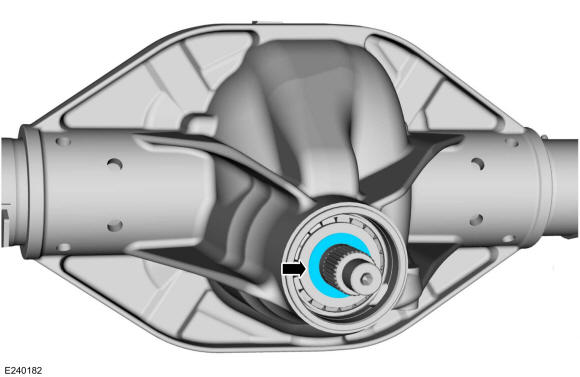

Install the new outer differential pinion bearing and the differential pinion.

Courtesy of FORD MOTOR COMPANY

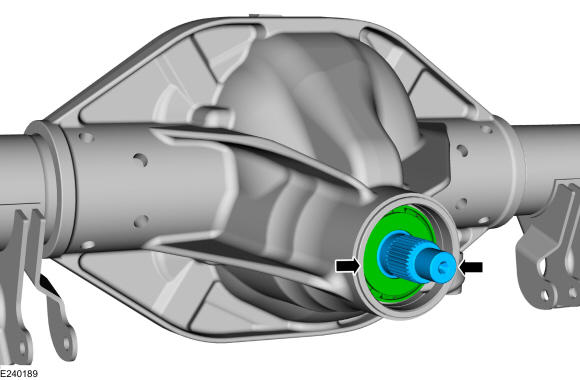

Install the drive pinion outer thrust washer.

Courtesy of FORD MOTOR COMPANY
Install the drive pinion seal. REFER to: Drive Pinion Seal .
Install the differential carrier. REFER to: Differential Carrier .
