Differential Carrier: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the differential housing cover. REFER to: Differential Housing Cover .
- Remove the axle shafts. REFER to: Axle Shaft .
-
NOTE: The differential bearing caps and differential bearing cap bolts need to be installed in the same location as removed.

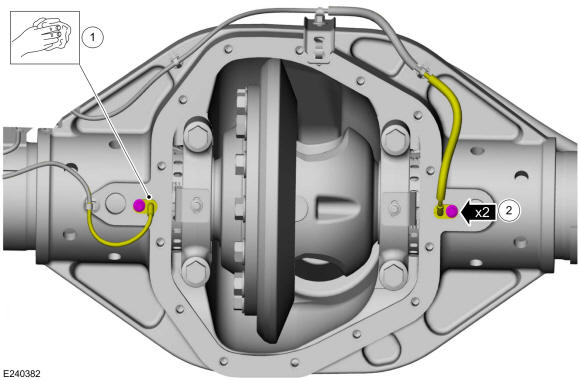

- Clean the ABS sensors and the area around them.
- Remove the ABS sensor bolts and position the ABS sensors aside.

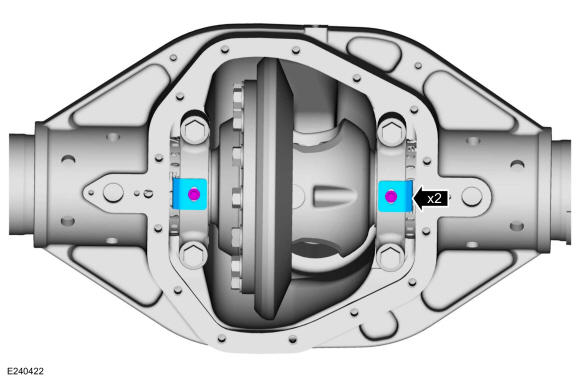

- Remove the differential bearing adjuster locks and adjuster lock bolts.
-
NOTE: The differential bearing caps and differential bearing cap bolts need to be installed in the same location as removed.

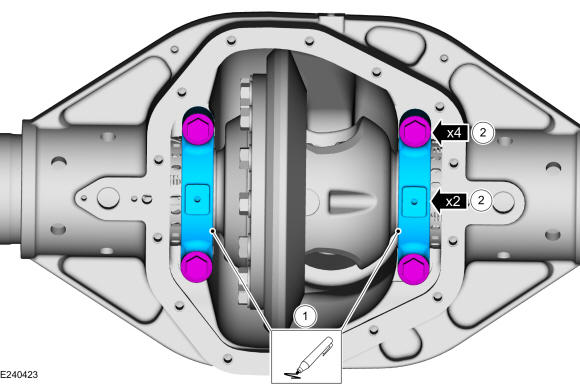

- Mark the differential carrier bearing caps.
- Remove the differential carrier bearing caps and bolts.

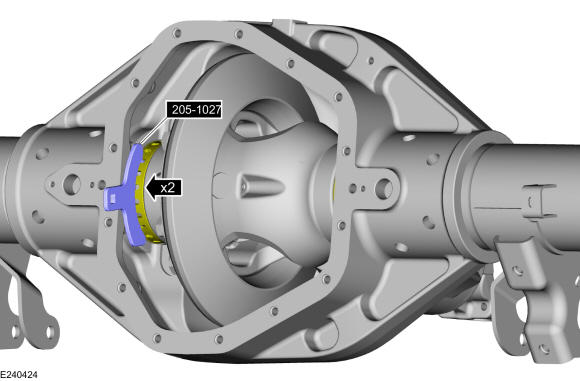

- Loosen the differential bearing preload adjusters until there is just enough that a slight drag can be felt when pulling the differential carrier out. Use Special Service Tool: 205-1027 Adjuster, Differential Bearing.

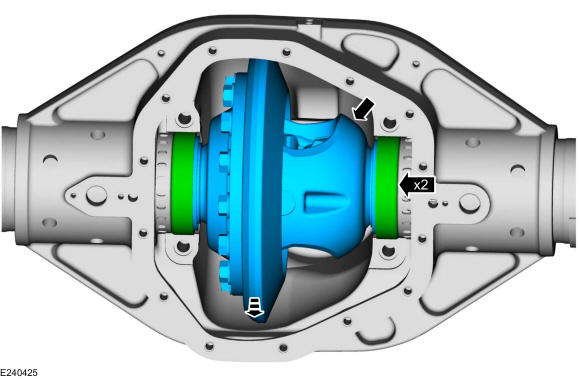

- Remove the differential carrier and differential carrier bearing cups.

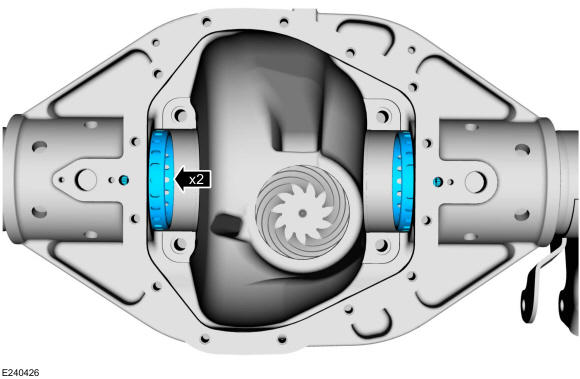

- If needed, remove the differential preload adjusters.
