Differential Carrier: Assembly
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-

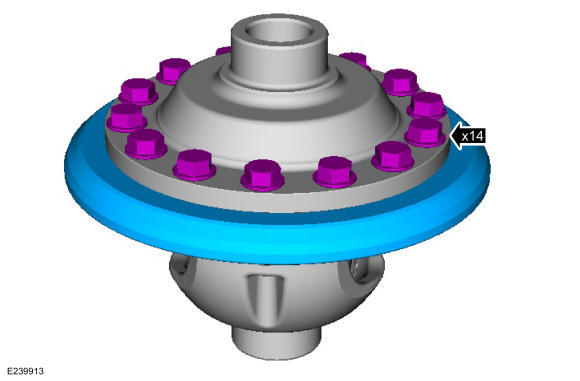

NOTE: Tighten the ring gear bolts in a cross pattern.
Install the ring gear and the new ring gear bolts.
Torque:
Stage 1: 111 lb.ft (150 Nm)
Stage 2: 65 °

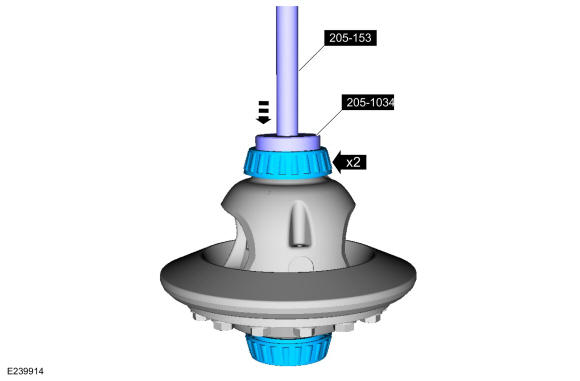

- Using the special tools, install the new differential bearings. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-1034 Installer, Differential Bearing.
- Install the differential carrier. REFER to: Differential Carrier .
