Front Muffler: Removal
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Support the exhaust system before removing.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Clean all exhaust connections before reassembly.
- Remove the Rear muffler. Refer to: Rear Muffler .
- Support the system with a ratchet strap
-

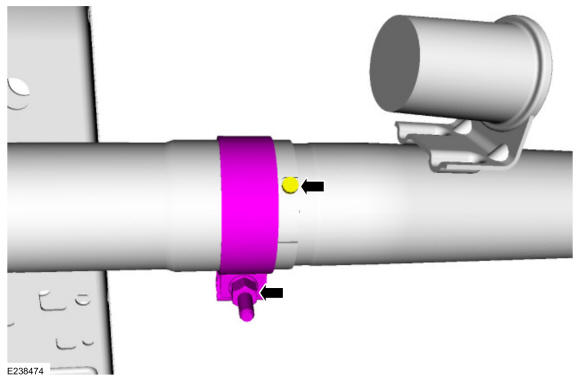

NOTE: During assembly, make sure the tab is fully seated in the notch on the pipe.
Loosen the front muffler-to-rear muffler clamp or, if equipped, the front muffler-to-exhaust intermediate pipe clamp.
Torque: 41 lb.ft (55 Nm)

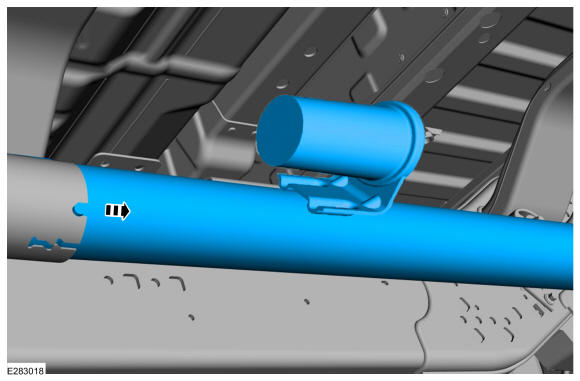

- Remove the exhaust intermediate pipe.

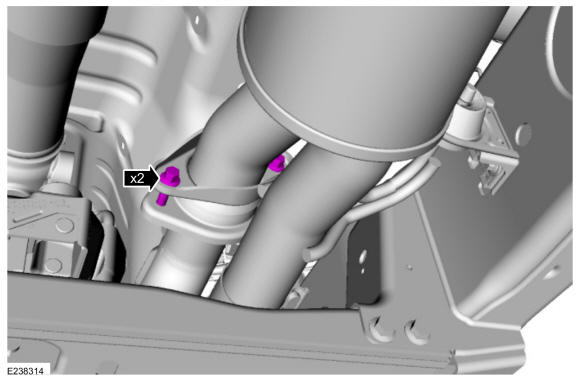

- Remove the exhaust Y-pipe-to-front muffler bolts.
Torque: 30 lb.ft (40 Nm)
-
NOTE: Do not tighten until components are aligned.

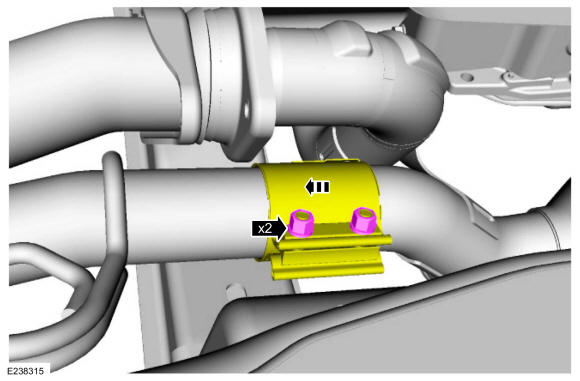

Loosen the 2 nuts on the clamp and slide it rearward.
Torque: 35 lb.ft (48 Nm)

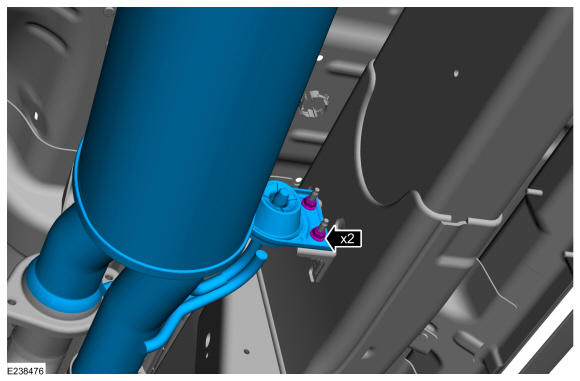

- Remove the front muffler isolator bolts and remove the front muffler.
Torque: 22 lb.ft (30 Nm)
