Cooling Fan: Removal
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- The cooling fan is removed in the cooling fan shroud procedure. Refer to: Cooling Fan Shroud .NOTE: This step is only necessary when installing a new component.

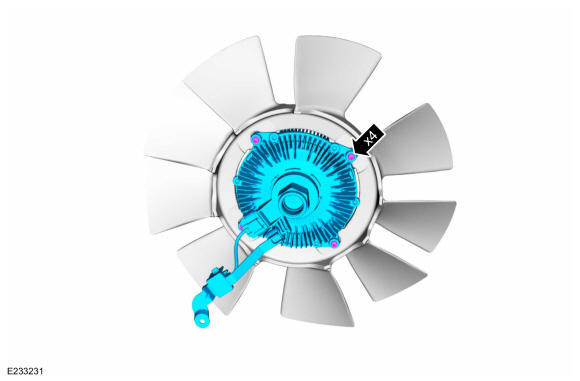

- Remove the bolts and separate the cooling fan from the cooling fan clutch.
Torque: 93 lb.in (10.5 Nm)
