Coolant Pump: Removal
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the cooling fan. Refer to: Cooling Fan .

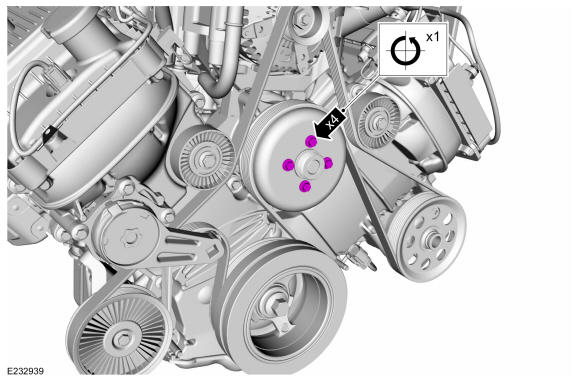

- Loosen the coolant pump pulley bolts.
- Remove the accessory drive belt. Refer to: Accessory Drive Belt .
- Remove the bolts and the coolant pump pulley.

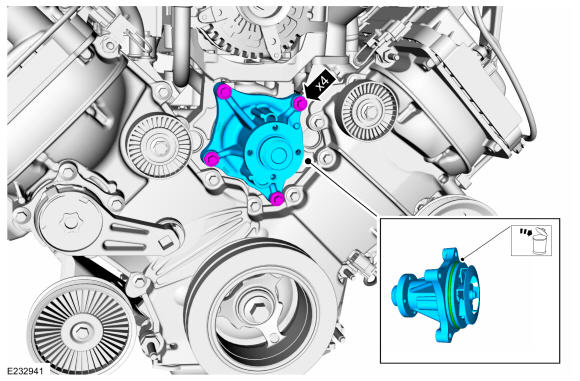

- Remove the bolts and the coolant pump. Discard the O-ring seal.
