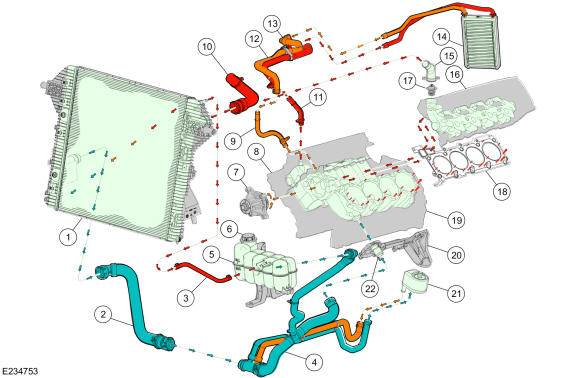

Exploded View of Engine Cooling System 6.2L V8
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Lower radiator hose |
| 3 | Radiator-to-degas bottle hose |
| 4 | Lower rear radiator hose |
| 5 | Degas bottle |
| 6 | Pressure relief cap |
| 7 | Coolant pump |
| 8 | Cylinder head RH |
| 9 | Heater outlet hose |
| 10 | Upper radiator hose |
| 11 | Heater inlet hose |
| 12 | Heater hose assembly |
| 13 | Heater outlet hose assembly |
| 14 | Heater core |
| 15 | Coolant outlet connector |
| 16 | Cylinder head LH |
| 17 | Thermostat |
| 18 | Cylinder head gasket LH |
| 19 | Cylinder block |
| 20 | Oil filter adaptor |
| 21 | Engine oil cooler |
| 22 | Oil pressure switch |
