Seatbelt Shoulder Height Adjuster - SuperCab: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

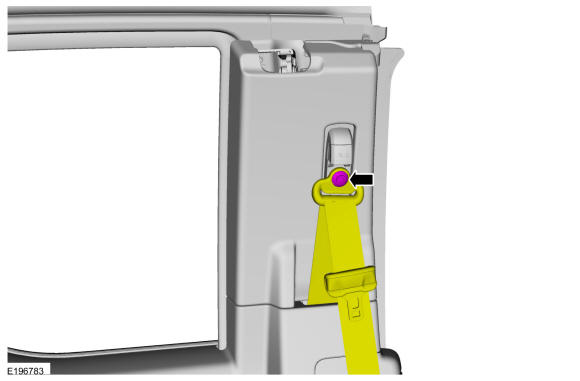

Remove the bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

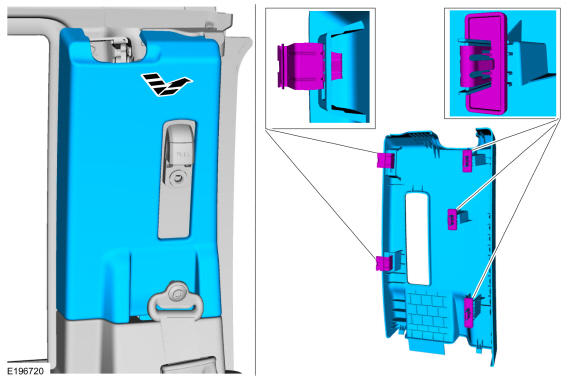

Remove the rear door upper trim panel.

Courtesy of FORD MOTOR COMPANY

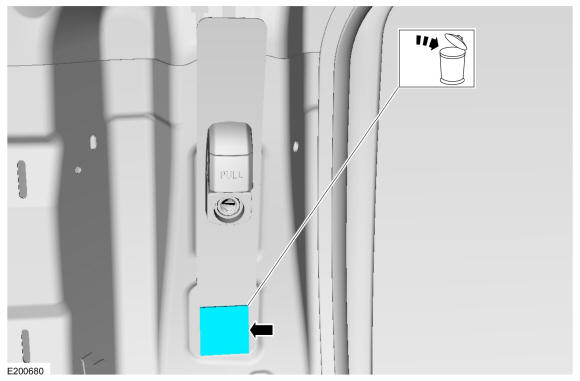

Remove the weather seal and discard.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use excessive force pulling the seatbelt shoulder height adjuster release latch when the D-ring cover has been removed. Failure to follow this instruction may cause the release latch to be dislodged from the height adjuster assembly.

Pull the release latch and slide the height adjuster down.

Courtesy of FORD MOTOR COMPANY
Position the height adjuster.
1. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)
2. Rotate the height adjuster.
Courtesy of FORD MOTOR COMPANY
Detach the lower tab and remove the height adjuster.

Courtesy of FORD MOTOR COMPANY
