Rear Outer Seatbelt Upper Retractor - Vehicles With: Inflatable Seatbelts: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH shown, RH similar.
- Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .

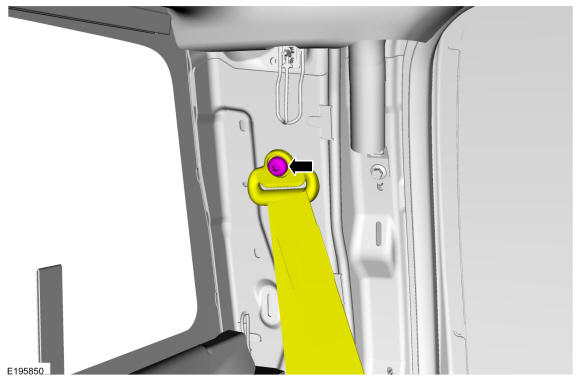

- Remove the bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)
- Remove the bolt and the upper seatbelt retractor.
Torque 30 lb.ft (40 Nm)
