Rear Outer Seatbelt Lower Retractor - Vehicles With: Inflatable Seatbelts: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

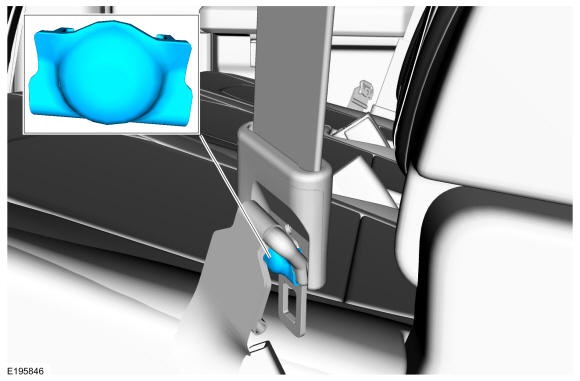

Remove the lower anchor bolt cover.

Courtesy of FORD MOTOR COMPANY

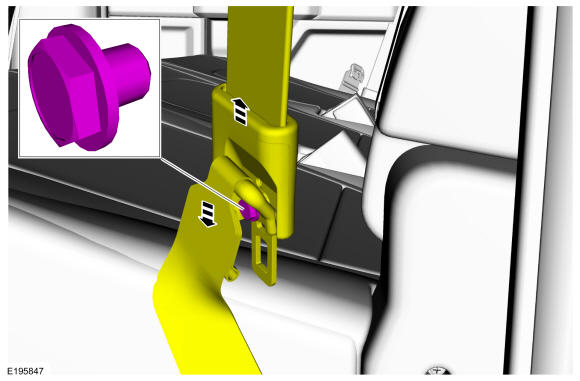

Remove the anchor bolt and separate the upper seatbelt from the lower seatbelt.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

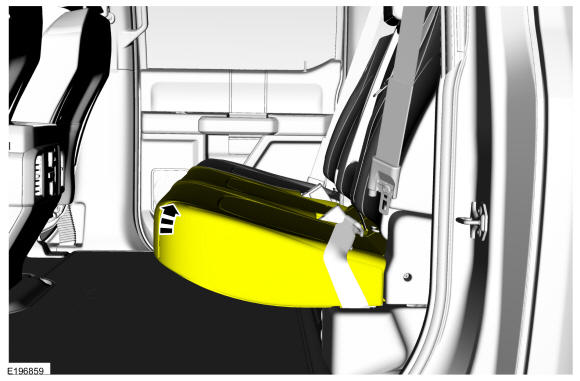

Vehicles without rear under seat storage
Raise the rear seat cushion.

Courtesy of FORD MOTOR COMPANY

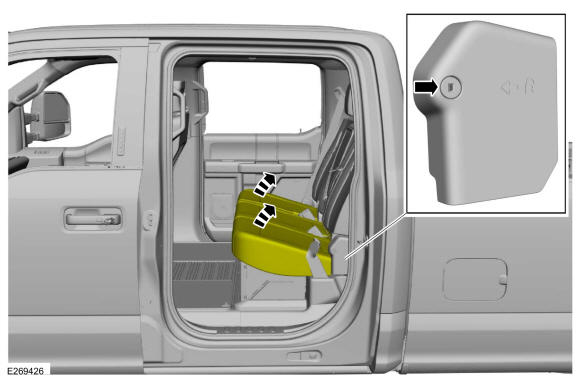

Vehicles with rear under seat storage
NOTE: The rear seat cushions must be unlocked to perform this step.

Raise the rear seat cushions.

Courtesy of FORD MOTOR COMPANY

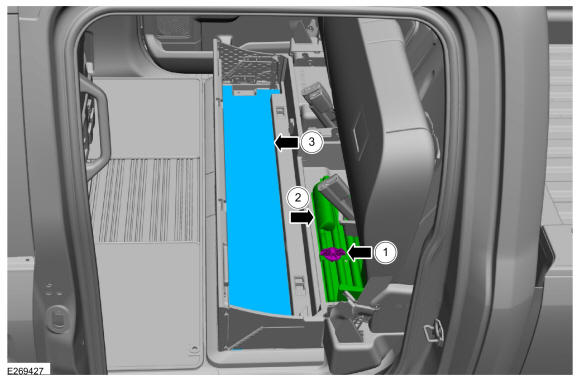

1. Remove the vehicle jack tool kit retainer.
2. Remove the vehicle jack tool kit.
3. Remove the rear under seat storage compartment mat.
Courtesy of FORD MOTOR COMPANY

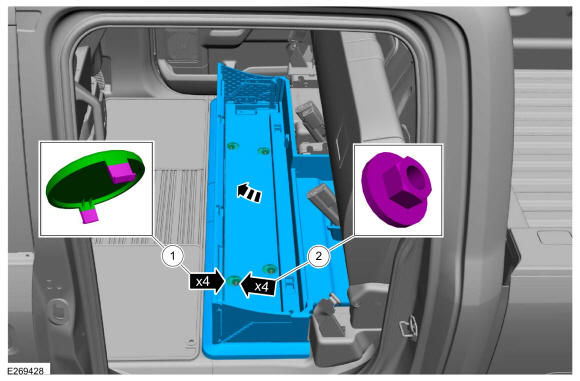

Remove the rear under seat storage compartment.
1. Remove the caps.
2. Remove the nuts.
Courtesy of FORD MOTOR COMPANY

All vehicles

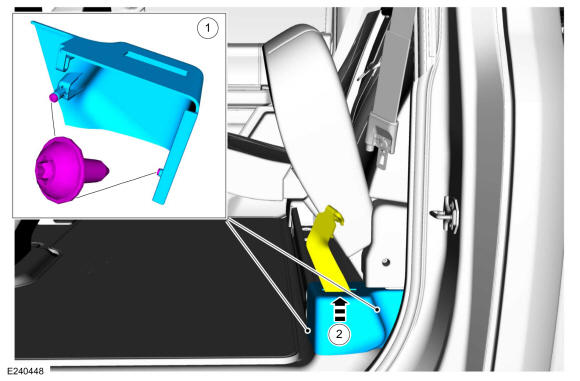

Remove the seatbelt lower retractor cover.
1. Remove the screws.
2. Remove the cover while feeding the seatbelt through the opening.
Courtesy of FORD MOTOR COMPANY

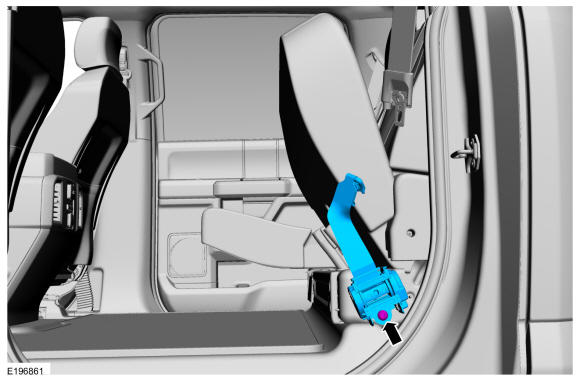

Remove the bolt and the seatbelt lower retractor.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
