Rear Center Seatbelt Retractor: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Crew Cab shown, all others similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the load space trim panel. Refer to: Loadspace Trim Panel - Crew Cab/Super Cab .

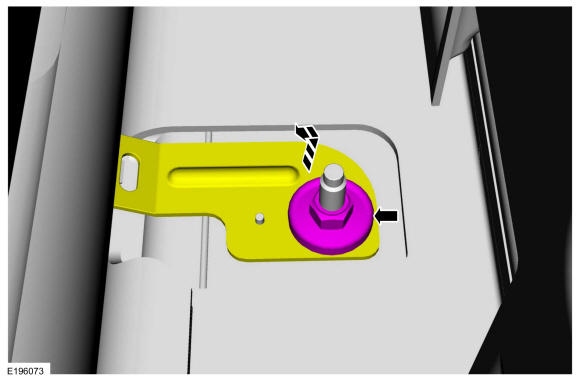

- Remove the nut and position the rear center seatbelt/buckle anchor aside.
Torque: 59 lb.ft (80 Nm)

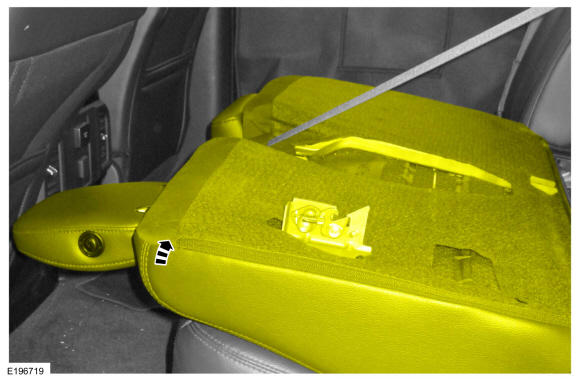

- Lift the rear seat backrest up.

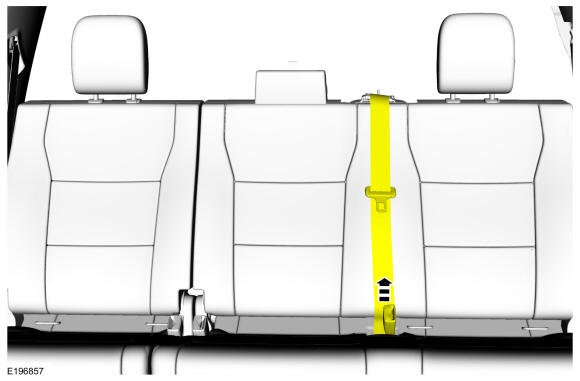

- Pull the rear center seatbelt/buckle through the seat cushion.

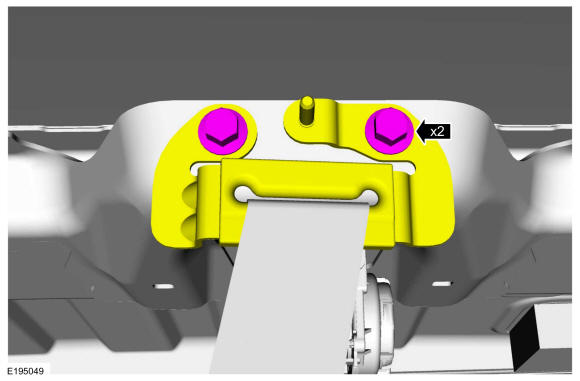

- Remove the bolts and position the seatbelt guide aside.
Torque: 30 lb.ft (40 Nm)

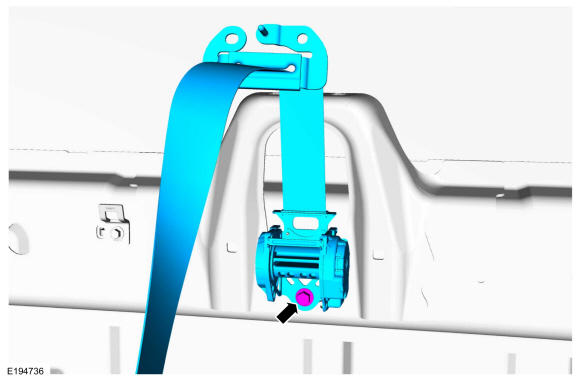

- Remove the bolt and the seatbelt retractor.
Torque: 30 lb.ft (40 Nm)
