Front Seatbelt Retractor and Pretensioner - Super Cab: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE:
LH shown, RH similar.
-
WARNING: Before beginning any service procedure in this article, refer to Health And Safety Precautions . Failure to follow this instruction may result in serious personal injury.
Refer to: Pyrotechnic Device Health and Safety Precautions .
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- Remove the rear door trim panel. Refer to: Rear Door Trim Panel - Super Cab .
- Release the retainers and position the seatbelt guide aside.
-
- Disconnect the front seatbelt retractor and pretensioner electrical connectors.
- Detach the wiring harness retainer.
- Remove the outer weather seal.

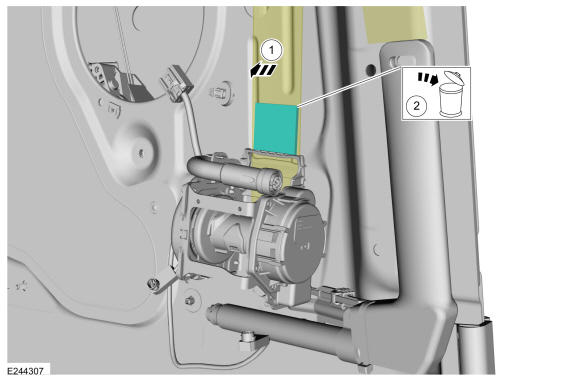

- Position the seatbelt aside.
- Remove the outer weather seal and discard.

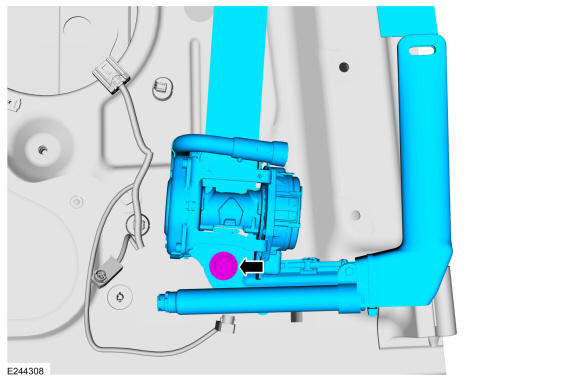

- Remove the bolt and the front seatbelt retractor and pretensioner.
- Remove the inner weather seal and discard.
- Clean the surface area of foreign materials.
