Front Seatbelt Retractor and Pretensioner - Super Cab: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Incorrect repair techniques or actions can cause an accidental Supplemental Restraint System deployment. Make sure the restraint system is depowered before reconnecting the component. Refer to Supplemental Restraint System (SRS) Depowering . Failure to precisely follow depowering instructions could result in serious personal injury from an accidental deployment.

NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.

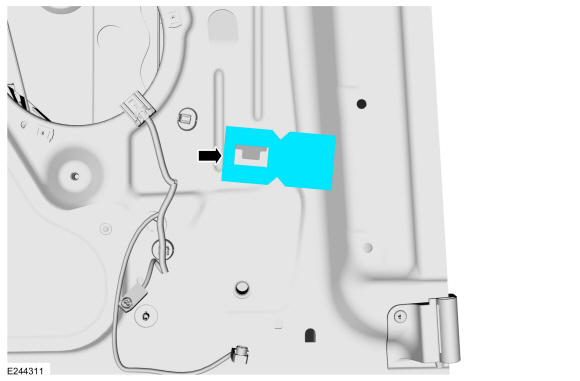

Install the weather seal.

Courtesy of FORD MOTOR COMPANY

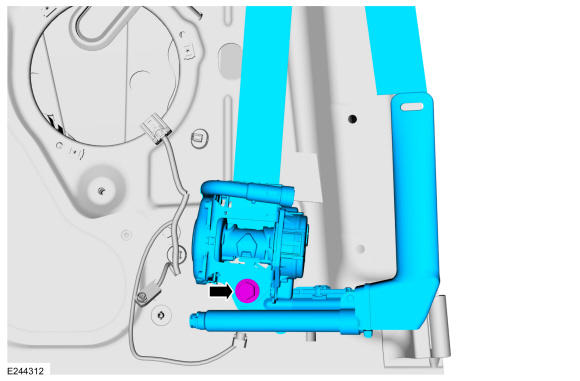

Install the bolt and the front seatbelt retractor and pretensioner.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

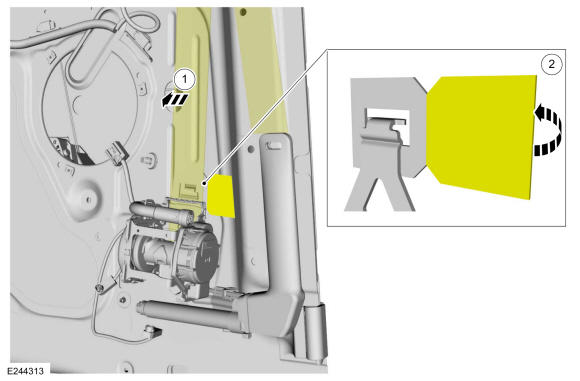

1. Position the seatbelt aside.
2. Fold the weather seal over the front seatbelt retractor and pretensioner alignment tab.
Courtesy of FORD MOTOR COMPANY

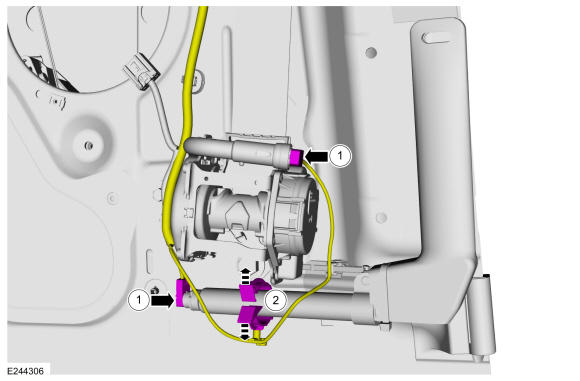

1. Connect the front seatbelt retractor and pretensioner electrical connectors.
2. Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

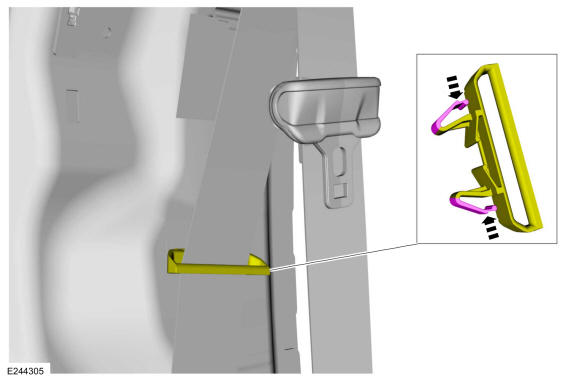

Attach the seatbelt guide.

Courtesy of FORD MOTOR COMPANY
Install the rear door trim panel. Refer to: Rear Door Trim Panel - Super Cab .
Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
Check the seatbelt system for correct operation. Refer to: Seatbelt Systems .
