Front Seatbelt Buckle: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Driver seat shown, passenger seat similar.
  1. Remove the front seat. Refer to: Front Seat .

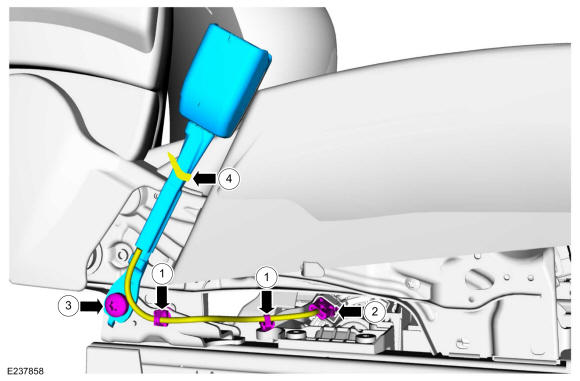

  2. Remove the seatbelt buckle.

    1. Release the wiring harness retainers.
    2. Disconnect the electrical connector.
    3. Remove the bolt and the seatbelt buckle.

      Torque: 30 lb.ft (40 Nm)

    4. Lift the elastic strap over the seatbelt buckle.

GFD207063Courtesy of FORD MOTOR COMPANY
