Glove Compartment: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

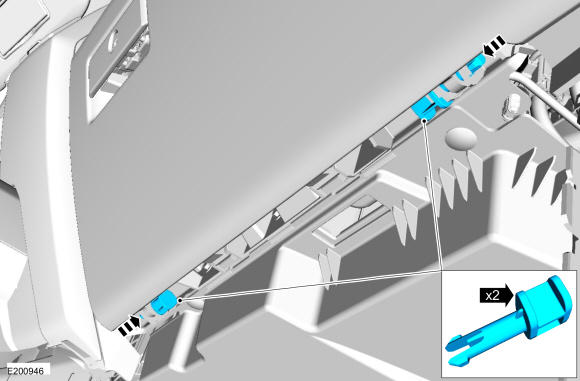

  1. Remove the glove compartment hinge pins.
    GFD206772Courtesy of FORD MOTOR COMPANY

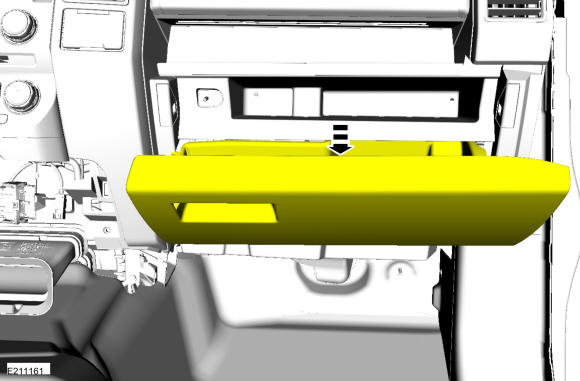

  2. Open the glove compartment.
    GFD206773Courtesy of FORD MOTOR COMPANY

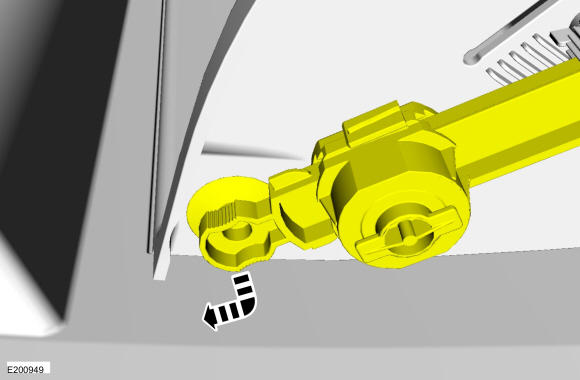

  3. Remove the glove compartment dampener from the glove compartment by pushing down and forward at the damper end.
    GFD206774Courtesy of FORD MOTOR COMPANY

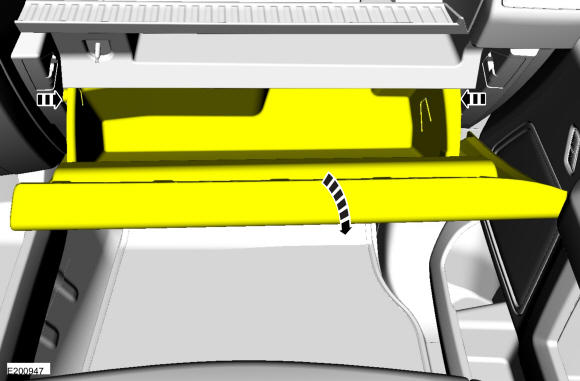

  4. Release glove compartment downstops and fully lower the glove compartment.
    GFD206775Courtesy of FORD MOTOR COMPANY

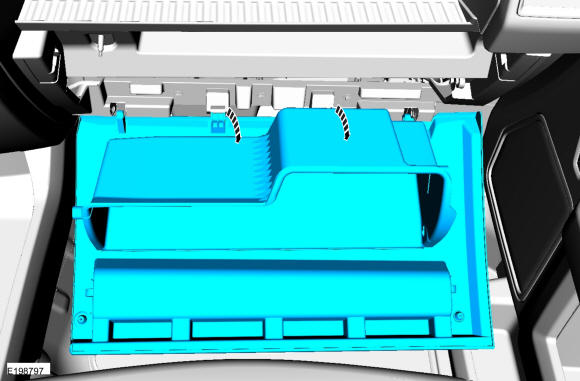

  5. Remove the glove compartment from the hinge line.
GFD206776Courtesy of FORD MOTOR COMPANY
