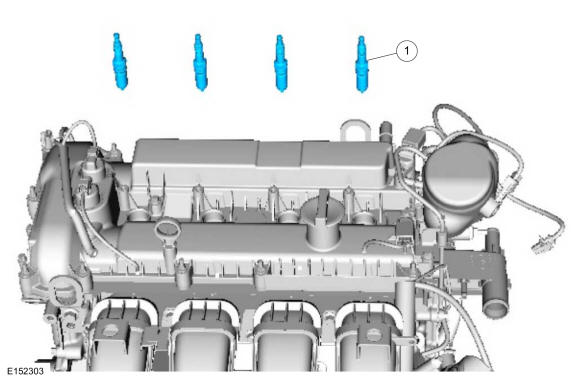

Spark Plugs 2.0L Gasoline Direct Injection (GDI)

GFD571231

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Spark plug (4 required)
