Pinpoint Tests TA: Clutch Pedal Position (CPP) Switch: Introduction
This pinpoint test is intended to diagnose the following:
- CPP sensor
- CPP switch (11A152/7C534)
- harness circuits: CPP, CPP-BT, GND, SIGRTN, and VREF
- PCM (12A650)

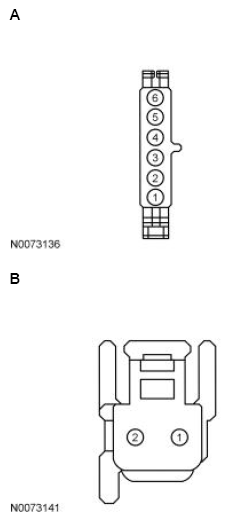

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Mustang 5.0L | A | 1 | CPP2 |
| 3 | CPP1 | ||
| 4 | SIGRTN | ||
| 2 | |||
| VREF | |||
| Transit Connect | B | 1 | CPP2 |
| 3 | CPP1 | ||
| 4 | SIGRTN | ||
| 2 | |||
| VREF |

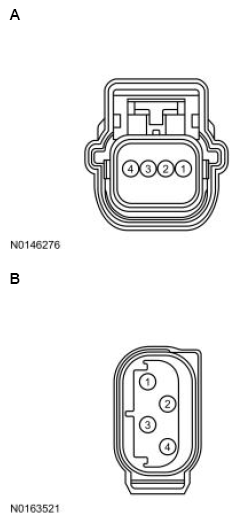

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-Series Super Duty | A | 2 | GND |
| 1 | CPP-BT | ||
| All other vehicles | B | 2 | GND |
| 1 | CPP-BT |
Powertrain Control Module (PCM) Connector
For PCM connector views or Reference values, Refer to REFERENCE VALUES .
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| EcoSport 1.0L | 198 PIN | B30 | CPP-BT |
| F-Series Super Duty | 306 PIN | B65 | CPP-BT |
| KA 1.0L | 128 PIN | B15 | CPP-BT |
| Mustang 2.3L | 198 PIN | B7 | CPP-BT |
| Mustang 5.0L | 306 PIN | T55 T40 | CPP2 CPP1 |
| Mustang 5.2L | 198 PIN | B9 | CPP-BT |
| Ranger | 128 PIN | E14 | CPP-BT |
| Transit Connect | 198 PIN | B5 B6 | CPP2 CPP1 |
| All other vehicles | 112 PIN | B47 | CPP-BT |
