Pinpoint Tests KN: Variable Speed Electric Cooling Fan Motor: Introduction
This pinpoint test is intended to diagnose the following:
- cooling fan (CF) module (8B658)
- cooling fan assembly (8C607)
- harness circuits: FCV, FANPWR and GND
- PCM (12A650)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
| 20 |
FANPWR (Fan Power) |
Courtesy of FORD MOTOR CO.
| Vehicle |
Connector |
Pin |
Circuit |
| Bronco Sport |
A |
20 3 |
FANPWR GND |
| Expedition High Output, |
A |
26 |
FANPWR |
| Navigator |
|
2 |
FANPWR |
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
| 10, 6 |
GND (Ground) |
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
| 4 |
FCV (Fan Control Variable) |
| 2 |
GND (Ground) |
| 1 |
FANPWR (Fan Power) |
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
| 1 |
GND (Ground) |
| 2 |
FANPWR (Fan Power) |
Courtesy of FORD MOTOR CO.

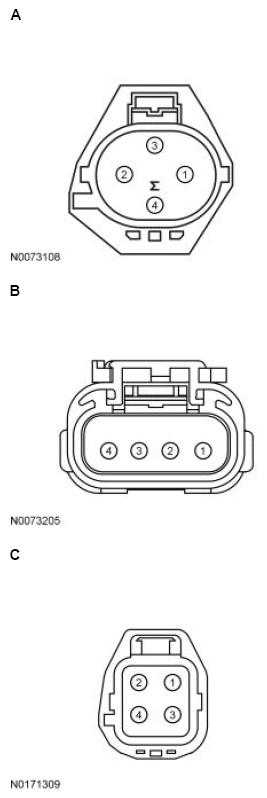

| Vehicle |
Connector |
Pin |
Circuit |
| Aviator, |
A |
4 |
FCV |
| Bronco Sport, |
|
2 |
GND |
| Corsair, |
|
1 |
FANPWR |
| Escape/Kuga, |
|
|
|
| Explorer, |
|
|
|
| F-150 Hybrid Electric Vehicle, |
|
|
|
| Ford GT, |
|
|
|
| Transit Connect |
|
|
|
| Edge 3 Pin Cooling Fan Motor, |
B |
4 |
FCV |
| Nautilus 3 Pin Cooling Fan Motor |
1 |
GND |
| 2 |
FANPWR |
| Expedition 3 Pin Cooling Fan Motor, |
C |
2 |
FCV |
| 1 |
GND |
| F-150, |
3 |
FANPWR |
| Navigator 3 Pin Cooling Fan Motor |
|
|
Courtesy of FORD MOTOR CO.

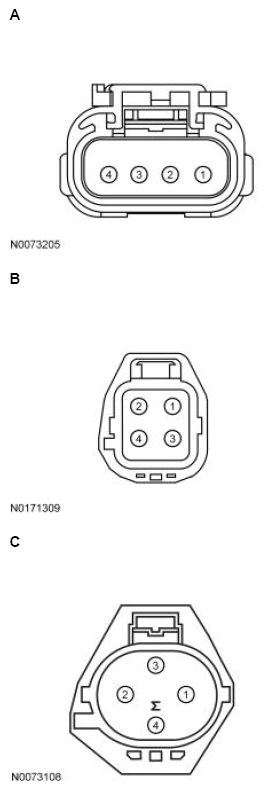

| Vehicle |
Connector |
Pin |
Circuit |
| Edge 3 Pin Cooling Fan Motor, |
A |
4 |
FCV |
| Nautilus 3 Pin Cooling Fan Motor, |
|
1 |
GND |
| Navigator 3 Pin Cooling Fan Motor |
|
2 |
FANPWR |
| Expedition 3 Pin Cooling Fan Motor, |
B |
2 1 |
FCV GND |
| F-150 |
3 |
FANPWR |
| F-150 Hybrid Electric Vehicle, |
C |
4 |
FCV |
| Ford GT |
2 |
GND |
| 1 |
FANPWR |
Courtesy of FORD MOTOR CO.

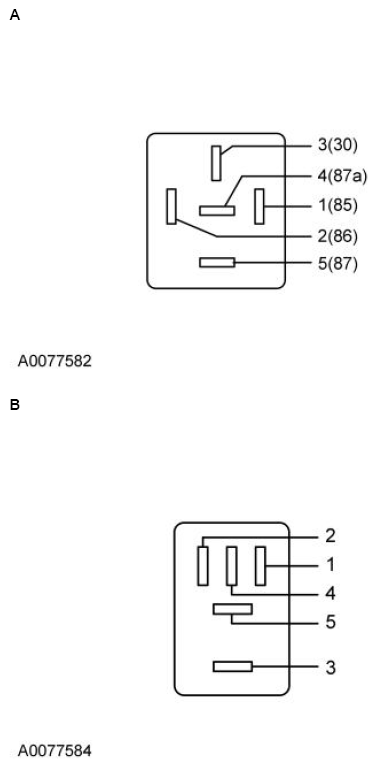

| Vehicle |
Connector |
Pin |
Circuit |
| Aviator, |
A |
4 |
FANPWR |
| Explorer |
2 |
|
| |
GND |
| 3 |
|
| |
VPWR |
| 1 |
|
| |
B+ |
| Corsair, |
A |
5 |
FANPWR |
| Edge, |
2 |
|
| |
GND |
| Escape/Kuga, |
1 |
|
| |
VPWR |
| Ford GT, |
3 |
|
| |
B+ |
| Nautilus |
|
|
| F-150 3.5L Hybrid Electric Vehicle, |
B |
5 |
FANPWR |
| 2 |
|
| Transit |
|
GND |
| 1 |
|
| |
VPWR |
| 3 |
|
| |
B+ |
| F-150 |
B |
87 |
FANPWR |
| 85 |
|
| |
GND |
| 86 |
|
| |
VPWR |
| 30 |
|
| |
B+ |
Courtesy of FORD MOTOR CO.

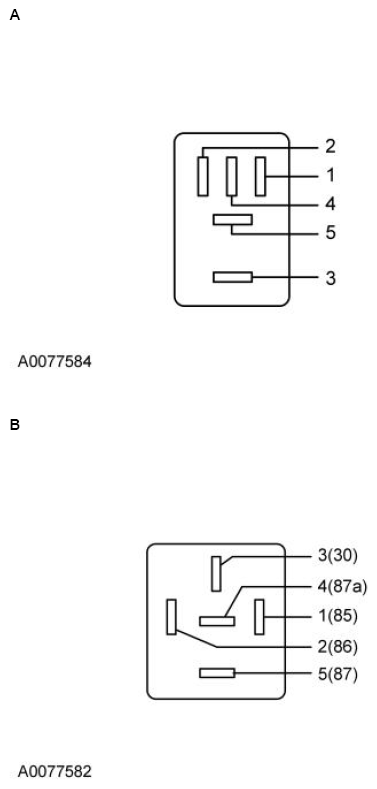

| Vehicle |
Connector |
Pin |
Circuit |
| F-150 |
A |
87 |
FANPWR |
| 85 |
| |
GND |
| 86 |
VPWR |
| 30 |
|
| |
B+ |
| F-150 3.5L Hybrid Electric Vehicle |
A |
5 |
FANPWR |
| 2 |
|
| |
GND |
| 1 |
|
| |
VPWR |
| 3 |
|
| |
B+ |
| Ford GT |
B |
5 |
FANPWR |
| 2 |
|
| |
GND |
| 1 |
|
| |
VPWR |
| 3 |
|
| |
B+ |
Courtesy of FORD MOTOR CO.
| Vehicle |
Connector |
Pin |
Circuit |
| Edge |
A |
3 |
FANPWR |
| 1 |
|
| |
GND |
| 2 |
|
| |
VPWR |
| 5 |
|
| |
B+ |
| Nautilus |
A |
3 |
FANPWR |
| 2 |
|
| |
GND |
| 1 |
|
| |
VPWR |
| 5 |
|
| |
B+ |
Powertrain Control Module (PCM) Connector
For PCM connector views or Reference values, Refer to
REFERENCE VALUES
.
| Vehicle |
Connector |
Pin |
Circuit |
| Aviator, |
306 PIN |
B59 |
FCV |
| Explorer 3.0L, |
| Explorer 3.3L, |
| Transit |
| Bronco Sport 2.0L |
198 PIN |
B42 |
FCV |
| Corsair 2.5L, |
198 PIN |
B66 |
FCV |
| Escape/Kuga 2.5L |
|
|
|
| Expedition, |
198 PIN |
B41 |
FCV |
| Navigator |
|
|
|
| F-150 |
306 PIN |
B75 |
FCV |
| Ford GT |
198 PIN |
B83 |
FCV |
| Transit Connect 1.0L, |
198 PIN |
B43 |
FCV |
| Transit Connect 2.0L |
|
|
|
| Transit Connect 2.5L |
198 PIN |
B66 |
FCV |
| All other vehicles |
198 PIN |
B43 |
FCV |
