Pinpoint Tests HX: Evaporative Emission (EVAP) System And Monitor: Introduction
WARNING:
BEFORE REPAIRING OR INSTALLING A NEW COMPONENT IN THE FUEL SYSTEM, REDUCE THE POSSIBILITY OF INJURY OR FIRE BY FOLLOWING THE WARNING, CAUTION, AND HANDLING DIRECTIONS IN PINPOINT TEST HC. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
WARNING:
WHEN HANDLING FUEL, ALWAYS OBSERVE FUEL HANDLING PRECAUTIONS AND BE PREPARED IN THE EVENT OF FUEL SPILLAGE. SPILLED FUEL MAY BE IGNITED BY HOT VEHICLE COMPONENTS OR OTHER IGNITION SOURCES. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY.
NOTE:
Do not apply smoke to the EVAP leak detection control module. Internal module damage may result.
NOTE:
Use this pinpoint test only when directed here.
Using a soap solution around the fuel filler cap or capless fuel tank filler pipe (if equipped) or using the hydrocarbon emission analyzer to determine an evaporative emission system leak is not recommended.
When using the Evaporative Emission Leak Detector With On Board Nitrogen Generator 218-522C or equivalent, the fuel level in the fuel tank must be less than 85% full.
This pinpoint test is intended to diagnose the following:
- EVAP canister vent valve (9F945)
- fuel filler cap (9030)
- capless fuel tank filler pipe (9034)
- fuel tank pressure (FTP) sensor (9C052)
- EVAP purge valve (9C915)
- EVAP check valve
- EVAP ejector
- EVAP vapor blocking valve
- Evaporative Emission (EVAP) leak detection control module
- fuel tank isolation valve
- EVAP system leaks using the Evaporative Emission Leak Detector With On Board Nitrogen Generator 218-522C or equivalent
- harness circuits: B+, CANV, EVAPCP, EVAPLDP, EVAPLDPPR, EVAPLDPSV, FTIV, FTP, SIGRTN,
VBV, VPWR and VREF
- PCM (12A650)
For additional information on the EVAP system, Refer to EVAPORATIVE EMISSION (EVAP) SYSTEMS , or the appropriate Evaporative Emissions article.
For applications using the engine off natural vacuum (EONV) EVAP leak check monitor, KAPWR provides voltage to the EVAP canister vent valve instead of VPWR.
| Pin | Circuit |
|---|---|
| 2 | CANV (Canister Vent) |
| 1 | KAPWR (Keep Alive Memory Power) |

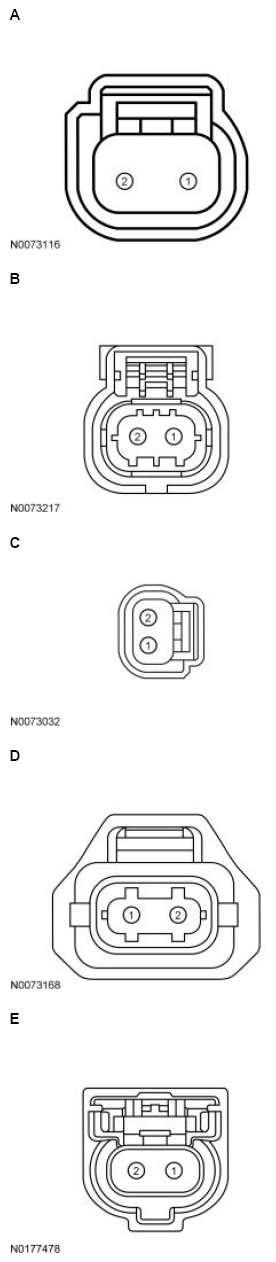

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Aviator, Continental, Edge, KA, Mustang 2.3L, Mustang TiVCT 5.2L, Nautilus, Ranger 2.5L, Transit | A | 1 2 |
EVAPCP VPWR |
| Bronco Sport, Corsair 2.0L, Corsair 2.3L, Escape/Kuga 1.5L, Escape/Kuga 2.0L | B | 1 2 |
EVAPCP VPWR |
| F-Series Super Duty 6.2L, Transit Connect 2.5L | C | 1 2 |
EVAPCP VPWR |
| Transit Connect 1.0L, Transit Connect 2.0L | D | 1 2 |
EVAPCP VPWR |
| All other vehicles | E | 1 2 |
EVAPCP VPWR |
| Pin | Circuit |
|---|---|
| 2 | VPWR (Vehicle Power) |
| 1 | VBV (Vapor Blocking Valve) |
| Pin | Circuit |
|---|---|
| 2 | VPWR (Vehicle Power) |
| 1 | FTIV (Fuel Tank Isolation Valve) |

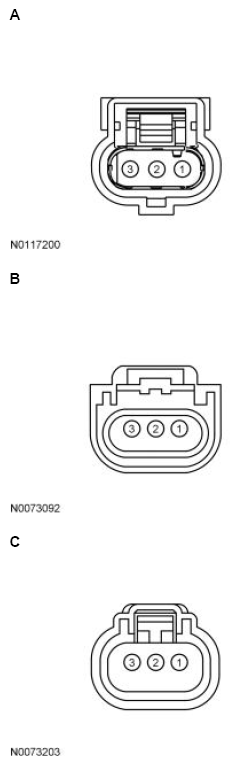

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Corsair, Escape/Kuga 2.5L, F-150 3.5L Hybrid Electric Vehicle, Ford GT | A | 1 2 3 |
FTP SIGRTN VREF |
| E-Series, F-650/F-750, F-Series Super Duty, Motorhome/Stripped Chassis/Step Van, Ranger, Transit GTDI 3.5L | B | 1 2 3 |
FTP SIGRTN VREF |
| All other vehicles | C | 1 2 3 |
FTP SIGRTN VREF |
| Pin | Circuit |
|---|---|
| 4 | EVAPLDPSV (EVAP Leak Detection Pump Switching Valve) |
| 6 | EVAPLDPPR (EVAP Leak Detection Pump Pressure) |
| 1 | EVAPLDP (EVAP Leak Detection Pump) |
| 5 | SIGRTN (Signal Return) |
| 7 | VREF (Reference Voltage) |
| 2, 8 | VPWR (Vehicle Power) |
Powertrain Control Module (PCM) Connector
For PCM connector views or Reference values, Refer to REFERENCE VALUES .
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Aviator | 306 PIN | B34 T11 B64 B45 B34 B57 E46 |
EVAPLDPSV EVAPLDPPR EVAPLDP FTIV CANV FTP EVAPCP |
| Continental | 198 PIN | B20 B73 B22 |
CANV FTP EVAPCP |
| Corsair 2.0L, Corsair 2.3L, Mustang 2.3L, Transit Connect 1.0L | 198 PIN | B22 B24 B1 |
CANV FTP EVAPCP |
| Corsair 2.5L, Escape/Kuga 2.5L | 198 PIN | B67 B11 E16 E2 B46 E14 |
EVAPLDPSV EVAPLDPPR EVAPLDP FTIV FTP EVAPCP |
| E-Series, F-650/F-750, Motorhome/Stripped Chassis/Step Van, Mustang 5.0L, Mustang 5.2L Supercharged, Transit | 306 PIN | B34 B57 E46 |
CANV FTP EVAPCP |
| EcoSport 1.0L | 198 PIN | B60 B20 B73 B22 |
VBV CANV FTP EVAPCP |
| EcoSport 1.5L Automatic Transmission, KA 1.5L Automatic Transmission |
198 PIN | E14 | EVAPCP |
| EcoSport 1.5L Manual Transmission, KA 1.2L, KA 1.5L Manual Transmission |
112 PIN | E27 | EVAPCP |
| EcoSport 2.0L | 198 PIN | B40 B20 B73 B22 |
VBV CANV FTP EVAPCP |
| Edge 2.0L | 198 PIN | B80 B22 B46 B1 |
VBV CANV FTP EVAPCP |
| Edge 2.7L, Expedition Base, Explorer 3.3L, F-Series Super Duty, Nautilus 2.7L, Navigator Base | 306 PIN | B48 B34 B57 E46 |
VBV CANV FTP EVAPCP |
| Expedition High Output, Navigator High Output | 198 PIN | B40 B20 B73 E59 |
VBV CANV FTP EVAPCP |
| Explorer 3.0L | 306 PIN | B34 T11 B64 B45 B48 B34 B57 E46 |
EVAPLDPSV EVAPLDPPR EVAPLDP FTIV VBV CANV FTP EVAPCP |
| F-150 2.7L, F-150 3.3L, F-150 5.0L | 306 PIN | B13 B29 B54 E80 |
VBV CANV FTP EVAPCP |
| F-150 3.5L | 306 PIN | B29 T13 B12 B13 B13 B29 B54 E80 |
EVAPLDPSV EVAPLDPPR EVAPLDP FTIV VBV CANV FTP EVAPCP |
| Ford GT | 198 PIN | B20 B73 B3 |
CANV FTP EVAPCP |
| KA 1.0L | 128 PIN | E43 | EVAPCP |
| Mustang TiVCT 5.2L | 198 PIN | B39 B46 E71 |
CANV FTP EVAPCP |
| Nautilus 2.0L | 198 PIN | B80 B22 B24 B1 |
VBV CANV FTP EVAPCP |
| Ranger 2.5L | 128 PIN | B22 E12 |
CANV EVAPCP |
| Transit Connect 2.5L | 198 PIN | B39 B46 E14 |
CANV FTP EVAPCP |
| All other vehicles | 198 PIN | B3 B22 B24 B1 |
VBV CANV FTP EVAPCP |
