Pinpoint Tests DM: Manifold Pressure Sensors: Introduction

This pinpoint test is intended to diagnose the following:

manifold absolute pressure (MAP) sensor (9F479)
manifold absolute pressure (MAP)/intake air temperature 2 sensor (IAT2) sensor (9F479)
manifold absolute pressure and temperature (MAPT) sensor (9F479)
turbocharger boost pressure (TCBP) sensor (9F479)
turbocharger boost pressure (TCBP)/charge air cooler temperature (CACT) sensor (9F479)
turbocharger inlet pressure and temperature (TCIPT) sensor (9F479)
harness circuits: MAP, TCBP, TCIP, SIGRTN, and VREF
PCM (12A650)

Fig 1: Manifold Absolute Pressure (MAP) Sensor Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
1	MAP (Manifold Absolute Pressure)
2	VREF (Reference Voltage)

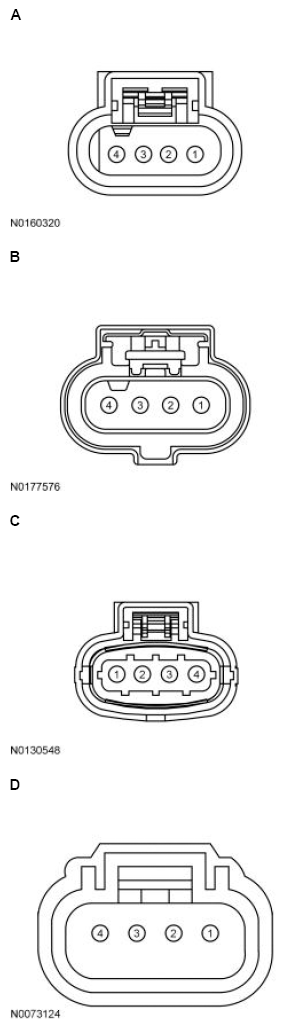

Fig 2: Manifold Absolute Pressure/Intake Air Temperature 2 (MAP/IAT2) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Aviator, Explorer 3.0L	A	3 4 2	MAP SIGRTN VREF
Bronco Sport, F-150	B	1 4 2	MAP SIGRTN VREF
Continental, EcoSport, Mustang 2.3L	C	4 1 3	MAP SIGRTN VREF
Edge 2.7L, Nautilus 2.7L, Transit	D	3 4 2	MAP SIGRTN VREF
Edge 2.0L, Expedition Base, Nautilus 2.0L	C	1 4 2	MAP SIGRTN VREF
Expedition High Output, Navigator	C	3 4 2	MAP SIGRTN VREF
Mustang 5.2L	A	4 3 2	MAP SIGRTN VREF
All other vehicles	A	1 4 2	MAP SIGRTN VREF

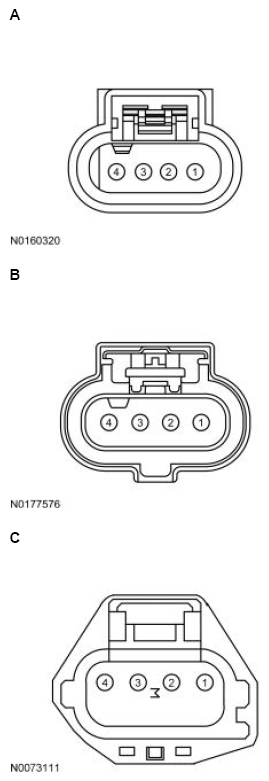

Fig 3: Manifold Absolute Pressure Temperature (MAPT) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Continental, EcoSport 1.5L, Edge, Explorer 3.3L, KA, Nautilus, Nautilus,	A	4 1 2	SIGRTN MAP VREF
Transit Connect 1.0L
Corsair 2.5L, Escape/Kuga 2.5L, F-150 3.3L, F-150 5.0L, F-Series Super Duty 6.2L	B	4 1 2	SIGRTN MAP VREF
Ranger 2.5L	C	4 1 2	SIGRTN MAP VREF
Transit TiVCT 3.5L	A	4 3 2	SIGRTN MAP VREF

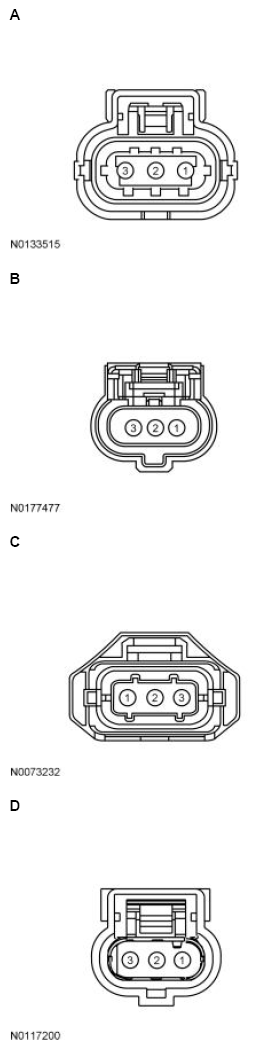

Fig 4: Turbocharger Boost Pressure (TCBP) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Continental 2.0L, EcoSport, Mustang, Transit Connect	A	1 2 3	TCBP SIGRTN VREF
Bronco Sport, Corsair, Escape/Kuga 2.0L, Ranger 2.3L	B	1 2 3	TCBP SIGRTN VREF
Edge 2.0L, Nautilus 2.0L	C	3 2 1	TCBP SIGRTN VREF
Escape/Kuga 1.5L	B	1	TCBP
		3 2	SIGRTN VREF
Explorer 2.3L	D	1 2 3	TCBP SIGRTN VREF

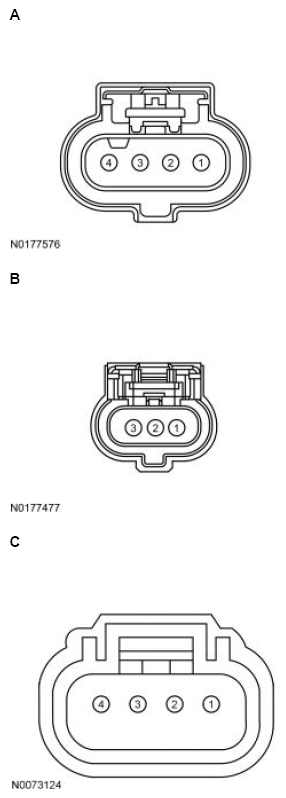

Fig 5: Turbocharger Boost Pressure/Charge Air Cooler Temperature (TCBP/CACT) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Aviator, Explorer	A	1 4 2	TCBP SIGRTN VREF
F-150	B	1 2 3	TCBP SIGRTN VREF
All other vehicles	C	1 4 2	TCBP SIGRTN VREF

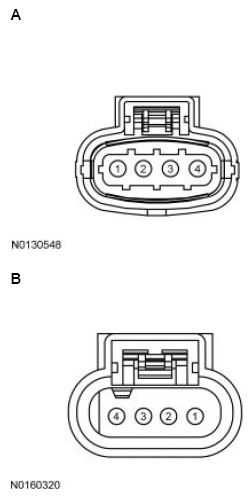

Fig 6: Turbocharger Intake Pressure And Temperature (TCIPT) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Ford GT	A	4 1 3	TCIP SIGRTN VREF
Mustang 5.2L	B	1 4 2	TCIP SIGRTN VREF

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES .

Vehicle	Connector	Pin	Circuit
Aviator, Explorer 3.0L	306 PIN	B26 E94 E13 E52	SIGRTN TCBP SIGRTN MAP
Bronco Sport	198 PIN	B4 B17 E41	SIGRTN TCBP SIGRTN
Continental, EcoSport 1.0L Automatic Transmission	198 PIN	B18 B74	SIGRTN TCBP
		E20 E33	SIGRTN MAP
Corsair 2.5L, Escape/Kuga 2.5L	198 PIN	E77 E32	SIGRTN MAP
EcoSport 1.0L Manual Transmission	198 PIN	B19 B74 E19 E35	SIGRTN TCBP SIGRTN MAP
EcoSport 1.5L Automatic Transmission	198 PIN	E35 E32	SIGRTN MAP
EcoSport 1.5L Manual Transmission	112 PIN	E4 E16	SIGRTN MAP
Edge 2.0L, Escape/Kuga 1.5L	198 PIN	B4 B17 E41 E53	SIGRTN TCBP SIGRTN MAP
Edge 2.7L	306 PIN	B26 E10 E13 E52	SIGRTN TCBP SIGRTN MAP
Expedition High Output, Navigator High Output	198 PIN	B30 B74 E10 E17	SIGRTN TCBP SIGRTN MAP
Expedition Base,	306 PIN	E112	SIGRTN
Navigator Base		E94 E13 E50	TCBP SIGRTN MAP
Explorer 3.3L	306 PIN	E13 E50	SIGRTN MAP
F-150 2.7L, F-150 3.5L	306 PIN	B21 B5 E89 E49	SIGRTN TCBP SIGRTN MAP
F-150 3.3L, F-150 5.0L	306 PIN	E89 E49	SIGRTN MAP
F-Series Super Duty	306 PIN	E13 E50	SIGRTN MAP
Ford GT	198 PIN	B18 B70 E20 B74 E20	SIGRTN TCIP SIGRTN TCBP SIGRTN
KA 1.0L	128 PIN	T17 T9	SIGRTN MAP
KA 1.2L, KA 1.5L Manual Transmission	112 PIN	E4 E16	SIGRTN MAP
KA 1.5L Automatic Transmission	198 PIN	E35 E32	SIGRTN MAP
Mustang 5.2L	306 PIN	E13 E50	SIGRTN
		E28 E121	TCIP SIGRTN MAP
Nautilus 2.0L	198 PIN	B4 B17 E20 E53 E41	SIGRTN TCBP SIGRTN MAP SIGRTN
Nautilus 2.7L	306 PIN	B18 B26 E20 E52 E13	SIGRTN TCBP SIGRTN MAP SIGRTN
Ranger 2.5L	128 PIN	B38 B26	SIGRTN MAP
Transit GTDI 3.5L	306 PIN	B26 B94 E13 E52	SIGRTN TCBP SIGRTN MAP
Transit TiVCT 3.5L	306 PIN	E13 E52	SIGRTN MAP
Transit Connect 1.0L	198 PIN	B4 B17 E41 E52	SIGRTN TCBP SIGRTN MAP
Transit Connect 2.0L	198 PIN	E41	SIGRTN
		E53	MAP
Transit Connect 2.5L	198 PIN	B35 E32	SIGRTN MAP
All other vehicles	198 PIN	B36 B17 E41 E53	SIGRTN TCBP SIGRTN MAP
