Pinpoint Tests A: No Start: Introduction
WARNING:
STOP THIS TEST AT THE FIRST SIGN OF A FUEL LEAK AND REPAIR AS REQUIRED. NO OPEN FLAME. NO SMOKING DURING FUEL DELIVERY CHECKS. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
This pinpoint test is intended to diagnose the following:
- spark (as related to electronic engine control)
- PCM (12A650)

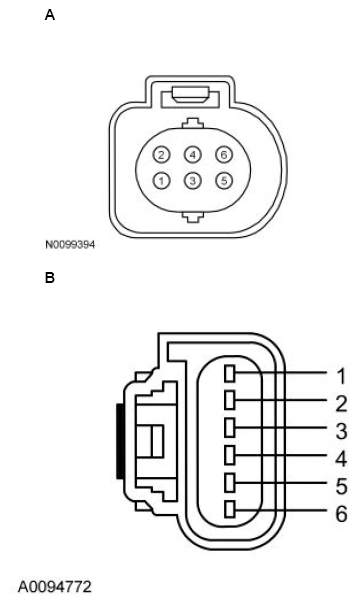

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Bronco Sport 1.5L, EcoSport 1.5L, EcoSport 1.0L, Escape/Kuga 1.5L, KA, Transit Connect 1.0L | A | 3 1 |
ETCRTN ETCREF |
| All other vehicles | B | 4 5 |
ETCRTN ETCREF |
