Fuel Tank Isolation Valve (FTIV)
>>

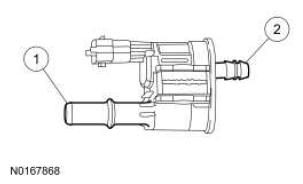

Typical Fuel Tank Isolation Valve (FTIV)
Typical Fuel Tank Isolation Valve (FTIV)
Courtesy of FORD MOTOR CO.
Item
Number
Description
1
-
To Fuel Tank
2
-
To EVAP Canister
Courtesy of FORD MOTOR CO.
