Fuel Charging and Controls - Component Location
>>
Throttle Body (TB) 2.0L Gasoline Direct Injection (GDI)

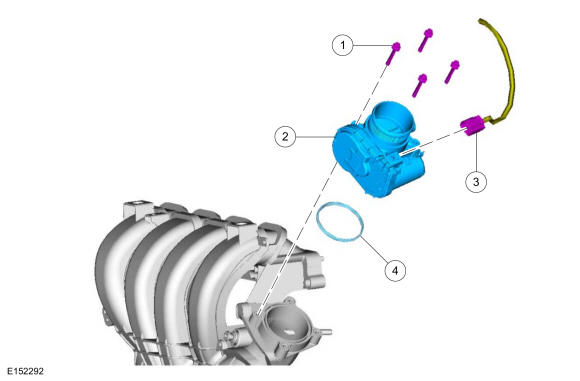

Throttle Body (TB) 2.0L Gasoline Direct Injection (GDI)
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Throttle Body (TB) bolt (4 required)
2
Throttle Body (TB)
3
Throttle Body (TB) electrical connector
4
Throttle Body (TB) gasket
