Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the valve cover. Refer to: Valve Cover .

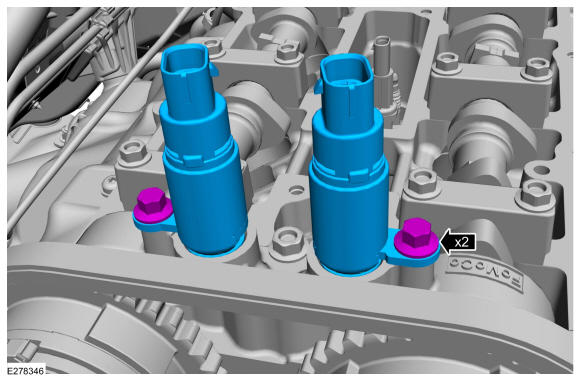

2. Remove the bolts and the VCT oil control solenoids.

   Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
