Clutch Pedal Position (CPP) Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

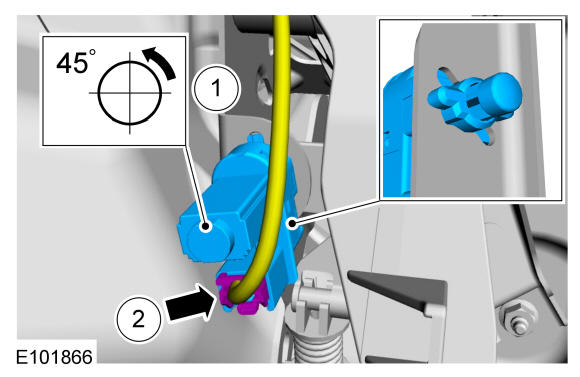

  1. NOTE: Make sure that the clutch pedal remains in the rest position.

    Disconnect the electrical connector and remove CPP switch from the bracket.

GFD571288Courtesy of FORD MOTOR COMPANY
