Engine - 2.0L DURATEC-He (110KW/150PS) - Mi4: Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	307-566 Retainer, Torque Converter TKIT-2006C-FFMFLM TKIT-2006C-LM TKIT-2006C-ROW
Magnetic Socket
Floor Crane
Adjustable Mounting Arm
Oil Drain Equipment
Cable Ties
Hose Clamp Remover/Installer
Powertrain Jack
Wooden Block

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
3. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
4. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
5. Remove the following items:
   1. Remove the cowl panel. Refer to: Cowl Panel .
   2. Remove the degas bottle. Refer to: Degas Bottle .
   3. Remove the battery tray. Refer to: Battery Tray - 2.0L Duratec-HE (110kW/150PS) - MI4 .
   4. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
   5. Remove the LH fender splash shield. Refer to: Fender Splash Shield .
   6. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
   7. Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .

6. Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

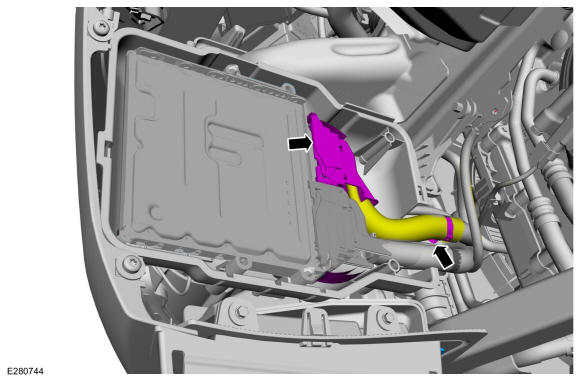

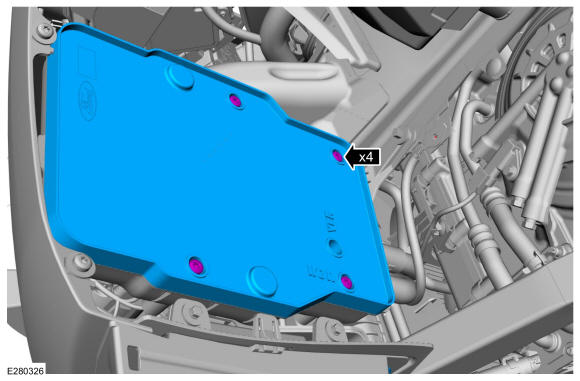

7. Remove the retainers and the PCM cover.

   Courtesy of FORD MOTOR COMPANY

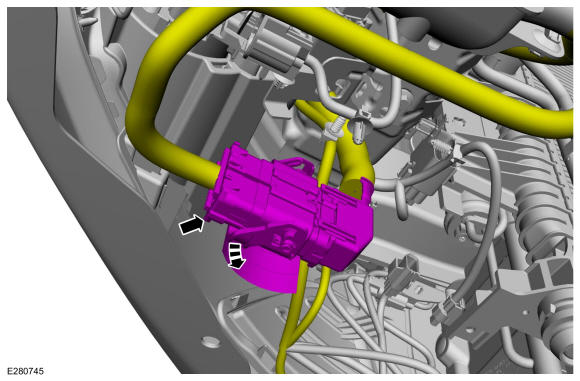

8. Disconnect the PCM electrical connector.

   Courtesy of FORD MOTOR COMPANY

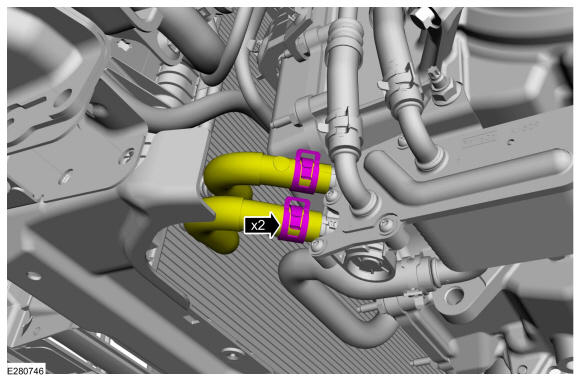

9. NOTE: Be prepared to collect escaping fluid.

   Release the clamps and detach the hoses.

   Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

10. Remove the LH front halfshaft. Refer to: Front Halfshaft LH .
11. Remove the RH front halfshaft. Refer to: Front Halfshaft RH .

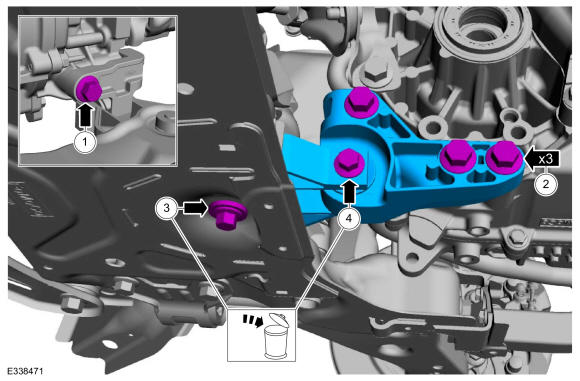

12. 1. Remove the rear roll restrictor bracket bolt.
    2. Remove the engine roll restrictor bracket bolts.
    3. Remove and discard the engine roll restrictor bolt.
    4. Remove and discard the bolt and remove the engine roll restrictor and bracket.

    Courtesy of FORD MOTOR COMPANY

13. Remove the nuts and catalytic converter bracket.

    Courtesy of FORD MOTOR COMPANY

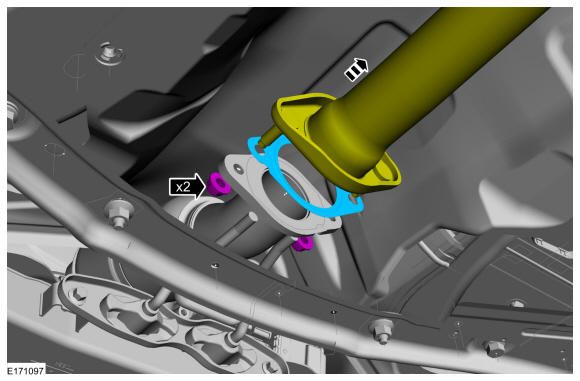

14. • Remove and discard the nuts.
    • Position aside the muffler and tailpipe and discard the gasket.
    • Make sure that the mating faces are clean and free of foreign material.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: Make sure that all openings are sealed with clean blanking caps.

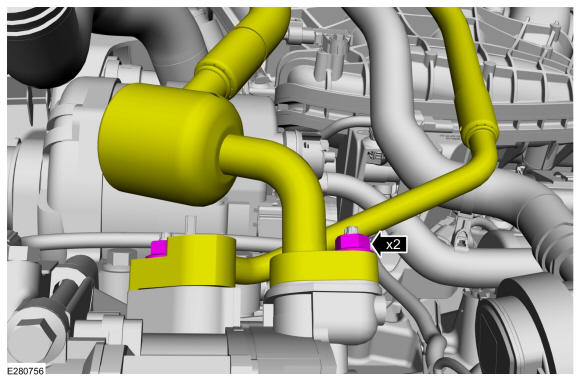

    • Remove the A/C compressor inlet line nut and position aside line.
    • Remove the A/C compressor outlet line nut and position aside line.

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Be prepared to collect escaping fluid.

    Release the clamps and detach the radiator lower hose.

    Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

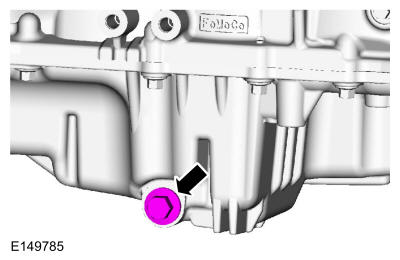

17. NOTE: The oil drain plug with O-ring seal is to be reused unless damaged.

    Drain and install the drain plug.

    Use the General Equipment: Oil Drain Equipment

    Torque: 20 lb.ft (27 Nm)

    Courtesy of FORD MOTOR COMPANY

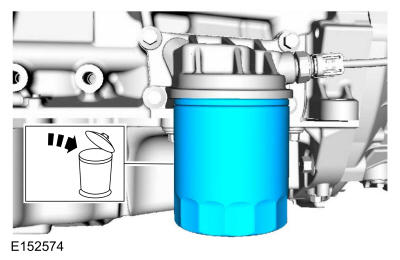

18. Remove and discard the engine oil filter.

    Courtesy of FORD MOTOR COMPANY

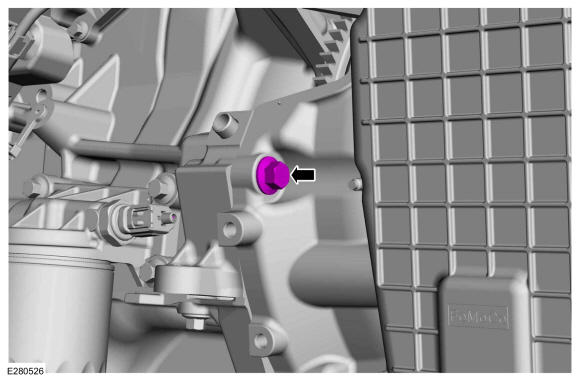

19. Remove the bell housing bolt.

    Courtesy of FORD MOTOR COMPANY

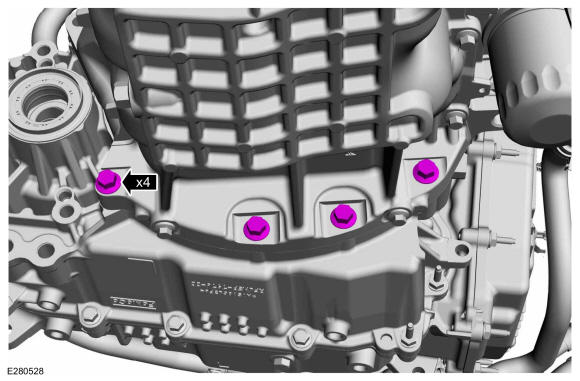

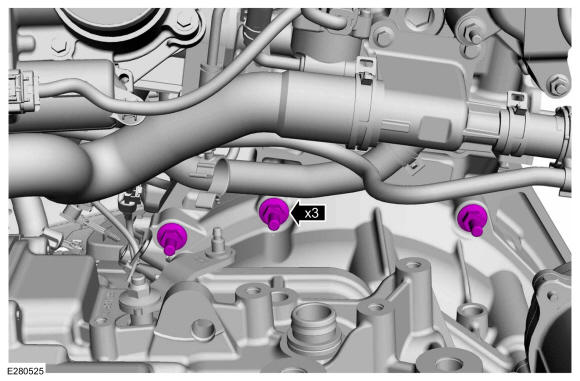

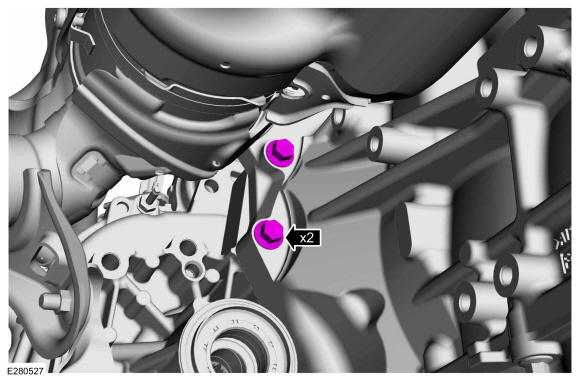

20. Remove the bell housing bolts.

    Courtesy of FORD MOTOR COMPANY

21. Remove the bell housing bolts.

    Courtesy of FORD MOTOR COMPANY

22. • Disconnect the electrical connector, disconnect the wiring retainers and position aside the wiring harness.
    • Remove the nuts and the battery tray bracket.

    Courtesy of FORD MOTOR COMPANY

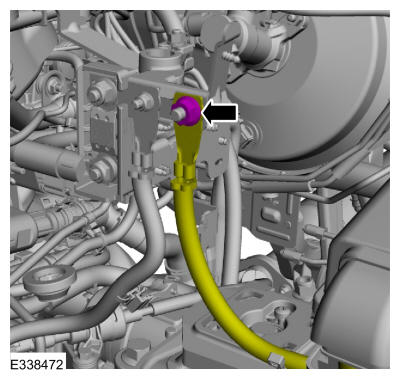

23. Remove the nut and position the battery feed cable from the positive battery cable.

    Courtesy of FORD MOTOR COMPANY

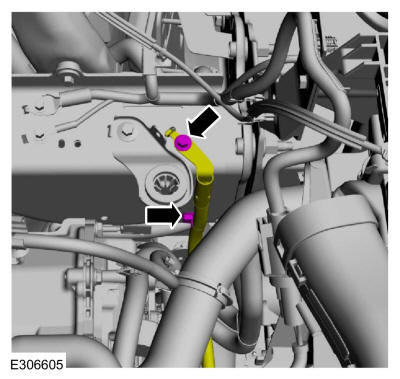

24. Remove the bolt, detach retainer and position the ground wire aside.

    Courtesy of FORD MOTOR COMPANY

25. Detach the retainers from the bracket and disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

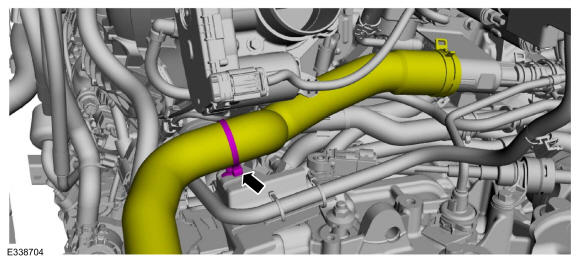

26. Detach the upper radiator hose retainer from the transmission bracket.

    Courtesy of FORD MOTOR COMPANY

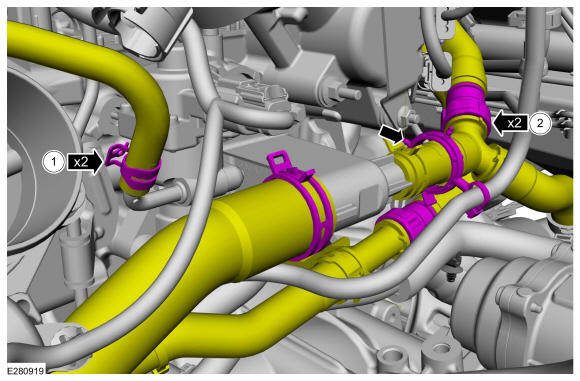

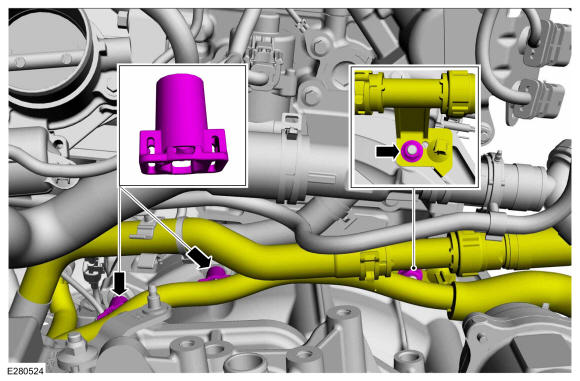

27. 1. Release and detach the coolant hoses from the coolant outlet connector.

       Use the General Equipment: Hose Clamp Remover/Installer

    2. Release the quick release couplings, detach the coolant hoses from the coolant outlet connector. Refer to: Quick Release Coupling .
    • Detach the retainer from the coolant hose.

    Courtesy of FORD MOTOR COMPANY

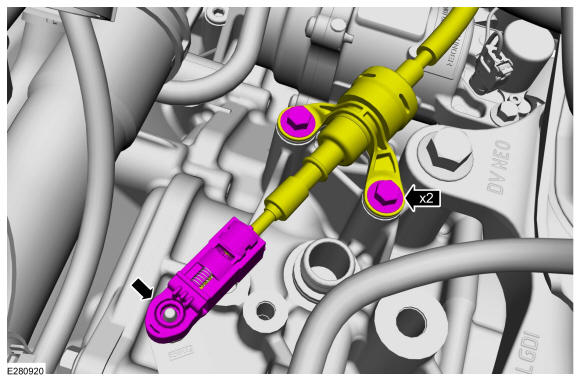

28. Remove the bolts and disconnect the transmission shift cable. Position aside the transmission shift cable.

    Courtesy of FORD MOTOR COMPANY

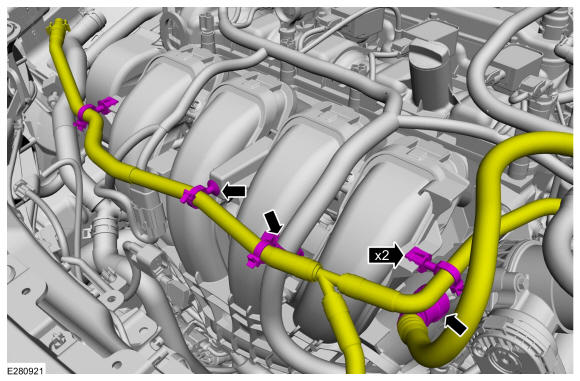

29. • Remove the retainers and detach the degas line from the intake manifold.
    • Disconnect the vacuum line from the intake manifold. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

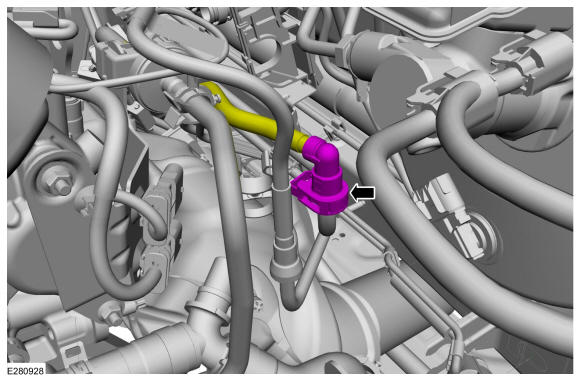

30. Disconnect the high pressure fuel line. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

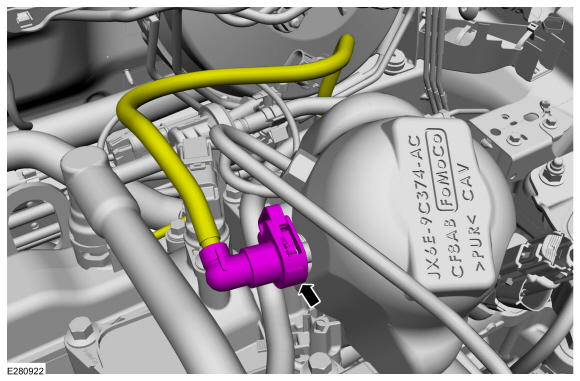

31. Disconnect the EVAP line. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

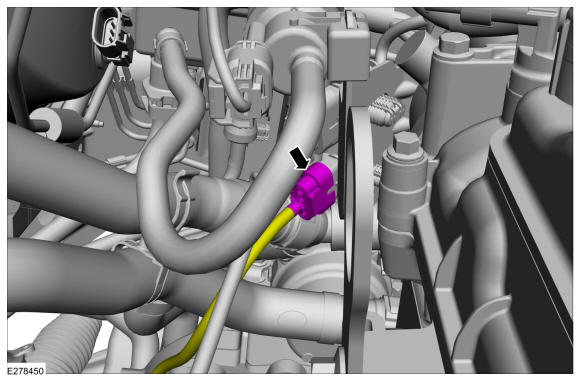

32. Disconnect the HO2S (heated oxygen sensor) electrical connector.

    Courtesy of FORD MOTOR COMPANY

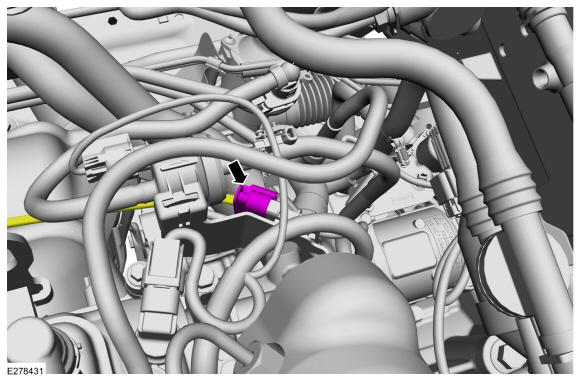

33. Disconnect the catalyst monitor sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

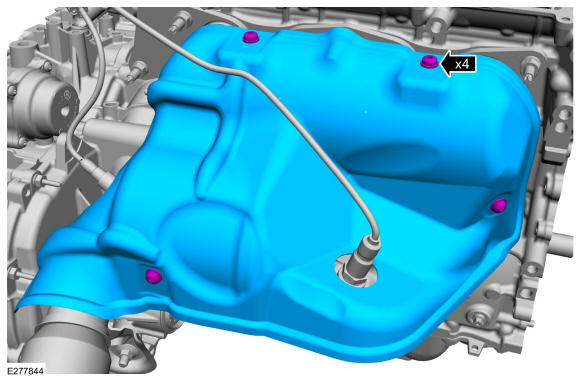

34. Remove the bolts and the catalytic converter heat shield.

    Courtesy of FORD MOTOR COMPANY

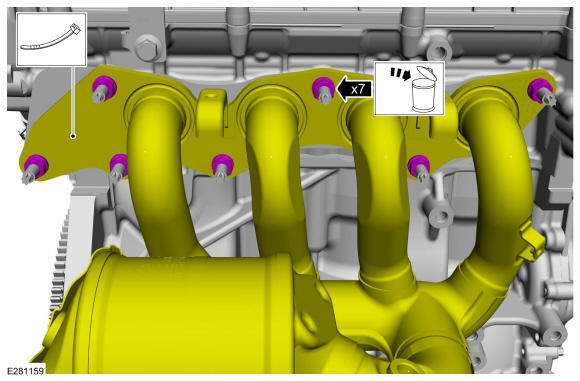

35. Remove and discard the nuts. Position back the catalytic converter.

    Use the General Equipment: Cable Ties

    Courtesy of FORD MOTOR COMPANY

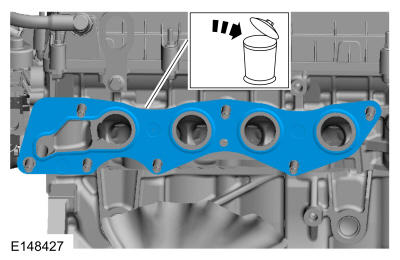

36. Remove and discard the catalytic converter gasket.

    Courtesy of FORD MOTOR COMPANY

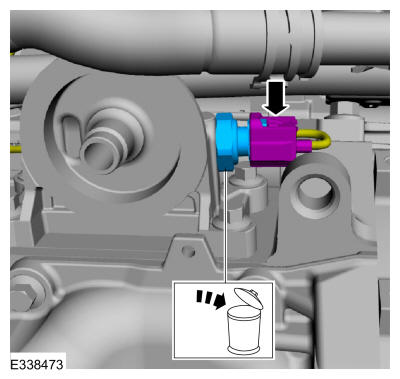

37. • Disconnect the oil pressure switch electrical connector.
    • Remove and discard the oil pressure switch.

    Courtesy of FORD MOTOR COMPANY

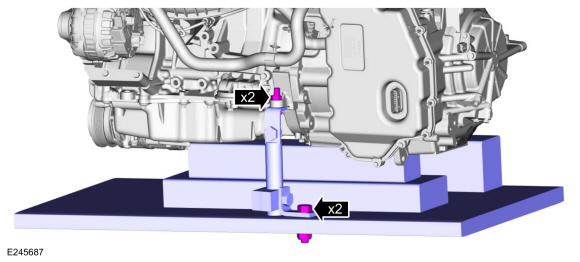

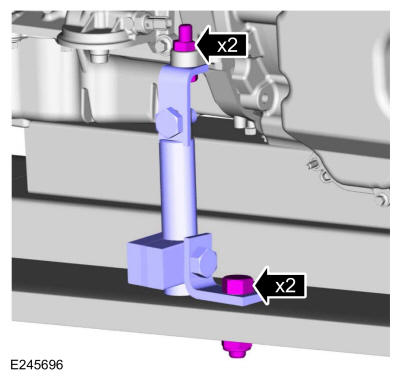

38. • Position the powertrain jack and boards under the engine and transmission. Use the General Equipment: Powertrain Jack. Use the General Equipment: Wooden Block
    • Install adjustable mounting arm.

      Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

39. • Remove and discard the engine mount nuts.
    • Remove and discard the bolts and remove the engine mount.

    Courtesy of FORD MOTOR COMPANY

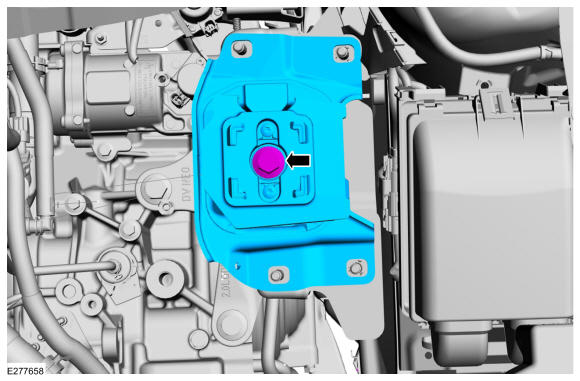

40. Remove the bolt and the transmission support insulator.

    Courtesy of FORD MOTOR COMPANY

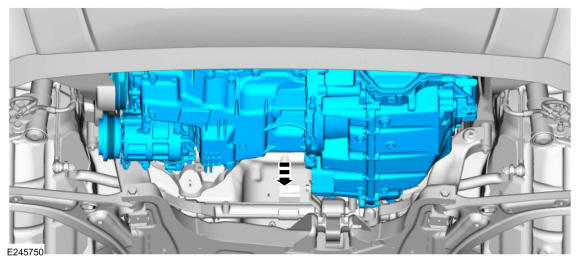

41. NOTE: Make sure that no components catch.

    Lower the powertrain from the vehicle.

    Courtesy of FORD MOTOR COMPANY

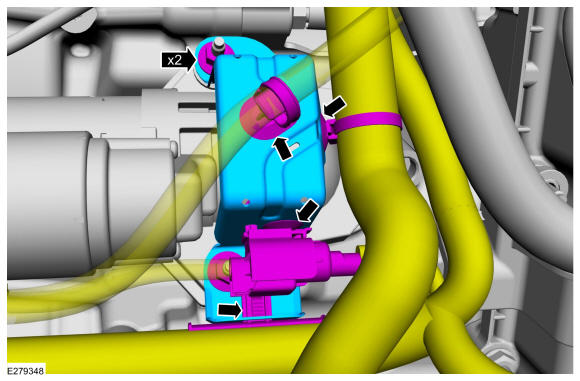

42. • Detach the wiring harness retainers and position the wiring harness aside.
    • Remove the starter motor bracket nuts and then remove the starter motor bracket.

    Courtesy of FORD MOTOR COMPANY

43. Remove the battery terminal cap.

    Courtesy of FORD MOTOR COMPANY

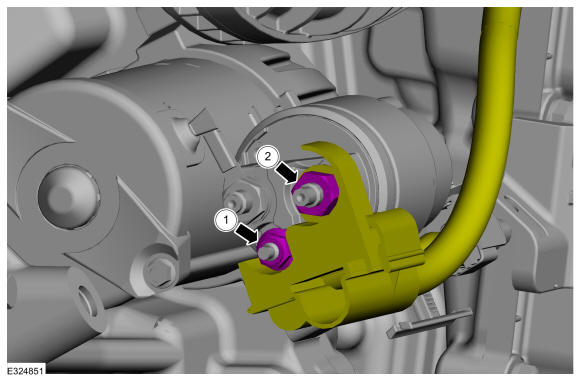

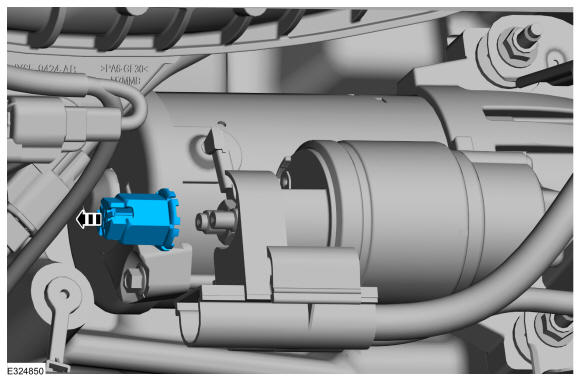

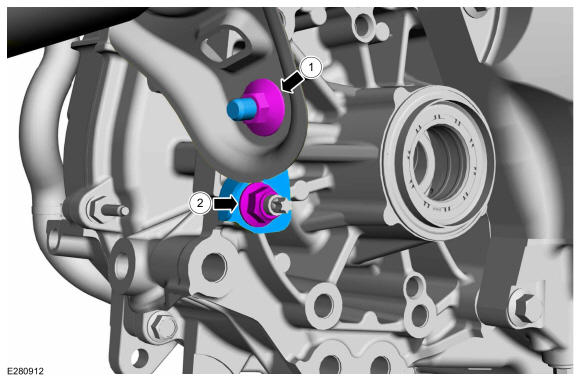

44. 1. Remove the starter motor solenoid control wire retaining nut.
    2. Remove the starter motor solenoid positive battery cable retaining nut and position the starter motor solenoid battery cable aside.

    Courtesy of FORD MOTOR COMPANY

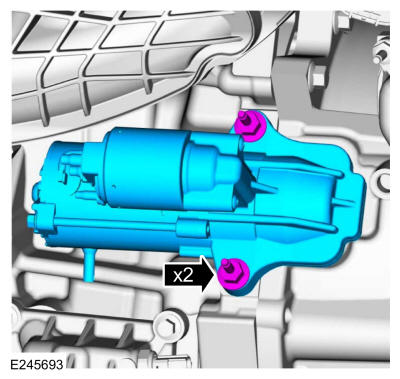

45. Remove the starter motor retaining stud bolts and then remove the starter motor.

    Courtesy of FORD MOTOR COMPANY

46. Remove the starter motor insulator.

    Courtesy of FORD MOTOR COMPANY

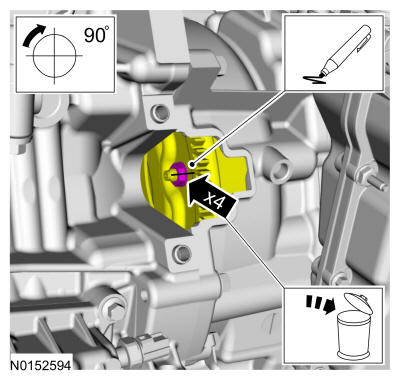

47. NOTE: Only rotate the crankshaft clockwise.
    NOTE: Note the position of the component before removal.

    Remove the torque converter nuts.

    Use the General Equipment: Magnetic Socket

    Courtesy of FORD MOTOR COMPANY

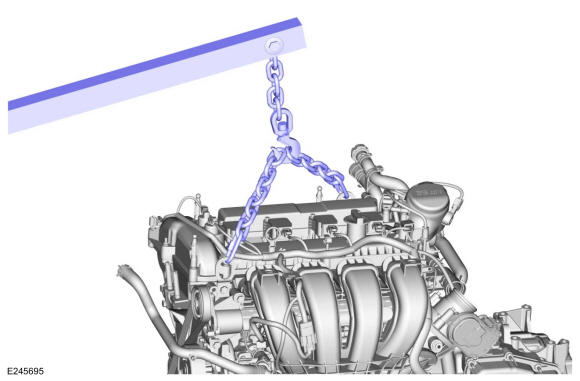

48. Install the floor crane and engine lift equipment.

    Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

49. Remove the adjustable mounting arm.

    Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

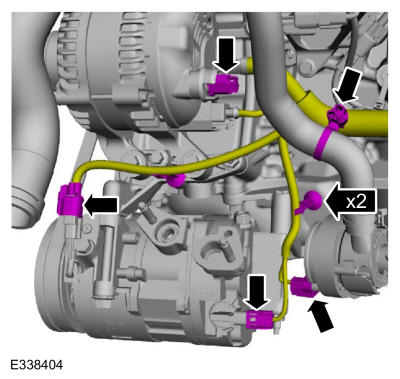

50. • Remove the generator B+ cable nut cover.
    • Disconnect the A/C compressor and the auxiliary coolant pump electrical connectors and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

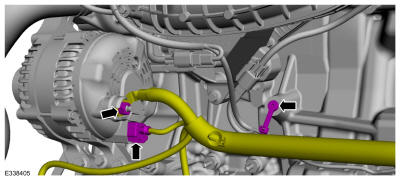

51. • Remove the nut and the B+ cable.
    • Disconnect the generator electrical connector.
    • Detach the generator and A/C wiring harness retainer and position the wiring harness on the transmission.

    Courtesy of FORD MOTOR COMPANY

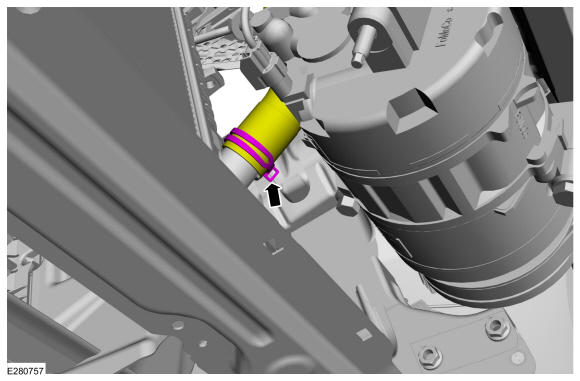

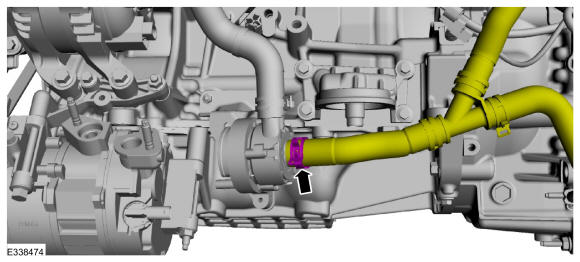

52. Release the clamp and position the auxiliary coolant pump hose aside.

    Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

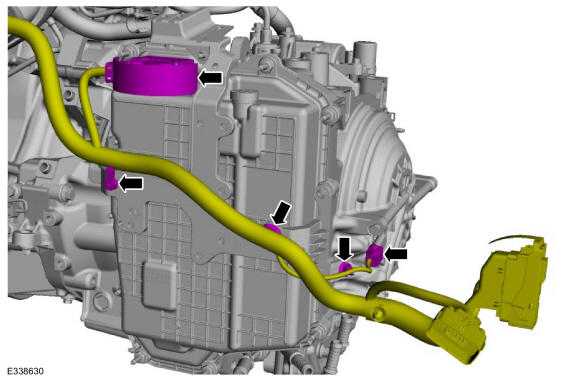

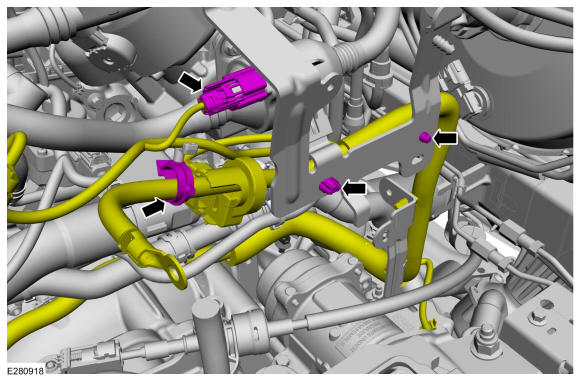

53. Disconnect the transmission wiring harness electrical connectors and the retainers.

    Courtesy of FORD MOTOR COMPANY

54. Remove the nut and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

55. Remove the bell housing stud bolts.

    Courtesy of FORD MOTOR COMPANY

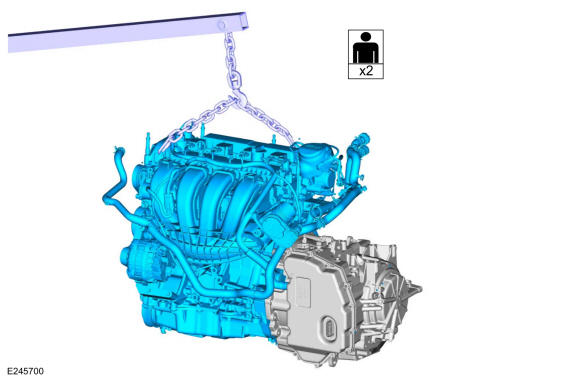

56. Using the floor crane and engine lift equipment, separate the engine from the transmission.

    Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

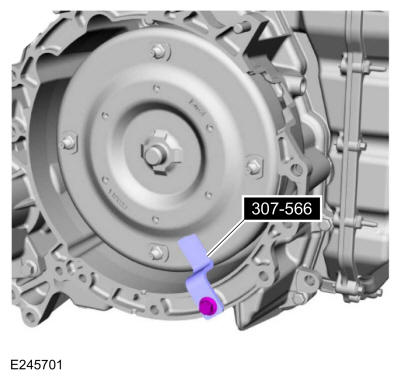

57. Install Special Service Tool: 307-566 Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
