Oil Pump: Removal

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Remove the engine front cover. Refer to: Engine Front Cover .
Remove the upper dash panel reinforcement.

Courtesy of FORD MOTOR COMPANY
Position aside the hoses and the wiring. Remove the upper dash panel reinforcement.

Courtesy of FORD MOTOR COMPANY
Install the special tool to support the engine.
Install Special Service Tool: 303-F072 Support Bar, Engine, 303-290-05A Adapter for 303-290A, 303-290B-19 Adapter for 303-290B.

Courtesy of FORD MOTOR COMPANY
Remove the trolley jack and wooden block.
Use the General Equipment: Trolley Jack

Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
Disconnect the A/C compressor upper electrical connector.

Courtesy of FORD MOTOR COMPANY

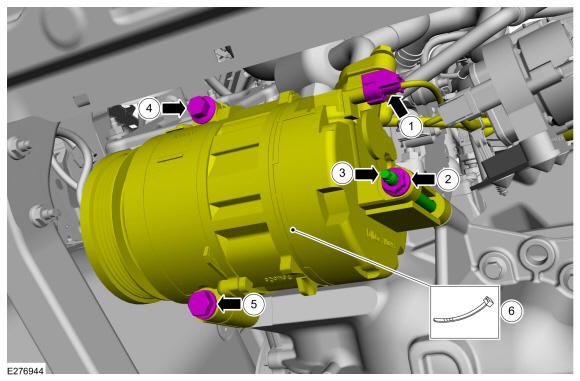

1. Disconnect the A/C compressor electrical connector.
2. Remove the nut.
3. Remove the stud.
4. NOTE: Note the different lengths of the bolts.

  Remove the bolt.
5. NOTE: Note the different lengths of the bolts.

  Remove the bolt.
6. NOTE: Make sure that no strain is placed on the refrigerant lines.

  NOTE: Make sure that the component is secured with suitable cable ties.

  Using a cable tie, position aside the A/C compressor.

  Use the General Equipment: Cable Ties
Courtesy of FORD MOTOR COMPANY
NOTE: The oil drain plug with O-ring seal is to be reused unless damaged.

Drain and install the drain plug.

Use the General Equipment: Oil Drain Equipment

Torque: 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY
Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the different lengths of the bolts.

Remove the oil pan-to-transmission bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the different lengths of the bolts.

Remove the bolts and the oil pan.

Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the oil pump screen and pickup tube.

Courtesy of FORD MOTOR COMPANY

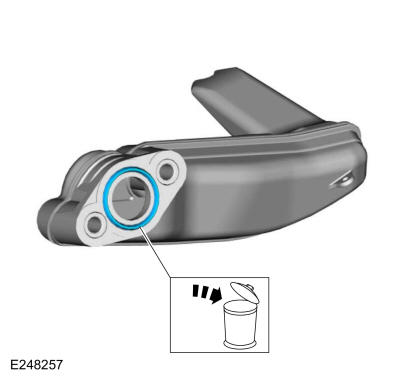

Remove and the discard the O-ring seal.

Courtesy of FORD MOTOR COMPANY

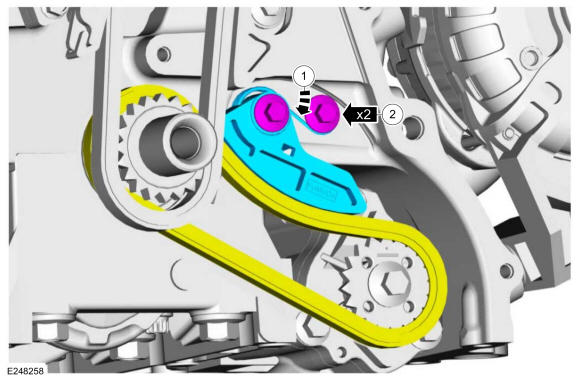

1. Push the tensioner spring down and release the spring from under the shoulder bolt.
2. Remove the shoulder bolts, tensioner, spring and position the oil pump chain off the oil pump sprocket.
Courtesy of FORD MOTOR COMPANY
Remove the bolt and oil pump sprocket.

Courtesy of FORD MOTOR COMPANY

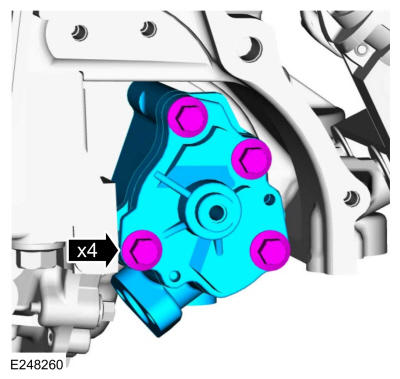

Remove the bolts and the oil pump.

Courtesy of FORD MOTOR COMPANY

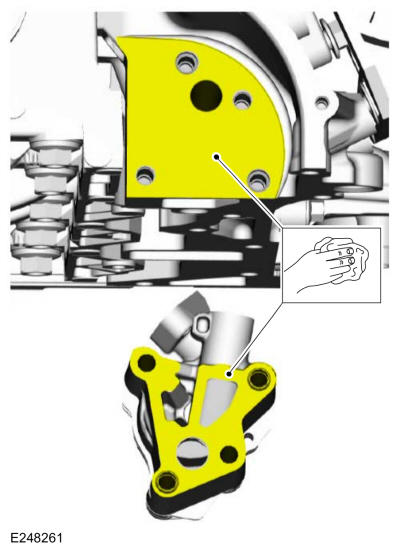

Clean the mating surfaces of the oil pump.

Courtesy of FORD MOTOR COMPANY
