Oil Pump: Installation

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand. Refer to: Specifications .
Install the oil pump and tighten the bolts in sequence shown in 2 stages.
Torque: Stage 1: 89 lb.in (10 Nm)

Stage 2: 177 lb.in (20 Nm)

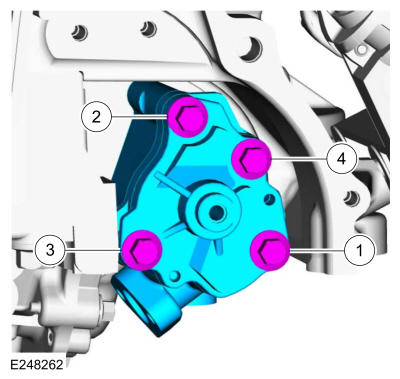

Fig 1: Oil Pump Tightening Sequence
Courtesy of FORD MOTOR COMPANY

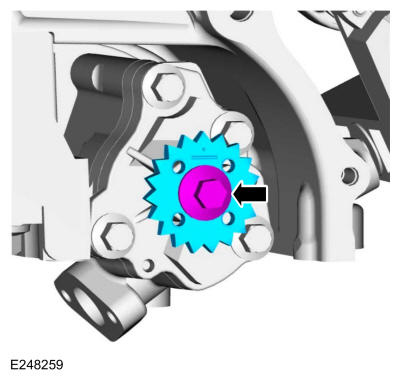

Install the oil pump sprocket and bolt.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

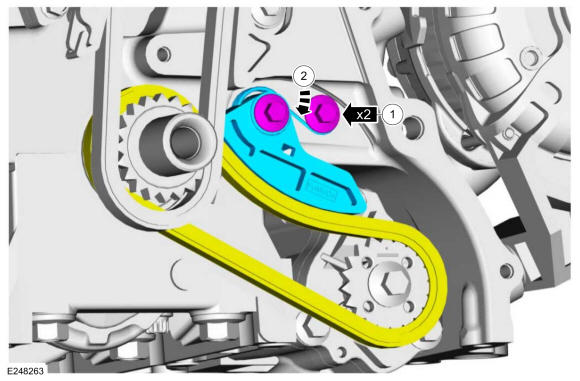

1. Position the oil pump chain on the oil pump sprocket and install the tensioner, spring and the shoulder bolts.
  Torque: 89 lb.in (10 Nm)
2. Push the tensioner spring down and position the spring under the shoulder bolt.
Courtesy of FORD MOTOR COMPANY
Install a new O-ring seal.

Courtesy of FORD MOTOR COMPANY
Install the oil pump screen and pickup tube and tighten the bolts in two stages.
Torque: Stage 1: 44 lb.in (5 Nm)

Stage 2: 50°

Courtesy of FORD MOTOR COMPANY
NOTE: The component must be installed within 10 minutes of applying the sealant.

Apply a 3 mm bead of silicone sealant to the oil pan-to-engine block mating surfaces.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: Note the different lengths of the bolts.

NOTE: Only tighten the bolts finger tight at this stage.

Install the oil pan and the bolts.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts in sequence shown in illustration.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the oil pan-to-transmission bolt.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
1. NOTE: Only tighten the nut and bolts finger tight at this stage.

  Position back the A/C compressor and install the nut, the stud and the bolts finger tight.

  Remove the General Equipment: Cable Ties
2. Tighten the stud.
  Torque: 80 lb.in (9 Nm)
3. NOTE: Note the different lengths of the bolts.

  Tighten the bolt.

  Torque: 18 lb.ft (25 Nm)
4. NOTE: Note the different lengths of the bolts.

  Tighten the bolt.

  Torque: 18 lb.ft (25 Nm)
5. Tighten the nut.
  Torque: 18 lb.ft (25 Nm)
6. Connect the A/C compressor electrical connector.
Courtesy of FORD MOTOR COMPANY
Disconnect the A/C compressor upper electrical connector.

Courtesy of FORD MOTOR COMPANY

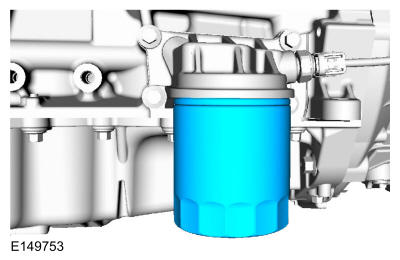

NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.

Install a new engine oil filter.

Torque: Stage 1: 71 lb.in (8 Nm)

Stage 2: 180°

Courtesy of FORD MOTOR COMPANY
Using a trolley jack and wooden block, support the engine.
Use the General Equipment: Trolley Jack

Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
Remove the special tool.
Remove Special Service Tool: 303-F072 Support Bar, Engine, 303-290-05A Adapter for 303-290A, 303-290B-19 Adapter for 303-290B.

Courtesy of FORD MOTOR COMPANY
Install the upper dash panel reinforcement. Position the hoses and the wiring back.

Courtesy of FORD MOTOR COMPANY
Install the upper dash panel reinforcement.

Courtesy of FORD MOTOR COMPANY
Install the engine front cover. Refer to: Engine Front Cover .
Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .
