Crankshaft Pulley: Removal

NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.

NOTE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the following items:
1. Remove the RH front fender splash shield. Refer to: Fender Splash Shield .
2. Remove the accessory drive belt. Refer to: Accessory Drive Belt .
- Disconnect the CKP sensor electrical connector.
- Remove the bolts and the CKP sensor.
Courtesy of FORD MOTOR COMPANY
Turn the crankshaft until piston No. 1 is 45 degrees before TDC by using the guide holes on the engine front cover and the crankshaft pulley.

Courtesy of FORD MOTOR COMPANY
Remove the engine plug bolt.

Courtesy of FORD MOTOR COMPANY
Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
NOTE: The special tool will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position during the crankshaft pulley removal and installation.

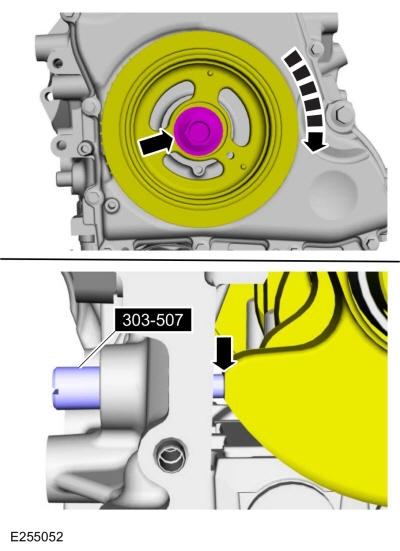

Using the crankshaft pulley bolt, turn the crankshaft clockwise slowly until contact is made with the special tool.

Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
Remove the RH and LH CMP sensors. Refer to: Camshaft Position (CMP) Sensor .
NOTE: Exhaust camshaft shown in illustration, intake camshaft similar.

NOTE: The camshaft trigger wheels are offset. If the camshaft trigger wheels are not correctly aligned, the camshaft holding tools will not be able to be installed in the next step.

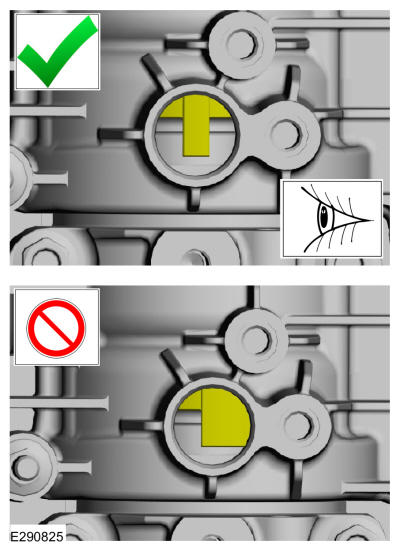

Make sure the camshaft trigger wheels are correctly aligned as shown in illustration. If the trigger wheels are not correctly aligned, remove the TDC Timing Peg and rotate the crankshaft three-fourths of a revolution clockwise and repeat steps 6 and 7 of this removal procedure

Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Holding Tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

Install Special Service Tool: 303-1686 Holding Tool, Camshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: The crankshaft must remain in the TDC position during removal of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the special tool, and the crankshaft pulley bolt should be removed using an air impact wrench (1/2-in drive minimum).
- Using the special tool, remove the bolt, washer and the crankshaft pulley.
  Use Special Service Tool: 303-1689 Holding Tool, Crank Damper.
- NOTE: If necessary, retain the original crankshaft pulley bolt to use for the removal of the crankshaft front seal.

  Discard the bolt.
