Engine - 2.0L DURATEC-He (110KW/150PS) - Mi4: Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	307-566 Retainer, Torque Converter TKIT-2006C-FFMFLM TKIT-2006C-LM TKIT-2006C-ROW
Magnetic Socket
Floor Crane
Adjustable Mounting Arm
Hose Clamp Remover/Installer
Powertrain Jack
Wooden Block

Materials

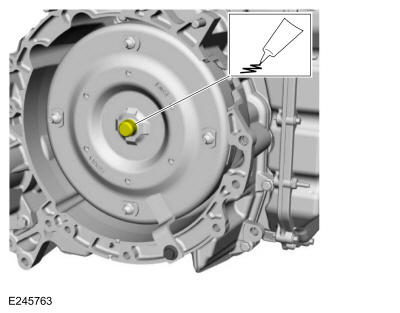

1. Lubricate the torque converter pilot hub with multi-purpose grease.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

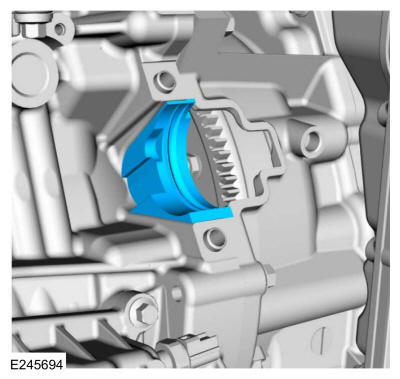

2. Remove Special Service Tool: 307-566 Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

3. Using the floor crane and engine lift equipment, install the engine to the transmission on the powertrain table.

   Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

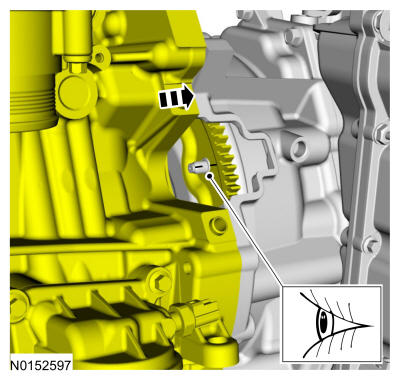

4. Make sure the torque converter stud marked during removal aligns with the flexplate.

   Courtesy of FORD MOTOR COMPANY

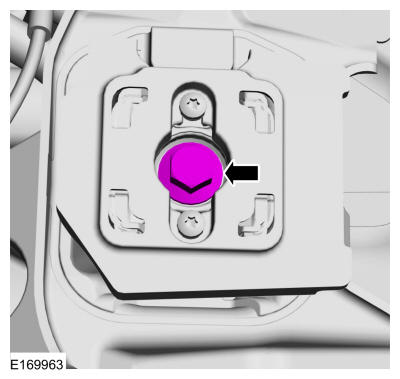

5. Install the bell housing bolt.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

6. Install the transmission-to-engine stud bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

7. Attach the wiring harness retainers and install the nut.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Connect the transmission wiring harness electrical connectors and the retainers.

   Courtesy of FORD MOTOR COMPANY

9. Position the auxiliary coolant pump hose and install clamp.

   Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

10. • Position the wiring harness and attach the generator and A/C wiring harness retainer.
    • Connect the generator electrical connector.
    • Install the B+ cable and the nut.

      Torque: 133 lb.in (15 Nm)

    Courtesy of FORD MOTOR COMPANY

11. • Connect the A/C compressor and the auxiliary coolant pump electrical connectors and attach the wiring harness retainers.
    • Install the generator B+ cable nut cover.

    Courtesy of FORD MOTOR COMPANY

12. Install adjustable mounting arm.

    Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

13. Remove the floor crane and engine lift equipment.

    Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

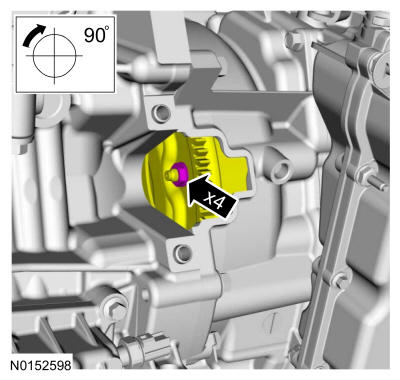

14. NOTE: Only rotate the crankshaft clockwise.

    Install new torque converter nuts.

    Use the General Equipment: Magnetic Socket

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

15. Install the starter motor isolator.

    Courtesy of FORD MOTOR COMPANY

16. Install the starter motor and the stud bolts.

    Torque: 26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

17. 1. Position the starter motor wiring housing and install the motor control wire nut.

       Torque: 53 lb.in (6 Nm)

    2. Install the battery positive cable nut.

       Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

18. Install the battery terminal cap.

    Courtesy of FORD MOTOR COMPANY

19. • Install the starter motor bracket and then install the starter motor bracket nuts.

      Torque: 89 lb.in (10 Nm)

    • Attach the wiring harness retainers and position the wiring harness.

    Courtesy of FORD MOTOR COMPANY

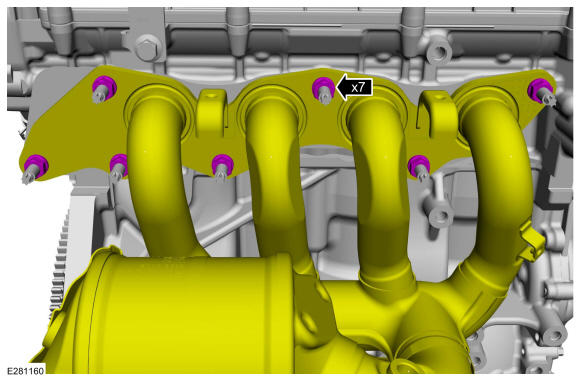

20. • Install a new catalytic converter manifold gasket.

    Courtesy of FORD MOTOR COMPANY

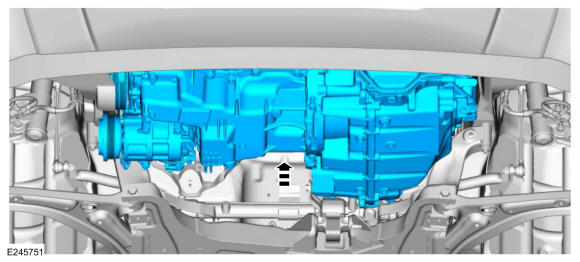

21. NOTE: Make sure that no components catch.

    Raise the powertrain into the vehicle.

    Courtesy of FORD MOTOR COMPANY

22. Install the transmission support insulator.

    Courtesy of FORD MOTOR COMPANY

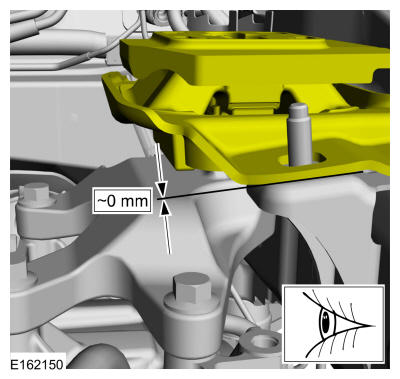

23. Raise the transmission until the transmission support insulator bracket reaches the transmission support insulator.

    Courtesy of FORD MOTOR COMPANY

24. Install the transmission support insulator bolt.

    Torque: 109 lb.ft (148 Nm)

    Courtesy of FORD MOTOR COMPANY

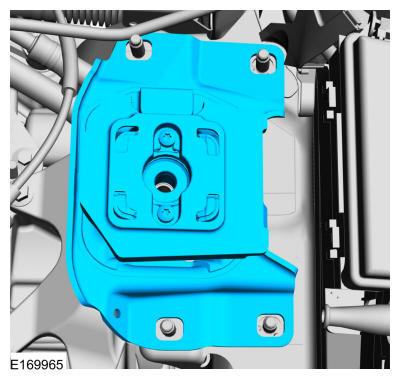

25. Tighten the engine mount studs.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

26. 1. Install the engine mount and the nuts.

       Torque: 85 lb.ft (115 Nm)

    2. NOTE: Make sure that the component is installed to the position noted before removal.
       NOTE: Only tighten the bolts finger tight at this stage.

       Install the engine mount bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

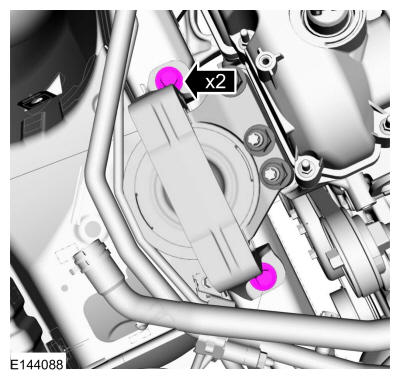

27. Tighten the engine mount bolts.

    Torque: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

28. • Remove adjustable mounting arm.

      Use the General Equipment: Adjustable Mounting Arm

    • Remove the powertrain jack and boards from under the engine and transmission.

      Use the General Equipment: Powertrain Jack

      Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

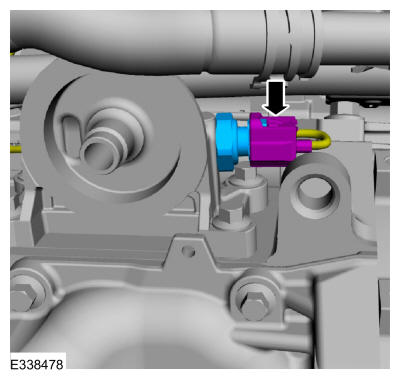

29. • Install a new the oil pressure switch.

      Torque: 97 lb.in (11 Nm)

    • Connect the oil pressure switch electrical connector.

    Courtesy of FORD MOTOR COMPANY

30. NOTE: Make sure that new nuts are installed.

    Attach the catalytic converter.

    Torque: Stage 1: 41 lb.ft (55 Nm)

    Stage 2: 41 lb.ft (55 Nm)

    Courtesy of FORD MOTOR COMPANY

31. Remove the bolts and the catalytic converter heat shield.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

32. Connect the catalyst monitor sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

33. Connect the HO2S (heated oxygen sensor) electrical connector.

    Courtesy of FORD MOTOR COMPANY

34. Connect the EVAP line. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

35. Connect the high pressure fuel line. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

36. • Attach the degas line to the intake manifold and install the retainers
    • Connect the vacuum line to the intake manifold. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

37. Position the transmission shift cable, install the bolts and connect the transmission shift cable.

    Courtesy of FORD MOTOR COMPANY

38. 1. Attach the coolant hoses to the coolant outlet connector.

       Use the General Equipment: Hose Clamp Remover/Installer

    2. Attach the coolant hoses to the coolant outlet connector. Refer to: Quick Release Coupling .
    • Attach the retainer to the coolant hose.

    Courtesy of FORD MOTOR COMPANY

39. Attach the upper radiator hose retainer to the transmission bracket.

    Courtesy of FORD MOTOR COMPANY

40. Attach the retainers to the bracket and connect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

41. Position the ground wire and attach the wire retainer and install the bolt.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

42. Position the battery feed cable to the positive battery cable and install the nut.

    Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

43. • Install the battery tray bracket and the nuts.

      Torque: 35 lb.ft (48 Nm)

    • Position the wiring harness, connect the electrical connector and the wiring retainers.

    Courtesy of FORD MOTOR COMPANY

44. Install the bell housing bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

45. Install the bell housing bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

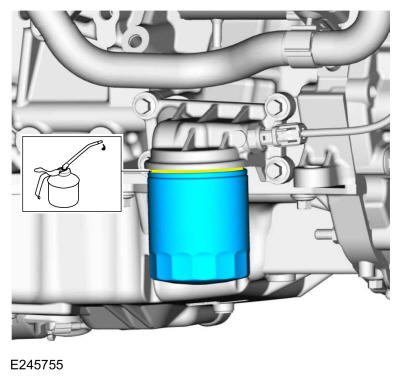

46. NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.

    Install a new engine oil filter.

    Torque: Stage 1: 71 lb.in (8 Nm)

    Stage 2: 180°

    Courtesy of FORD MOTOR COMPANY

47. Attach the radiator lower hose.

    Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

48. • Position the A/C compressor inlet line and install the nut.

      Torque: 18 lb.ft (25 Nm)

    • Position the A/C compressor outlet line and install the nut.

      Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

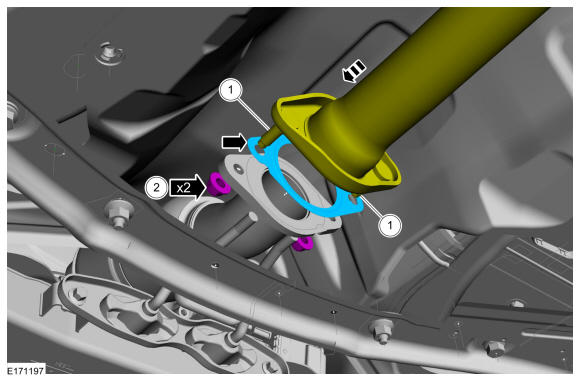

49. 1. NOTE: Make sure that a new component is installed.

       Apply a thin coating. Install the gasket and position the muffler and tailpipe.

       Material: Multi-Purpose Grease (SA-M1C9107-A)

    2. NOTE: Make sure that new nuts are installed.

       Install the nuts.

       Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

50. Install catalytic converter bracket and the nuts.

    Torque: 1: 18 lb.ft (25 Nm)

    2: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

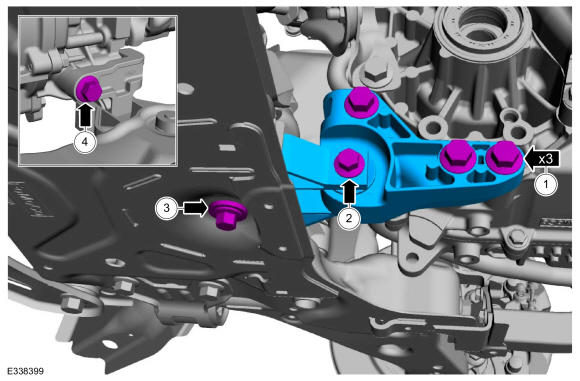

51. 1. Install the engine roll restrictor and bracket and the bolts.

       Torque: 129 lb.ft (175 Nm)

    2. Install the engine roll restrictor bolt.

       Torque: 76 lb.ft (103 Nm)

    3. Install the engine roll restrictor bolt.

       Torque: 76 lb.ft (103 Nm)

    4. Install the rear roll restrictor bracket bolt.

       Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

52. Install the RH front halfshaft. Refer to: Front Halfshaft RH .
53. Install the LH front halfshaft. Refer to: Front Halfshaft LH .
54. Attach the hoses.

    Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

55. Connect the PCM electrical connector.

    Courtesy of FORD MOTOR COMPANY

56. Install the PCM cover.

    Courtesy of FORD MOTOR COMPANY

57. Connect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

58. Install the following items:
    1. Install the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .
    2. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
    3. Install the LH fender splash shield. Refer to: Fender Splash Shield .
    4. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    5. Install the battery tray. Refer to: Battery Tray - 2.0L Duratec-HE (110kW/150PS) - MI4 .
    6. Install the degas bottle. Refer to: Degas Bottle .
    7. Install the cowl panel. Refer to: Cowl Panel .

59. Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
60. Charge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
61. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
62. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
63. Road test the vehicle.
