Disassembly And Assembly Of Subassemblies: Piston: Disassembly

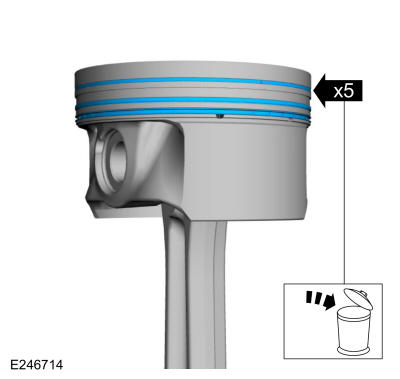

1. Remove the piston rings and discard.

   Courtesy of FORD MOTOR COMPANY

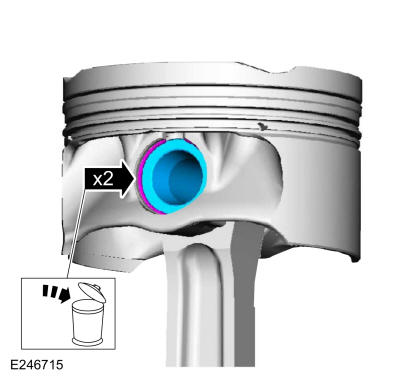

2. • Remove the piston pin retainers and discard.
   • Remove the piston pin.

   Courtesy of FORD MOTOR COMPANY

3. Remove the piston from the connecting rod.

   Courtesy of FORD MOTOR COMPANY

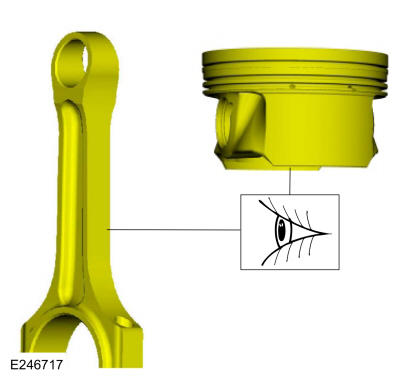

4. Inspect the piston. Refer to: Piston Inspection .

Courtesy of FORD MOTOR COMPANY
