Disassembly And Assembly Of Subassemblies: Piston: Assembly

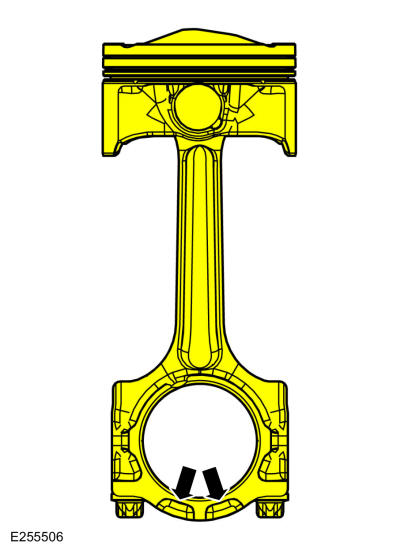

  1. Indicates front of engine.
    GFD570608Courtesy of FORD MOTOR COMPANY
  2. Install the piston to the connecting rod.
    GFD570609Courtesy of FORD MOTOR COMPANY

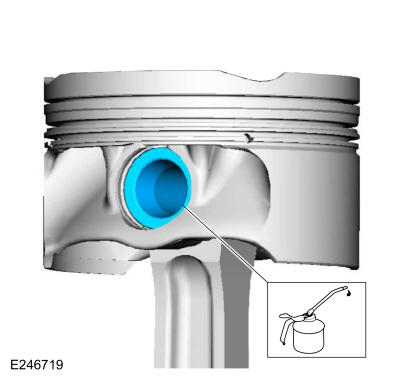

  3. Lubricate with clean engine oil and install the piston pin.

    Material: Motorcraft® SAE 5W-20 Full Synthetic Motor Oil / XO-5W20-QFS (WSS-M2C945-A)

    GFD570610Courtesy of FORD MOTOR COMPANY

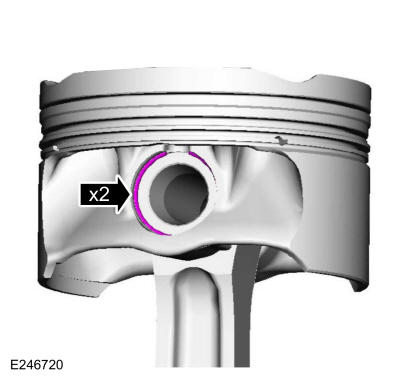

  4. Install the piston pin retainers.
    GFD570611Courtesy of FORD MOTOR COMPANY

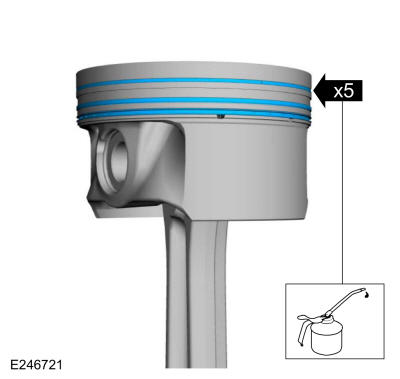

  5. Lubricate with clean engine oil and install the piston rings.

    Material: Motorcraft® SAE 5W-20 Full Synthetic Motor Oil / XO-5W20-QFS (WSS-M2C945-A)

    GFD570612Courtesy of FORD MOTOR COMPANY

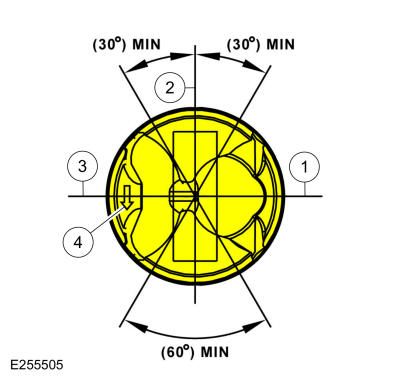

  6. NOTE: Align the piston rings on the piston.

    1. Upper oil control segment ring gap location.
    2. Oil control spacer gap location.
    3. Lower oil control segment ring gap location.
    4. Piston to be assembled with the arrow pointing to the front of the engine.

GFD570613Courtesy of FORD MOTOR COMPANY
