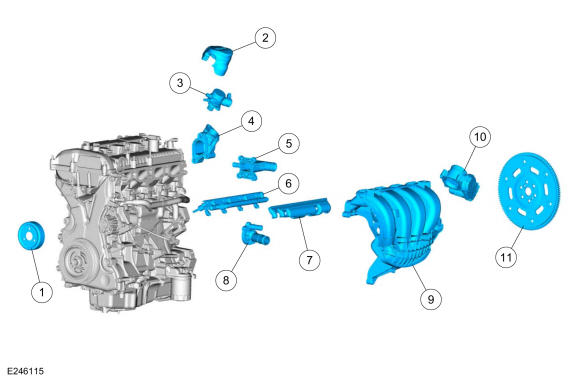

Exploded View Of Engine -- External Components
| Item | Part Number | Description |
|---|---|---|
| 1 | 8509 | Coolant pump pulley |
| 2 | 9C374 | High-pressure fuel pump noise insulator |
| 3 | 9D376 | High-pressure fuel pump |
| 4 | 9B374 | High-pressure fuel pump drive unit |
| 5 | 8K556 | Coolant outlet |
| 6 | 9F797 | Fuel rail |
| 7 | 9U550 | Fuel rail insulator |
| 8 | 8575 | Thermostat housing assembly |
| 9 | 9424 | Intake manifold |
| 10 | 9424 | Throttle body |
| 11 | 6477 | Flexplate |
