Engine - 2.0L DURATEC-He (110KW/150PS) - Mi4: Assembly: Engine
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Special Tool(s) / General Equipment
| 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge | |
|---|---|
| 205-153 (T80T-4000-W) Handle | |
| 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal TKIT-2009TC-F |
|
| 303-103 (T74P-6375-A) Holding Tool, Flywheel T74P-77000-A TKIT-2009TC-F |
|
| 303-1247 VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW |
|
| 303-1521 Alignment Tool, Crankshaft Position Sensor TKIT-2010C-FLM |
|
| 303-1565 Alignment Tool, Camshaft TKIT-2010C-FLM |
|

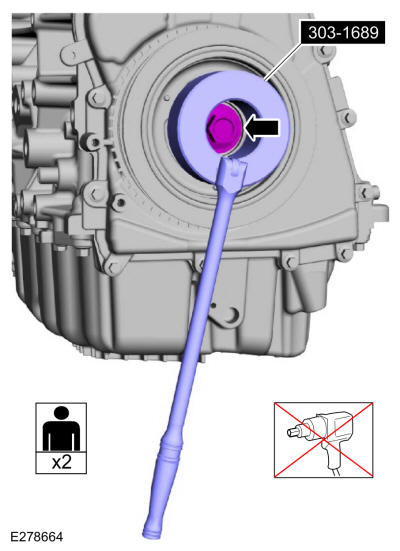

| 303-1689 Holding Tool, Crank Damper | |
| 303-328 (T88P-6701-B1) Replacer, Rear Seal TKIT-1988-FLM TKIT-1988-F TKIT-1988-LM |
|
| 303-507 Timing Peg, Crankshaft TDC TKIT-2001N-FLM TKIT-2001N-ROW |
|
| Feeler Gauge | |
| Floor Crane | |
| Hose Clamp Remover/Installer | |
| Round-Ended Steel Rule | |
| Piston Ring Compressor |
Materials
| Name | Specification |
|---|---|
| Motorcraft® High Performance Engine RTV Silicone TA-357 | WSE-M4G323-A6 |
| Motorcraft® Metal Surface Prep Wipes ZC-31-B | - |
| Motorcraft® Gasket Maker TA-16 | WSK-M2G348-A5 |
-
NOTE: If the engine piston oil coolers are being reused, they must be installed in the same location as marked during disassembly.NOTE: The front bulkhead does not have an engine piston oil cooler.
Install the engine piston oil coolers and the bolts.
Torque: 35 lb.in (4 Nm)

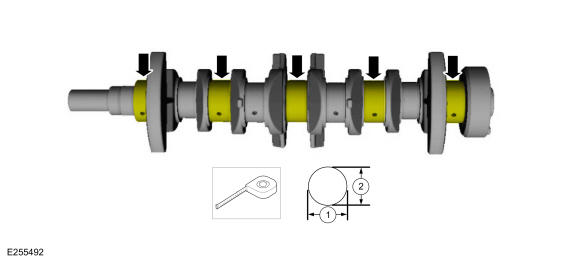

- Measure each of the crankshaft main bearing journal diameters in at least 2 directions and record the smallest diameter for each journal.
- Position the main bearing beam in the engine block with the main bearing beam mounted flush with the rear face of the engine block and install the original main bearing beam bolts finger tight.
- Tighten the bolts in sequence shown in illustration.
Torque: Stage 1: 44 lb.in (5 Nm)
Stage 2: 18 lb.ft (25 Nm)
Stage 3: 90°

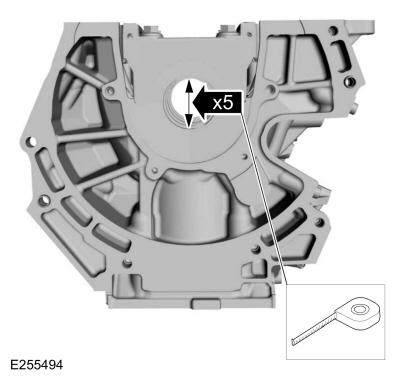

- Measure each crankshaft block main bearing bore diameter.
-
NOTE: The bearing color corresponds to the number marked on the bearing.

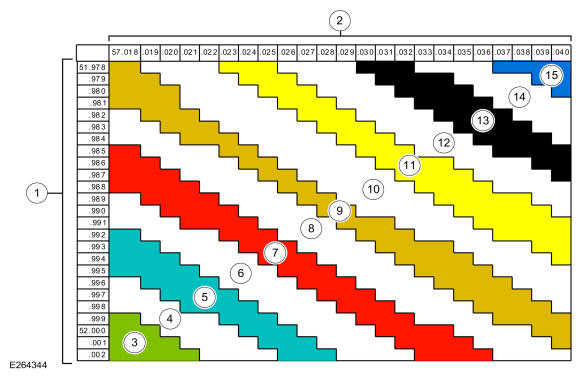

Using the chart, select the correct grade main bearings.
- Crankshaft journal diameter
- Cylinder block bore diameter
- Upper Bearing Green: 1 / Lower Bearing Green: 1
- Upper Bearing Blue: 2 / Lower Bearing Green: 1
- Upper Bearing Blue: 2 / Lower Bearing Blue: 2
- Upper Bearing Red: 3 / Lower Bearing Blue: 2
- Upper Bearing Red: 3 / Lower Bearing Red: 3
- Upper Bearing Brown: 4 / Lower Bearing Red: 3
- Upper Bearing Brown: 4 / Lower Bearing Brown: 4
- Upper Bearing Yellow: 5 / Lower Bearing Brown: 4
- Upper Bearing Yellow: 5 / Lower Bearing Yellow: 5
- Upper Bearing Black: 6 / Lower Bearing Yellow: 5
- Upper Bearing Black: 6 / Lower Bearing Black: 6
- Upper Bearing Blue/Green: 7 / Lower Bearing Black: 6
- Upper Bearing Blue/Green: 7 / Lower Bearing Blue/Green: 7

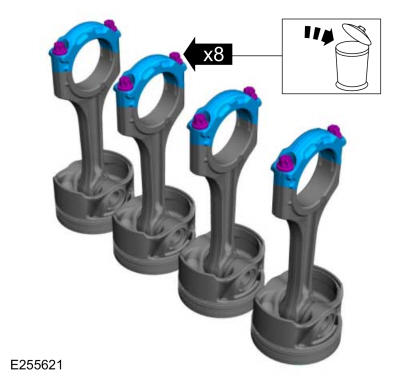

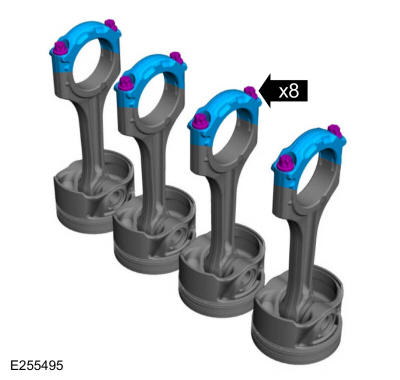

- Using the original connecting rod cap bolts, install the connecting caps and bolts and tighten the bolts in 2 stages:
Torque: Stage 1: 21 lb.ft (29 Nm)
Stage 2: 90°
-

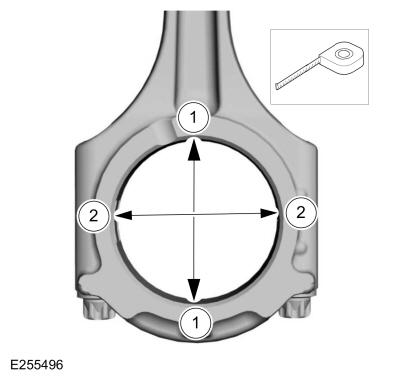

- Measure the connecting rod large end bore in 2 directions.
- Record the smallest measurement for each connecting rod.
-
- Remove the bolts and the connecting rod caps.
- Discard the bolts.
-

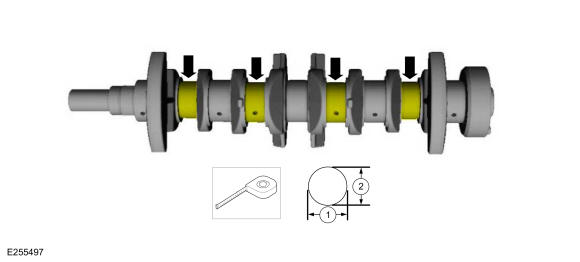

- Measure each of the crankshaft connecting rod bearing journal diameters in at least 2 directions.
- Record the smallest measurement for each connecting rod journal.
-
NOTE: The bearing color corresponds to the number marked on the bearing.

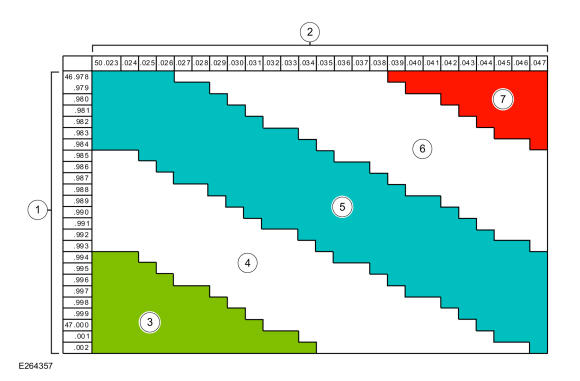

Using the chart, select the correct grade connecting rod bearings.
- Crankshaft journal diameter
- Connecting rod diameter
- Upper Bearing Green: 1 / Lower Bearing Green: 1
- Upper Bearing Green: 1/ Lower Bearing Blue: 2
- Upper Bearing Blue: 2 / Lower Bearing Blue: 2
- Upper Bearing Blue: 2/ Lower Bearing Red: 3
- Upper Bearing Red: 3 / Lower Bearing Red: 3
-
- Remove the bolts in the sequence shown in illustration and the main bearing beam.
- Discard the main bearing beam bolts.
-
NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Make sure the coolant and oil passages are clear.NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.NOTE: The center bulkhead is the thrust bearing.

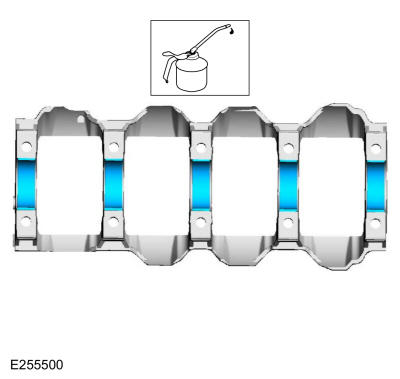

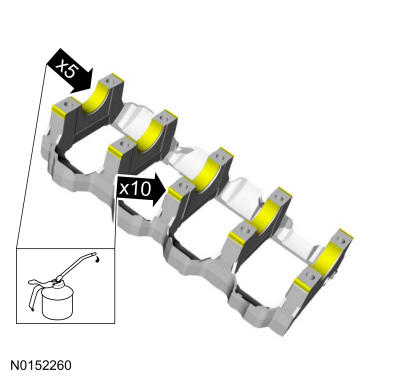

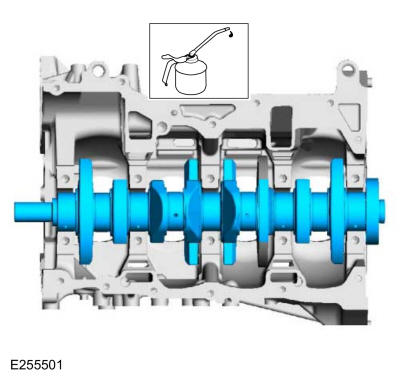

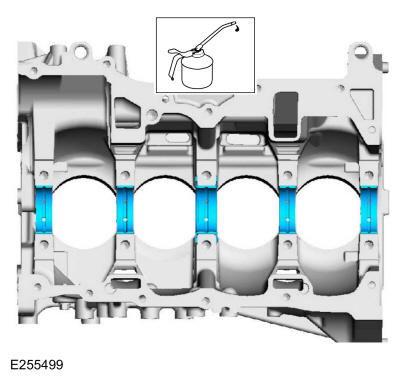

Lubricate with clean engine oil and install the crankshaft main bearings.
-
NOTE: Component(s) must be lubricated with clean engine oil.NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.
-
NOTE: Component(s) must be lubricated with clean engine oil.
-
NOTE: Component(s) must be lubricated with clean engine oil.

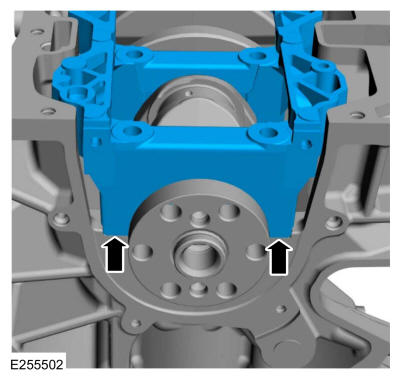

- Position the main bearing beam in the engine block with the main bearing beam mounted flush with the rear face of the engine block.
-
NOTE: Position the crankshaft to the rear of the cylinder block, then position the crankshaft to the front of the cylinder block before tightening the main bearing beam bolts.
- Lubricate the main bearing beam bolt threads and under the bolt heads with clean engine oil.
- Install the 10 new main bearing beam bolts finger tight.
- Position the crankshaft to the rear of the cylinder block, then position the crankshaft to the front of the cylinder block before tightening the main bearing beam bolts.

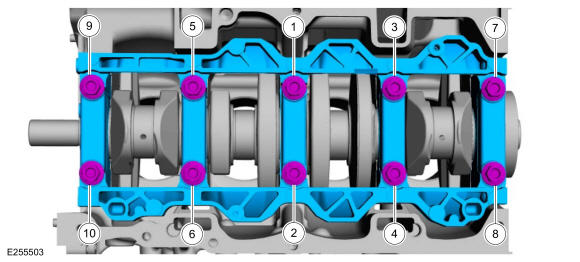

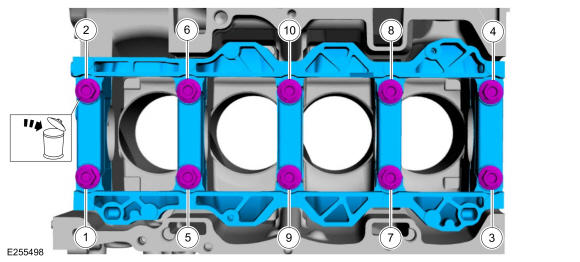

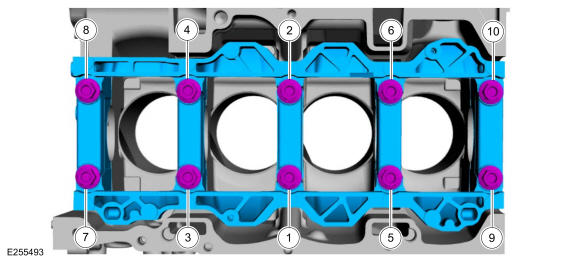

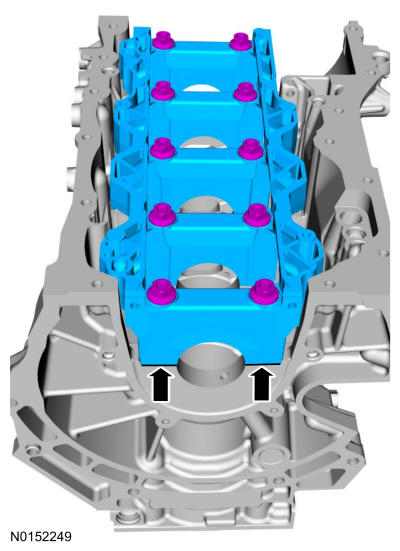

- Tighten the main bearing beam bolts in sequence shown in illustration in 3 stages.
Torque: Stage 1: 44 lb.in (5 Nm)
Stage 2: 18 lb.ft (25 Nm)
Stage 3: 90°
-
- Measure crankshaft end play.

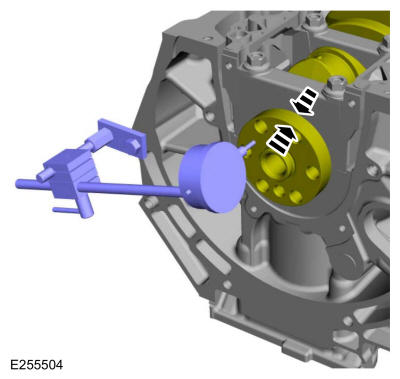

Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.
- Position the crankshaft to the rear of the cylinder block.
- Zero the Dial Indicator Gauge with Holding Fixture.
- Move the crankshaft to the front of the cylinder block.
- Note and record the crankshaft end play.
- Acceptable crankshaft end play is 0.2-0.43 mm (0.008-0.017 in). If the crankshaft end play exceeds the specified range, install new parts as necessary.
- Measure crankshaft end play.
-
- Upper oil control segment ring gap location.
- Oil control spacer gap location.
- Lower oil control segment ring gap location.
- Piston to be assembled with the arrow pointing to the front of the engine.
- Connecting rod to be assembled with the front marks pointing to the front of the engine.
-
NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.NOTE: Lubricate the pistons, piston rings, connecting rod bearings and the entire cylinder bores with clean engine oilNOTE: Make sure the piston arrow on top is facing toward the front of the engine.NOTE: When installing the pistons and connecting rod assemblies, the oil ring gaps must be positioned 60 degrees apart from each other and a minimum of 90 degrees from the expander gap. The position of the upper and lower compression ring gaps are not controlled for installation.
Install the piston and connecting rod assemblies.
Use the General Equipment: Piston Ring Compressor

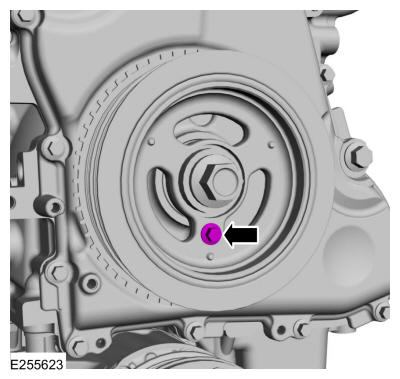

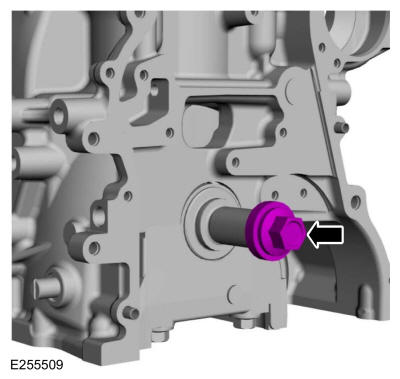

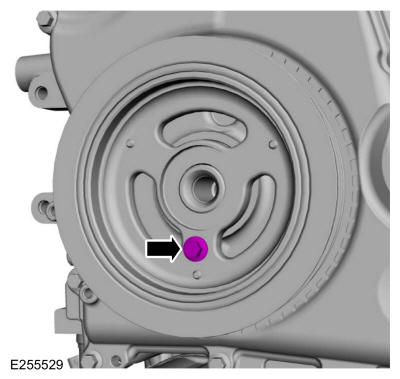

- Install the original crankshaft pulley bolt.
-
NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.NOTE: Install connecting rod caps and bolts on the connecting rods for cylinders 1 and 4 first and tighten. Then rotate crankshaft 180 degrees and install connecting rod caps and bolts on connecting rods for cylinders 2 and 3 and tighten.NOTE: After installation of each connecting rod cap, rotate the crankshaft to verify smooth operation.
Install the connecting rod caps and the new bolts and tighten the bolts in 2 stages:
Torque: Stage 1: 21 lb.ft (29 Nm)
Stage 2: 90°

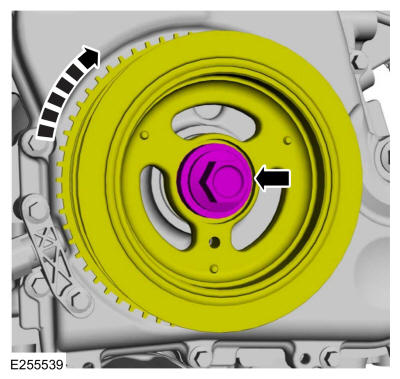

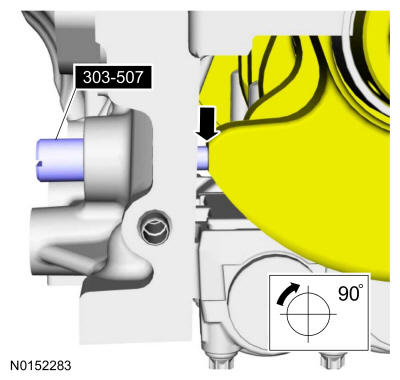

- Install the special tool and rotate the crankshaft pulley bolt slowly clockwise until the crankshaft balance weight is up against the special tool. The engine is now at TDC.

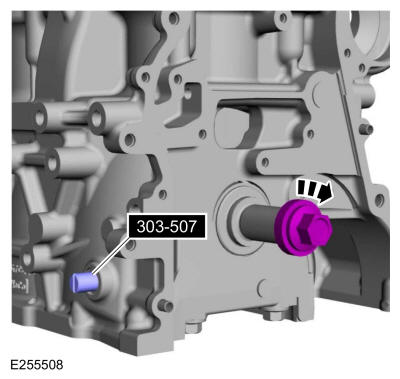

Use Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
- Remove the crankshaft pulley bolt.

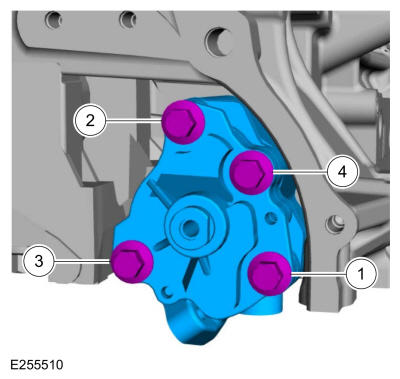

- Install the oil pump assembly and tighten the bolts in the sequence shown in illustration in 2 stages.
Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
Torque: Stage 1: 89 lb.in (10 Nm)
Stage 2: 177 lb.in (20 Nm)
- Install the oil pump sprocket and bolt.
Torque: 18 lb.ft (25 Nm)
- Install the crankshaft sprocket.
-

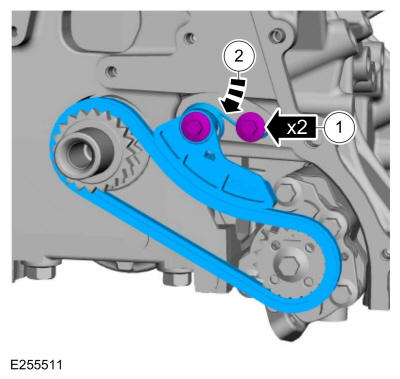

- Install the chain on the oil pump sprocket and install the tensioner and the shoulder bolts.
Torque: 89 lb.in (10 Nm)
- Push the tensioner spring down and position the spring under the shoulder bolt.
- Install the chain on the oil pump sprocket and install the tensioner and the shoulder bolts.
-

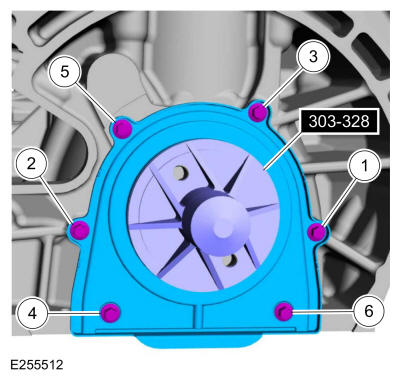

- Install the crankshaft rear main oil seal installer.
Use Special Service Tool: 303-328 (T88P-6701-B1) Replacer, Rear Seal.
- Using the crankshaft rear main oil seal installer, position the crankshaft rear oil seal with retainer plate onto the crankshaft.
Torque: 89 lb.in (10 Nm)
- Install the crankshaft rear main oil seal installer.
- Install a new oil pickup and screen O-ring seal.
- Using a new gasket, install the oil pump screen and pickup tube and the bolts.
Torque: 89 lb.in (10 Nm)
-
NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

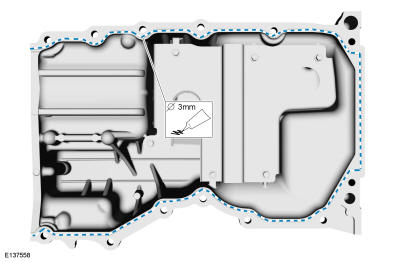

Apply a bead of Silicone Gasket and Sealant to the oil pan-to-engine block mating surface.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
-
NOTE: Note the different lengths of the bolts.NOTE: Only tighten the bolts finger tight at this stage.
Position the oil pan onto the engine.
- Align the front surface of the oil pan flush with the front surface of the engine block.
Use the General Equipment: Round-Ended Steel Rule

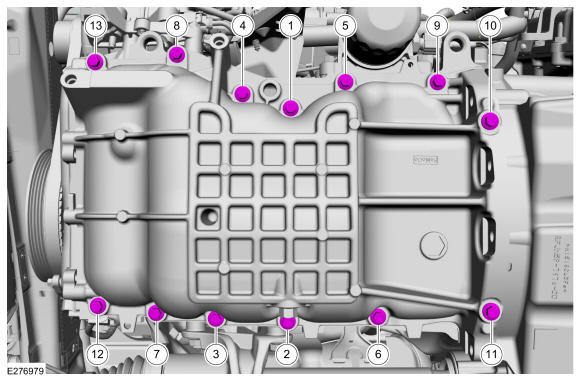

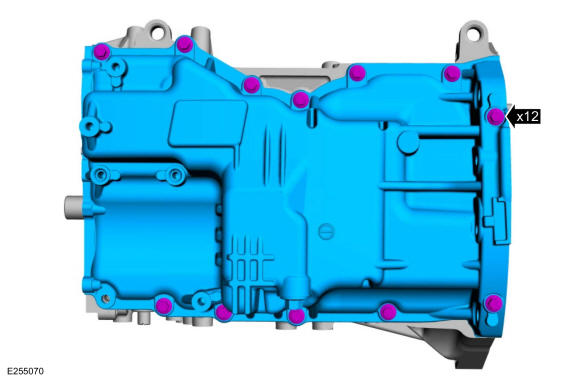

- Tighten in sequence shown in illustration.
Torque: 177 lb.in (20 Nm)

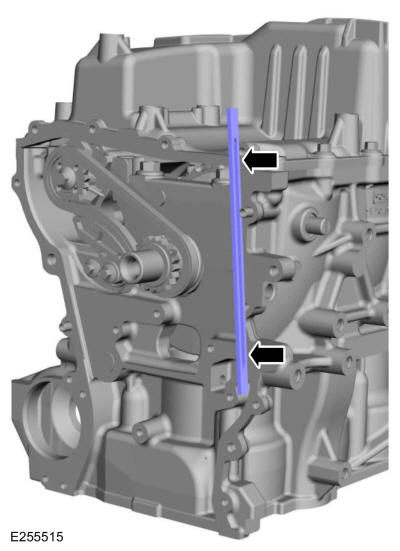

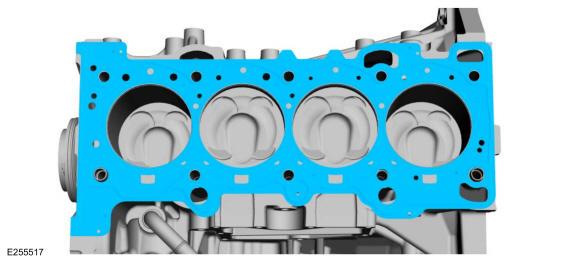

- Install the cylinder head alignment dowels.
- Install a new cylinder head gasket.
-
NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

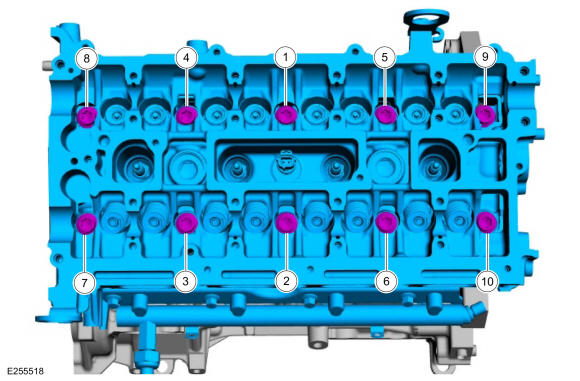

Install the cylinder head and the new bolts. Tighten the bolts in sequence shown in illustration in 5 stages.
Torque: Stage 1: 62 lb.in (7 Nm)
Stage 2: 133 lb.in (15 Nm)
Stage 3: 26 lb.ft (35 Nm)
Stage 4: 90°
Stage 5: 135°
-
NOTE: Component(s) must be lubricated with clean engine oil.

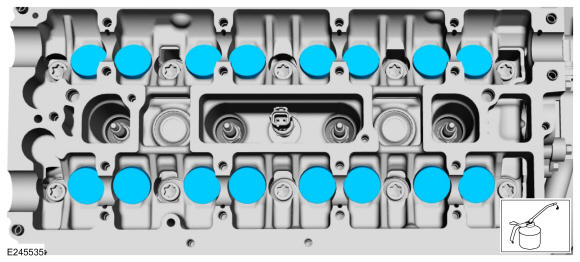

Install the valve tappets in their original positions.
-
NOTE: If any new parts are being installed (cylinder head, valves, tappets, camshafts) it is necessary to check the valve clearance, follow the next 13 steps exactly or serious damage to the engine may occur. If the original parts are being installed it is not necessary to check the valve clearance so proceed to step 55.
Install the crankshaft bolt and place a paint mark on the crankshaft bolt at the 12 o'clock position.
-
- Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
-
NOTE: Rotating the crankshaft will position all of the pistons below the deck of the cylinder block and allow the camshafts to be installed and the valve clearance checked without the possibility of damage to the valves or pistons.

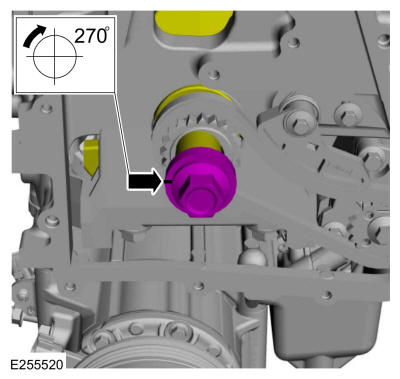

Using the crankshaft bolt and washer, rotate the crankshaft clockwise 270 degrees until the paint mark is at the 9 o'clock position.
-
NOTE: Failure to follow the camshaft tightening procedure can result in damage to the camshafts.NOTE: Component(s) must be lubricated with clean engine oil.

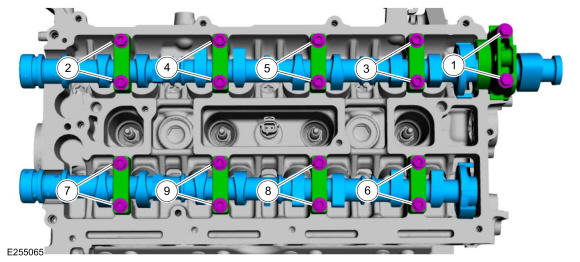

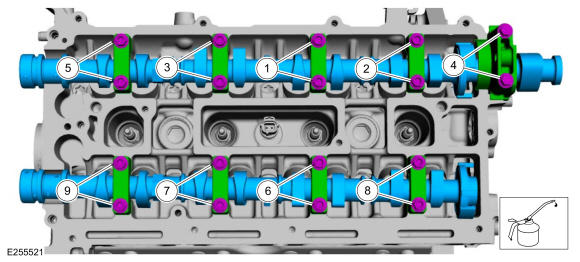

- Tighten the bolts 2 turns at a time in the sequence shown in illustration in 2 stages.
Torque: Stage 1: 62 lb.in (7 Nm)
Stage 2: 142 lb.in (16 Nm)
- Tighten the bolts 2 turns at a time in the sequence shown in illustration in 2 stages.
-
NOTE: Component(s) must be lubricated with clean engine oil.
Install the front camshaft bearing cap and bolts.
Torque: Stage 1: 62 lb.in (7 Nm)
Stage 2: 142 lb.in (16 Nm)
-
- Using the flats of the camshaft, rotate the camshaft to place the cam lobe at base circle, with the lobe pointed away from the tappet.
- Use a feeler gauge to measure the clearance of each valve and record its location. Use the General Equipment: Feeler Gauge
- Repeat to measure all of the lobe/tappet clearances.
-
NOTE: The number on the valve tappet only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.NOTE: Select tappets using this formula: tappet thickness = measured clearance + the existing tappet thickness - nominal clearance.NOTE: The nominal clearance is:
- intake: 0.25 mm (0.0095 in).
- exhaust: 0.36 mm (0.0142 in).
NOTE: The acceptable clearances after being fully installed are:- intake: 0.19-0.31 mm (0.007-0.012 in).
- exhaust: 0.30-0.42 mm (0.012-0.017 in).
- Remove the bolts and the front camshaft bearing cap.
-
NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.
Loosen the camshaft bearing caps in sequence 2 turns at a time until all tension is released from the camshaft bearing caps. Remove the bolts, caps and camshafts.
- Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
-
NOTE: Rotating the crankshaft will position the engine at TDC and allow you to install the camshafts in the same position as noted during the disassembly.
Using the crankshaft pulley bolt, rotate the crankshaft clockwise 90 degrees so the crankshaft contacts the special tool.

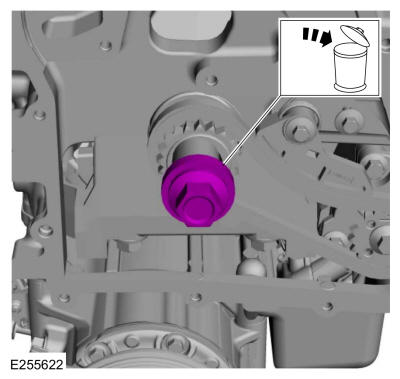

- Remove and discard crankshaft pulley bolt.
-
NOTE: Lubricate the valve tappets with clean engine oil prior to installing.
If necessary, replace any tappets with the correct tappets selected during the valve clearance check and lubricate with clean engine oil.
- NOTE: The exhaust camshaft rear bearing cap must be secured within 10 minutes of Gasket Maker application. If the exhaust camshaft rear bearing cap is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.NOTE: Do not allow Gasket Maker to enter the camshaft bearing journal. If Gasket Maker is applied to the camshaft bearing journal, the journal and sealing area must be cleaned.

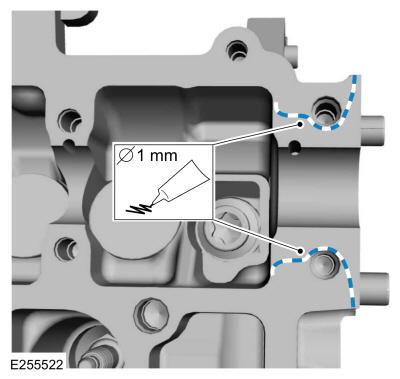

Apply 1 mm (0.039 in) beads of Gasket Maker to the exhaust rear camshaft bearing cap as shown in illustration.
Material: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)
-
NOTE: Install the camshafts with the alignment slots in the camshafts lined up so the Camshaft Alignment Plate can be installed without rotating the camshafts. Make sure the lobes on the No. 1 cylinder are in the same position as noted in the removal procedure. Rotating the camshafts when the timing chain is removed, or installing the camshafts 180 degrees out of position can cause severe damage to the valves and pistons.NOTE: Failure to follow the camshaft tightening procedure can result in damage to the camshafts.NOTE: Wipe off any excess gasket maker from the fuel injection pump housing sealing surface of the cylinder head and rear camshaft cap.NOTE: Component(s) must be lubricated with clean engine oil.
- Tighten the camshaft bearing cap bolts one turn at a time, until finger-tight.
- Tighten the bolts 2 turns at a time in the sequence shown in illustration in 2 stages.
Torque: Stage 1: 62 lb.in (7 Nm)
Stage 2: 142 lb.in (16 Nm)
-
-
NOTE: Component(s) must be lubricated with clean engine oil.

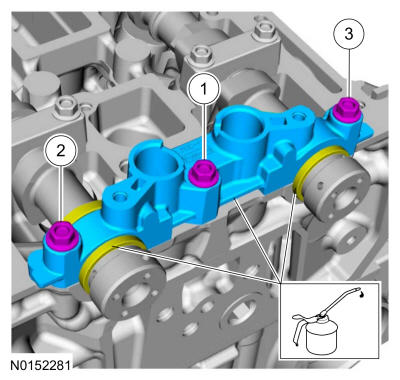

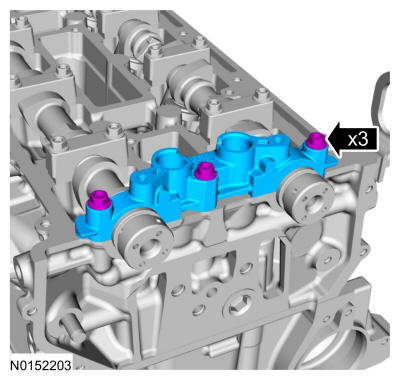

Install the front camshaft bearing cap and the bolts and tighten in 2 stages.
Torque: Stage 1: 62 lb.in (7 Nm)
Stage 2: 142 lb.in (16 Nm)
-
- Install the VCT solenoids and the bolts.
Torque: 89 lb.in (10 Nm)
-
NOTE: The special tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
Install Special Service Tool: 303-1565 Alignment Tool, Camshaft.
-
NOTE: Only tighten the bolts finger tight at this stage.

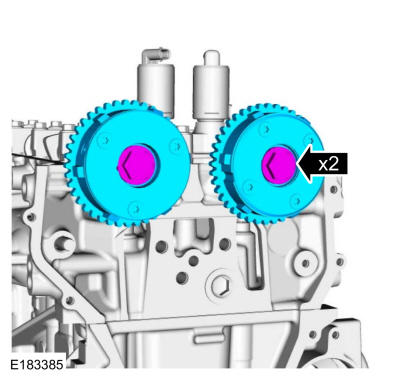

Install the VCT units and the bolts.
- Install the tensioner arm, timing chain, timing chain guide and the bolts.
Torque: 89 lb.in (10 Nm)
NOTE: If equipped with aluminum timing chain tensioner.NOTE: If the timing chain tensioner plunger is not pinned in the compressed position, follow the next step. - Reset the timing chain tensioner.
- Position the timing chain tensioner in a soft-jawed vise.
- Spread the ends of the ratchet wire clip apart.
- Using the soft-jawed vise, compress the plunger to the reset position.
- Install a locking pin in the 2 holes of the timing chain tensioner body to hold the plunger in place.
-
NOTE: If equipped with aluminum timing chain tensioner.NOTE: Do not remove the locking pin until the tensioner bolts are tightened.
- Install the timing chain tensioner and the bolts.
Torque: 89 lb.in (10 Nm)
- Remove the locking pin.
NOTE: If equipped with cast iron timing chain tensioner.NOTE: If the timing chain tensioner plunger and ratchet assembly are not pinned in the compressed position, follow the next 4 steps. - Install the timing chain tensioner and the bolts.
-
NOTE: Do not compress the ratchet assembly. This will damage the ratchet assembly.
Using the edge of a vise, compress the timing chain tensioner plunger.
- Using a small pick, push back and hold the ratchet mechanism.
- While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.
- Install a locking pin into the hole in the tensioner housing to hold the ratchet assembly and the plunger in during installation.
-
NOTE: If equipped with cast iron timing chain tensioner.NOTE: Do not remove the locking pin until the tensioner bolts are tightened.
Install the timing chain tensioner and the bolts.
Torque: 89 lb.in (10 Nm)
-
NOTE: If equipped with cast iron timing chain tensioner.
Remove the locking pin.
-

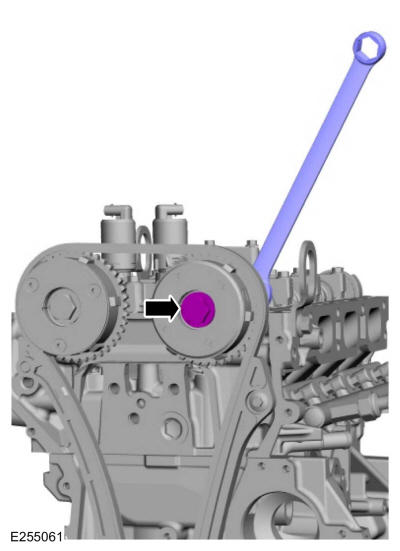

NOTE: The Camshaft Alignment Tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.NOTE: Use an open-ended wrench to prevent the component from turning.
Tighten the sprocket bolts shown in illustration in 2 stages:
Torque: Stage 1: 44 lb.ft (60 Nm)
Stage 2: 90°
-
NOTE: The Camshaft Alignment Tool is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.NOTE: Use an open-ended wrench to prevent the component from turning.
Tighten the sprocket bolts shown in illustration in 2 stages:
Torque: Stage 1: 44 lb.ft (60 Nm)
Stage 2: 90°
-
NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.

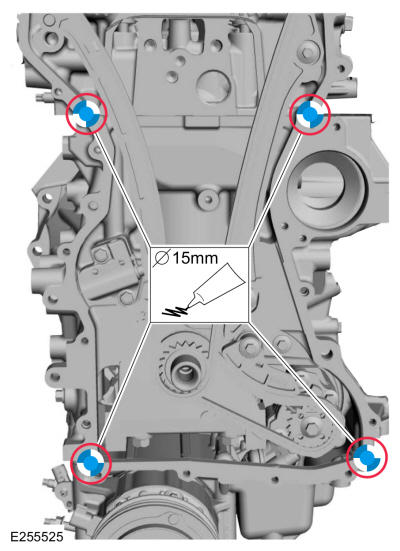

Apply silicone sealant across the cylinder head and cylinder block joint areas.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
-
NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.
Apply silicone sealant as shown in illustration.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
-
NOTE: Only tighten the bolts finger tight at this stage.
Install the engine front cover.

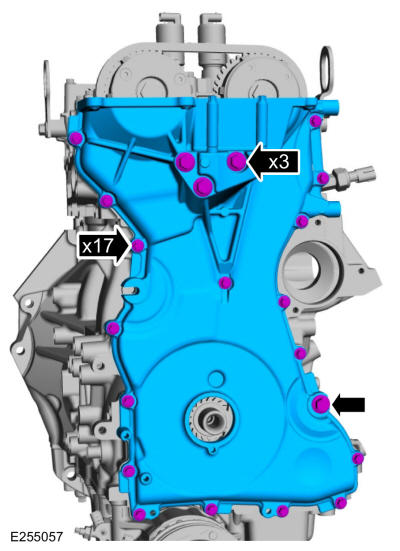

- Tighten the engine front cover bolts in sequence shown in illustration.
- Tighten bolts 1 through 3 to
Torque: 35 lb.ft (48 Nm)
- Tighten bolts 4 through 15 to
Torque: 89 lb.in (10 Nm)
- Tighten bolt 16 to
Torque: 35 lb.ft (48 Nm)
- Tighten bolts 17 through 22 to
Torque: 89 lb.in (10 Nm)
- Tighten bolts 1 through 3 to
-

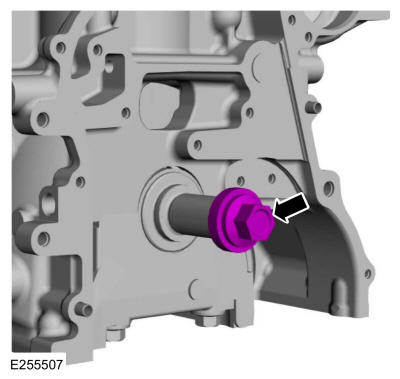

NOTE: Remove the through-bolt from the special tool.NOTE: Component(s) must be lubricated with clean engine oil.
Install the crankshaft front seal.
Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.
-
NOTE: Component(s) must be lubricated with clean engine oil.
-
NOTE: Do not install the crankshaft pulley bolt at this time.NOTE: Apply clean engine oil on the seal area before installing.
Position the crankshaft pulley onto the crankshaft with the crankshaft pulley TDC guide hole at the 6 o'clock position.
-
NOTE: This step will correctly align the crankshaft pulley to the crankshaft.
Install a standard M6 bolt through the crankshaft pulley TDC guide hole and into the engine front cover.
-
NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the special tool and a new bolt should be installed using hand tools only.NOTE: Do not reuse the crankshaft pulley bolt. Install a new crankshaft pulley bolt
- Install a new crankshaft pulley bolt finger tight.
- Using the special tool and breaker bar, tighten the crankshaft pulley.
Use Special Service Tool: 303-1689 Holding Tool, Crank Damper.
Torque: Stage 1: 74 lb.ft (100 Nm)
Stage 2: 90°
- Remove the M6 bolt.
- Install the CKP sensor and the bolts finger-tight.
- Install the special tool to set the CKP sensor position and tighten the 2 bolts.
Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.
Torque: 62 lb.in (7 Nm)
- Remove Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.
- Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
- Install the engine plug bolt.
Torque: 177 lb.in (20 Nm)
- Remove Special Service Tool: 303-1565 Alignment Tool, Camshaft.
- Install the EGR outlet tube and tighten the nut.
Torque: 41 lb.ft (55 Nm)
-
NOTE: Installation of new seals is only required if damaged seals were removed during disassembly of the engine.

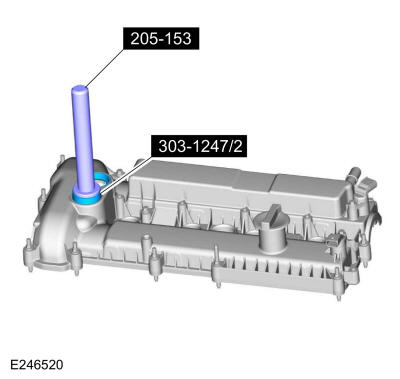

Using the special tools, install the VCT oil control solenoid seals.
Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.
-
NOTE: The valve cover must be secured within 10 minutes of silicone gasket application. If the valve cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.

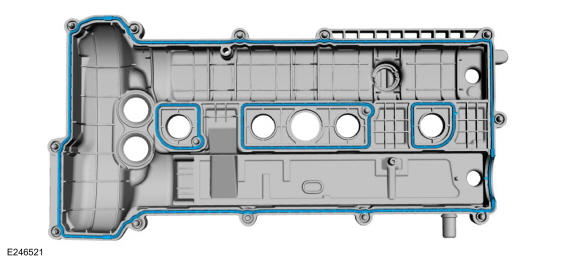

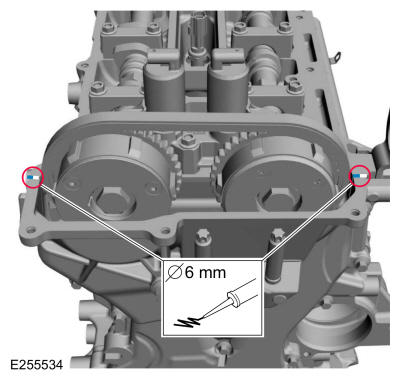

Apply a 6 mm bead of silicone sealant.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
- Install a new valve cover gasket.

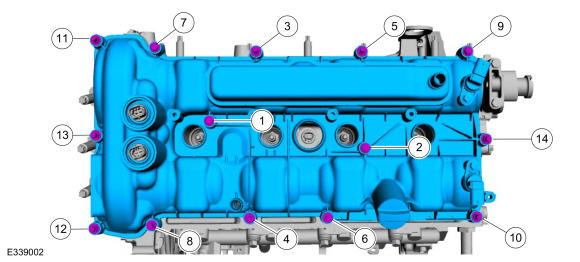

- Install the valve cover and tighten the fasteners in sequence shown in illustration.
Torque: 89 lb.in (10 Nm)
-

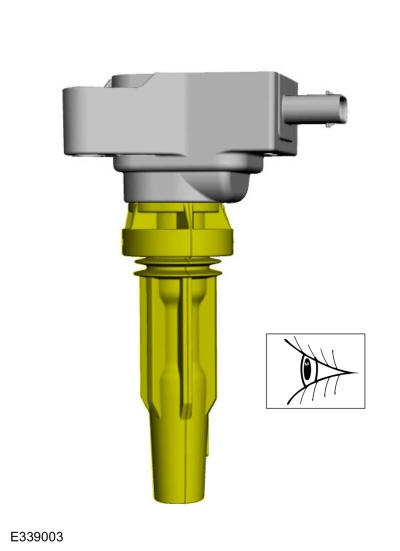

- Inspect the ignition coil boot for rips, nicks or tears.
- Remove and discard the damaged ignition coil boots.
- Install the ignition coil-on-plugs and the fasteners.
Torque: 89 lb.in (10 Nm)
- Install the oil level indicator.
- Install the EGR valve with a new gasket and the bolts.
- Install the coolant outlet and the bolts.
Torque: 89 lb.in (10 Nm)
- Install the high-pressure fuel pump drive unit and the stud bolts and tighten in 2 stages.
Torque: Stage 1: 16 lb.ft (22 Nm)
Stage 2: 45°
- Install the high-pressure fuel pump bracket and the bolts.
Torque: 133 lb.in (15 Nm)
-
NOTE: Only rotate the crankshaft clockwise or damage to the engine may occur.
Turn the crankshaft clockwise until the fuel injection pump cam lobe is at BDC.
-
NOTE: The cam lobe for the fuel injection pump must be at BDC for the fuel injection pump installation.NOTE: Component(s) must be lubricated with clean engine oil.
- Align the high-pressure fuel pump tappet with the high-pressure fuel pump drive unit.
- Install the high-pressure fuel pump tappet.
-
NOTE: Component(s) must be lubricated with clean engine oil.

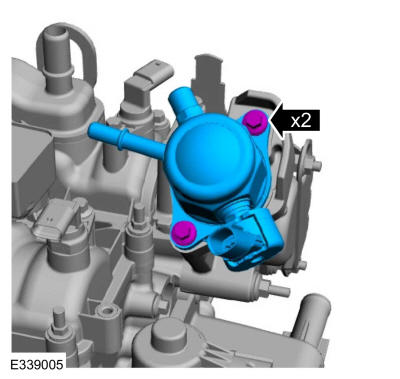

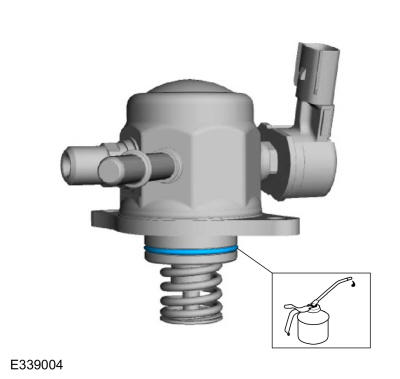

Install a new high-pressure fuel pump O-ring seal.
- Install the fuel injection pump and loosely install new fuel injection pump bolts, alternately tighten each bolt one complete revolution until seated.
Torque: Stage 1: 177 lb.in (20 Nm)
Stage 2: 45°
- Install the bracket and the bolts.
Torque: 35 lb.ft (48 Nm)
-
NOTE: The front KS must be installed in the 6 o'clock position and the rear KS must be installed in the 4 o'clock position. Failure to follow these instructions may result in damage to the engine.

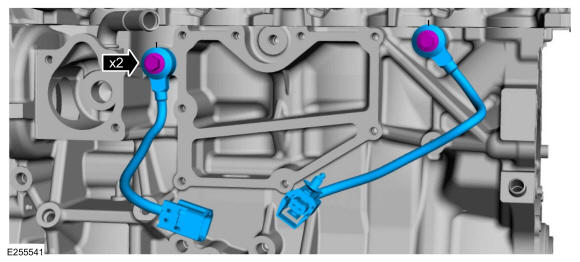

Install the KS and the bolts.
Torque: 177 lb.in (20 Nm)
- Install a new oil filter adapter gasket.
- Install the oil filter adapter and the bolts.
Torque: 18 lb.ft (25 Nm)
- Install the crankcase vent separator and the bolts.
Torque: 89 lb.in (10 Nm)
-
NOTE: Make sure that a new component is installed.NOTE: Install all the nuts and bolts finger tight before final tightening.

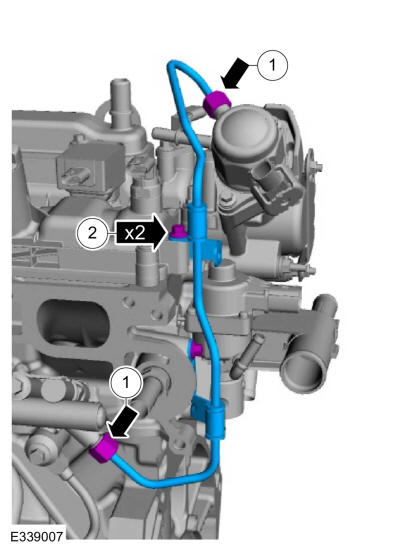

- Position the high-pressure fuel tube.
- Install the bolts.
-

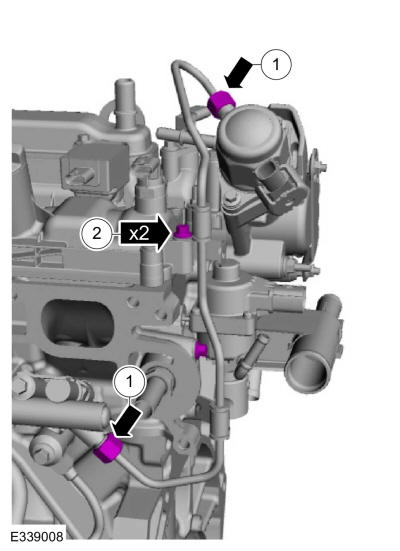

NOTE: Calculate the correct torque wrench setting for the following torque. REFER to Torque Wrench Adapter Formulas in illustration below.NOTE: new
- Tighten the high pressure fuel tube flare nuts in the following 2 stages:
Torque: Stage 1: 89 lb.in (10 Nm)
Stage 2: 30°
- Tighten the high-pressure fuel tube bracket bolts.
Torque: 89 lb.in (10 Nm)
- Tighten the high pressure fuel tube flare nuts in the following 2 stages:
-
NOTE: Use care when installing the fuel injection pump noise insulator. Spreading the openings will aid in installing the fuel injection pump noise insulator and reduce the risk of damage.
Install the high-pressure fuel pump noise insulator.
- Install the A/C compressor bracket, the bolt and the nut.
Torque: 18 lb.ft (25 Nm)
- Install the A/C compressor stud.
Torque: 80 lb.in (9 Nm)
- Install the A/C compressor and the bolts and the nut.
Torque: 18 lb.ft (25 Nm)
-
- Connect the fuel injector electrical connectors.
- Connect the FRP sensor electrical connector.
- Install the fuel rail insulator and attach the fuel rail wiring harness retainers.
-
- Install the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer
- Attach the coolant hose retainer.
- Install the coolant hose.
-
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
- Connect the PCV hose.
- Install the intake manifold and the bolts finger-tight.

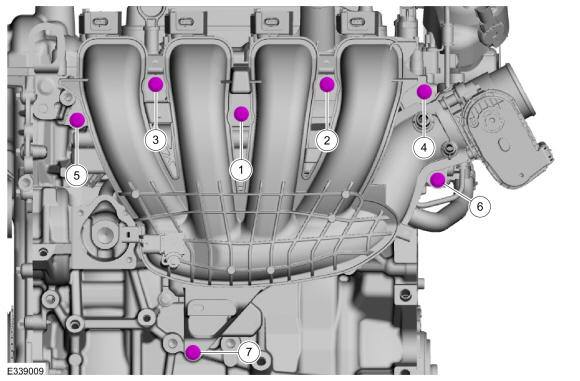

- Tighten the bolts in sequence shown in illustration.
Torque: 159 lb.in (18 Nm)
- Attach the KS wiring harness connectors to the intake manifold.

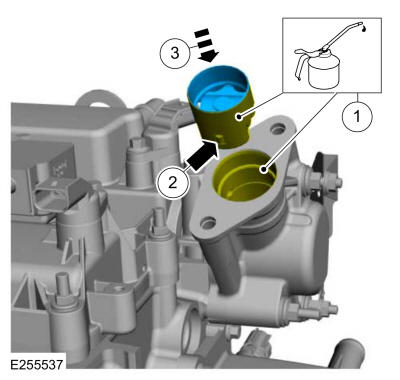

- Connect the EVAP line quick connector and install the EVAP purge valve to the bracket. Refer to: Quick Release Coupling
.
- If equipped, install the block heater.
Torque: 41 lb.ft (55 Nm)
-
- Install the generator stud.
Torque: 80 lb.in (9 Nm)

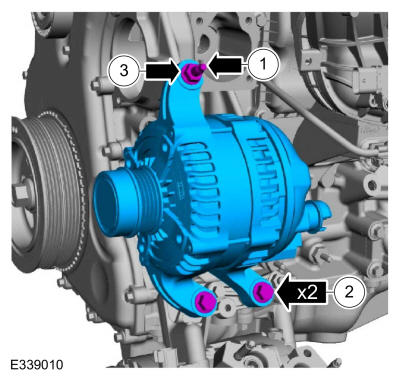

- Install the generator and the bolts.
Torque: 18 lb.ft (25 Nm)
- Install the generator nut.
Torque: 18 lb.ft (25 Nm)
- Install the generator stud.

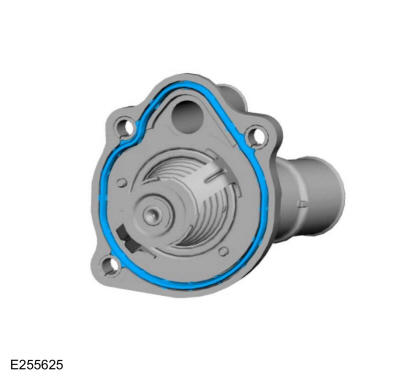

- Install a new thermostat housing gasket.
-
- Install the electric coolant pump and the nuts.
Torque: 89 lb.in (10 Nm)
- Install the thermostat housing and the bolts.
Torque: 89 lb.in (10 Nm)
- Install the electric coolant pump and the nuts.

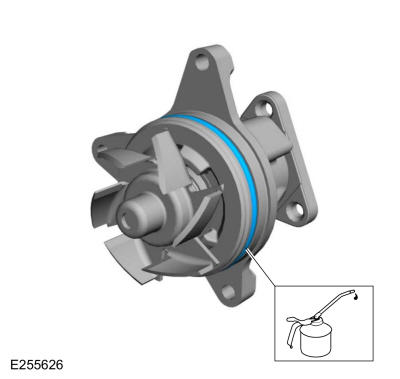

- Install a new coolant pump O-ring seal and lubricate with clean engine coolant.
- Install the coolant pump and the bolts.
Torque: 89 lb.in (10 Nm)
- Install the coolant pump pulley and the bolts finger-tight.
- Install the accessory drive belt tensioner and the bolts.
Torque: 97 lb.in (11 Nm)
-
- Install the tool and release the tension on the accessory drive belt tensioner.
- Install the accessory drive belt.
- Release the tool and remove.
- Tighten the coolant pump pulley bolts.
Torque: 177 lb.in (20 Nm)
- Instal the accessory drive belt cover and the bolt.
Torque: 18 lb.ft (25 Nm)
-
- Position the engine wiring harness and attach the wiring harness retainers.
- Connect the VCT oil control solenoid electrical connectors.
- Connect the CHT sensor electrical connector and install the cover.
- Connect the exhaust CMP sensor electrical connector.
- Connect the ignition coil-on-plug electrical connectors.
-
- Attach the wiring harness retainer.
- Connect the KS electrical connectors.
- Connect the MAP sensor electrical connector.
-
- Connect the intake manifold electrical connector.
- Attach the wiring harness retainer to the intake manifold.
- Attach the wiring harness retainers.
-
- Connect the high pressure fuel pump electrical connector.
- Connect the exhaust CMP sensor electrical connector.
- Connect the EVAP purge valve electrical connector.
- Attach the HO2S and the catalyst monitor sensor electrical connector.
- Remove the ground cable retaining bolt.
- Connect the EGR valve electrical connector.
- Connect the throttle body electrical connector.
- Attach the wiring harness retainers.
-
- Connect the CKP electrical connectors.
- Connect the crankcase vent tube to the valve cover. Refer to: Quick Release Coupling
.
- Install the lift equipment and floor crane.
Use the General Equipment: Floor Crane
- Remove the engine from the engine stand.
-
NOTE: Special bolts are used for installation. Do not use standard bolts.

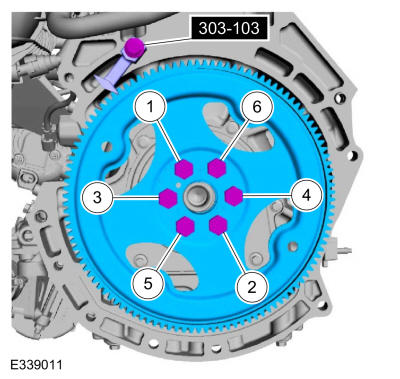

- Install the flexplate and the bolts finger tight.
- Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
- Tighten the bolts in sequence shown in illustration in 3 stages.
Torque: Stage 1: 37 lb.ft (50 Nm)
Stage 2: 59 lb.ft (80 Nm)
Stage 3: 83 lb.ft (112 Nm)
