Coolant Pump: Installation

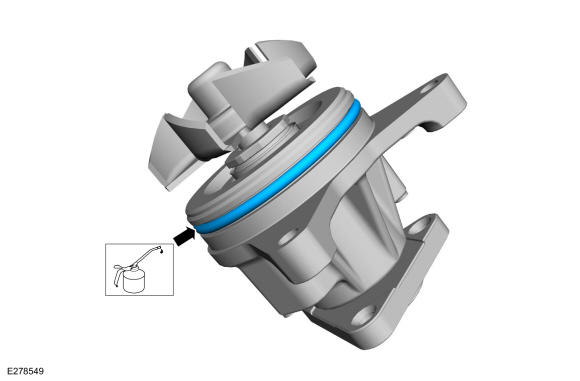

NOTE: Make sure that a new O-ring seal is installed.

Lubricate the O-ring seal with clean engine coolant.

Material

: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

Material

: Motorcraft® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

Courtesy of FORD MOTOR COMPANY

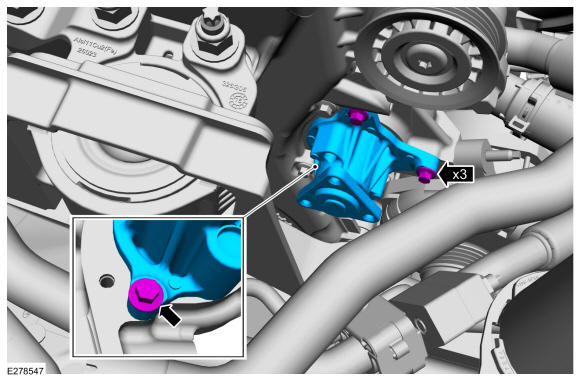

Install the coolant pump and the bolts.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

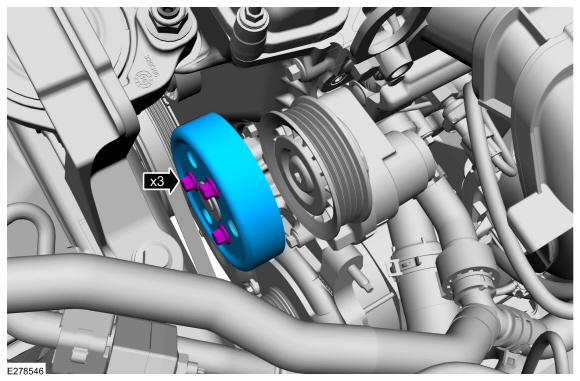

Install the coolant pump pulley and the bolts.

Courtesy of FORD MOTOR COMPANY

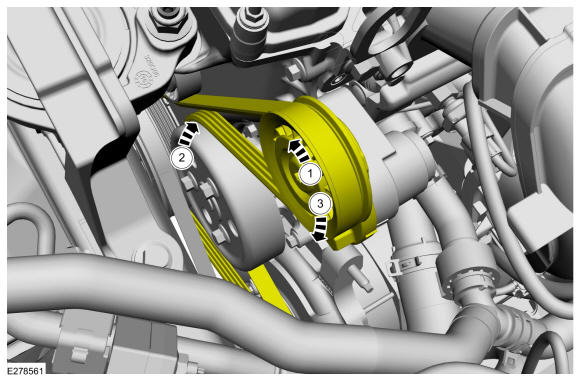

1. Using a suitable tool retract the accessory drive belt tensioner.
2. Install the accessory drive belt.
3. Release the accessory drive belt tensioner.
Courtesy of FORD MOTOR COMPANY

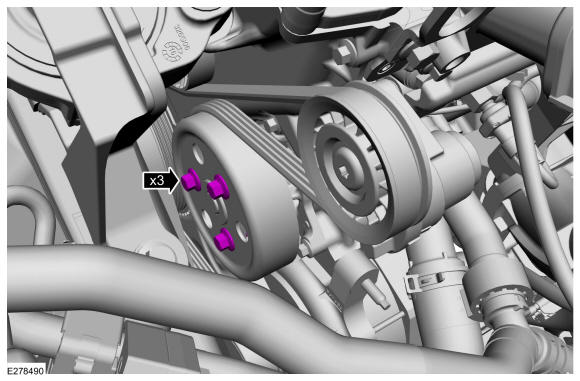

Tighten the coolant pump pulley bolts.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

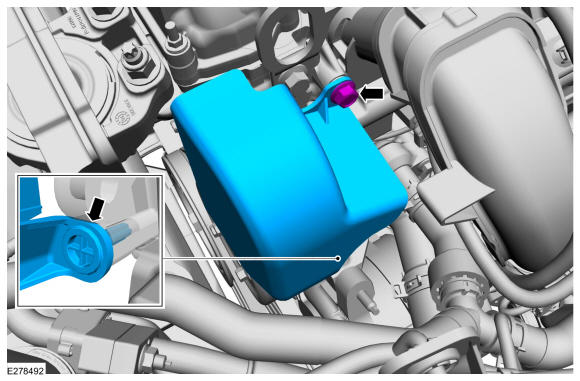

Install the accessory drive belt cover and the bolt.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the trolley jack and wooden block.
Use the General Equipment: Trolley Jack

Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

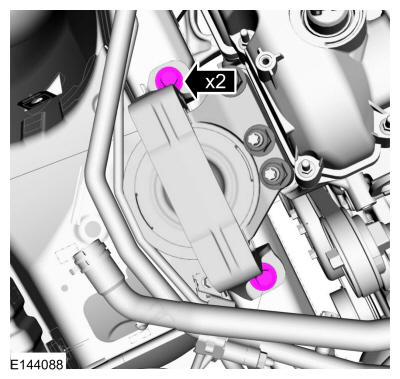

Install and tighten the engine mount bolts.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
Attach the degas bottle into the retaining tabs.

Courtesy of FORD MOTOR COMPANY
Install the engine undershield.

Courtesy of FORD MOTOR COMPANY
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Install the RH headlamp assembly. Refer to: Headlamp Assembly .
