Accessory Drive - 2.0L DURATEC-He (110KW/150PS) - Mi4
>>
Description And Operation
>>
Accessory Drive - Component Location
>>
2.0L Duratec-HE
2.0L Duratec-HE

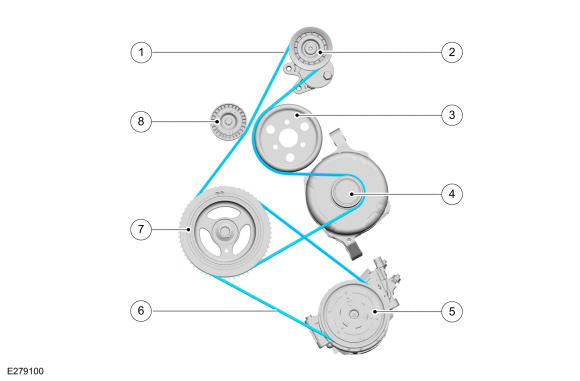

Fig 1: Accessory Drive Belt Routing & Replacement Components
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Accessory drive belt
2
Accessory drive belt tensioner
3
Coolant pump pulley
4
Generator pulley
5
A/C compressor pulley
6
A/C compressor belt
7
Crankshaft pulley
8
Accessory drive belt idler pulley
