Wipers and Washers

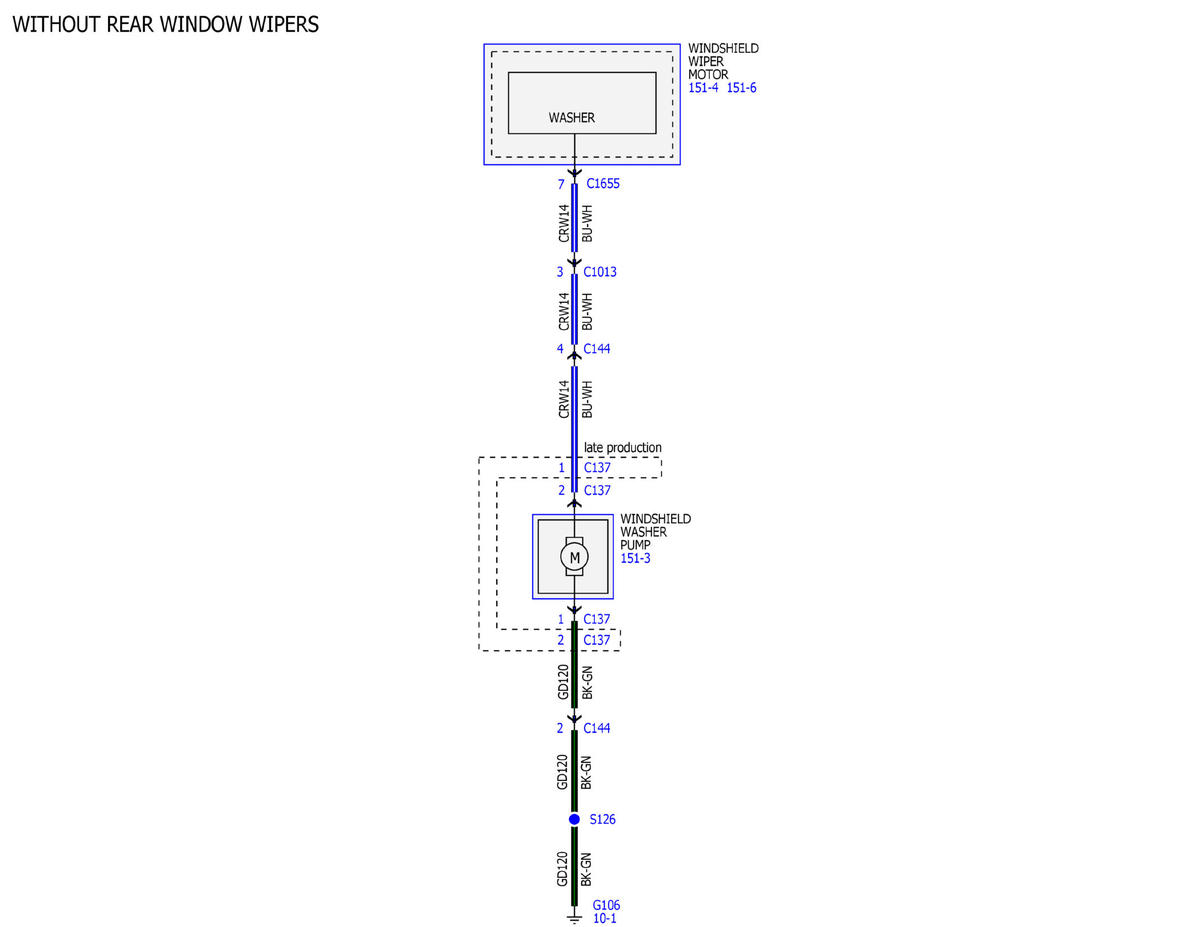

Fig 1: Identifying Wipers and Washers Wiring Diagram (1 Of 8)

Courtesy of FORD MOTOR COMPANY

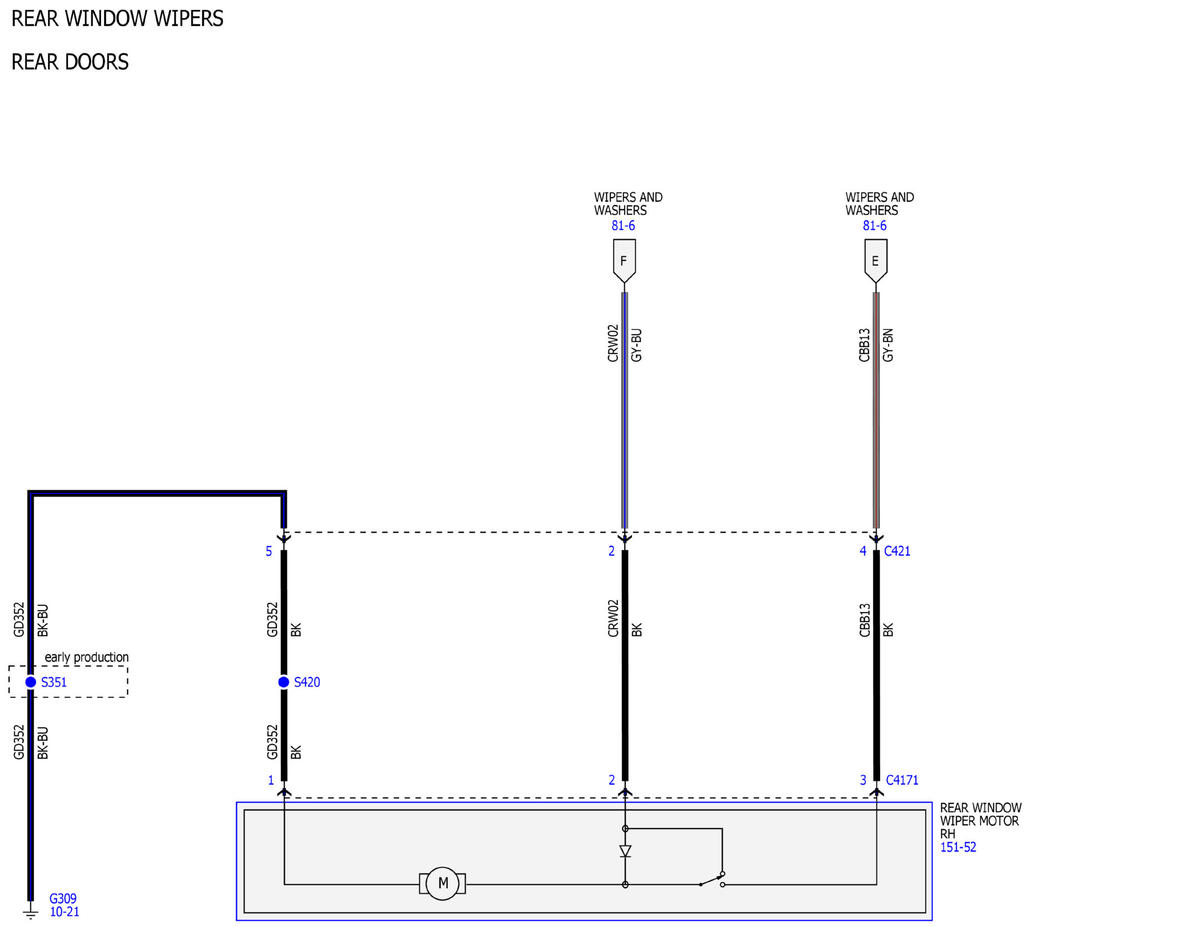

Fig 2: Identifying Wipers and Washers Wiring Diagram (2 Of 8)

Courtesy of FORD MOTOR COMPANY

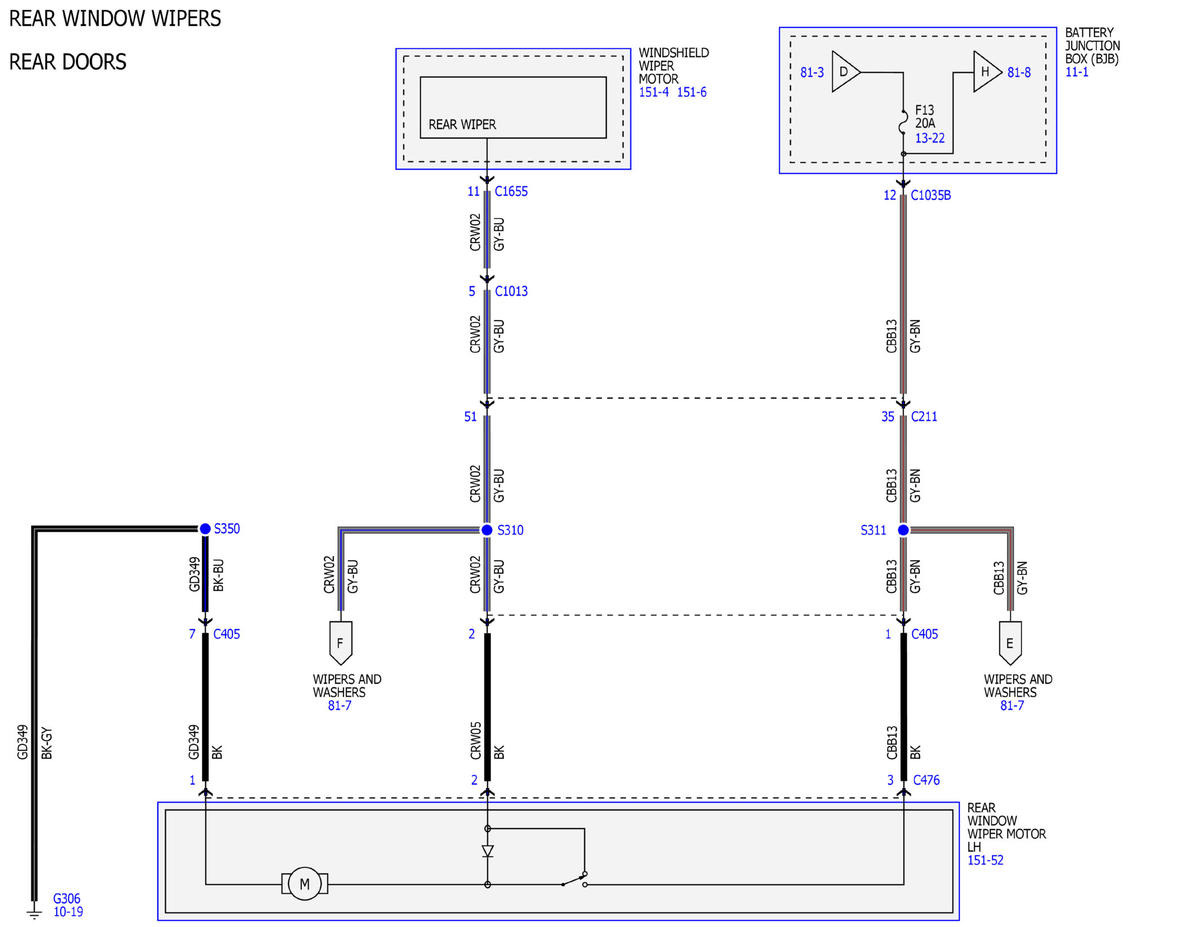

Fig 3: Identifying Wipers and Washers Wiring Diagram (3 Of 8)

Courtesy of FORD MOTOR COMPANY

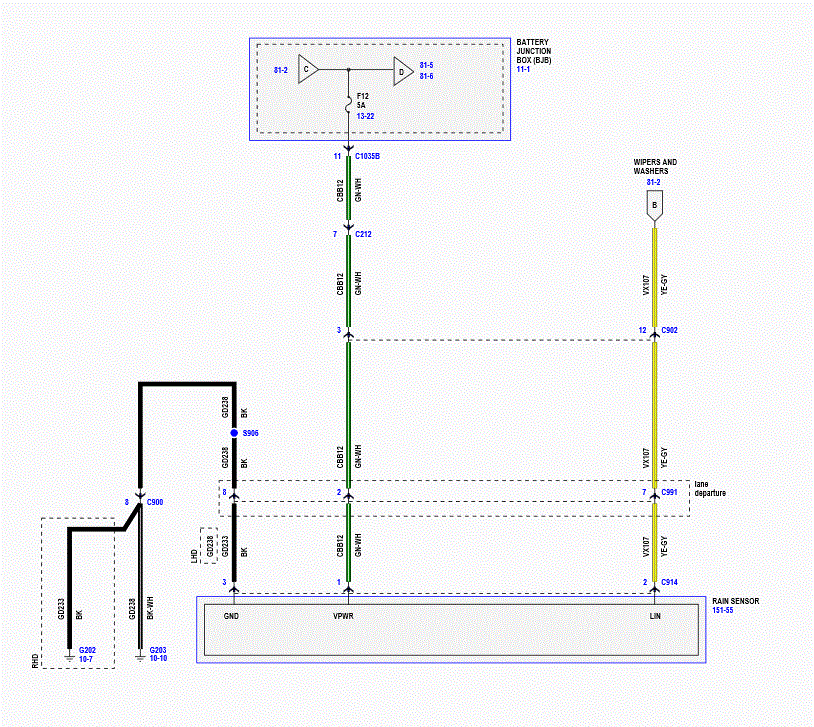

Fig 4: Identifying Wipers and Washers Wiring Diagram (4 Of 8)

Courtesy of FORD MOTOR COMPANY

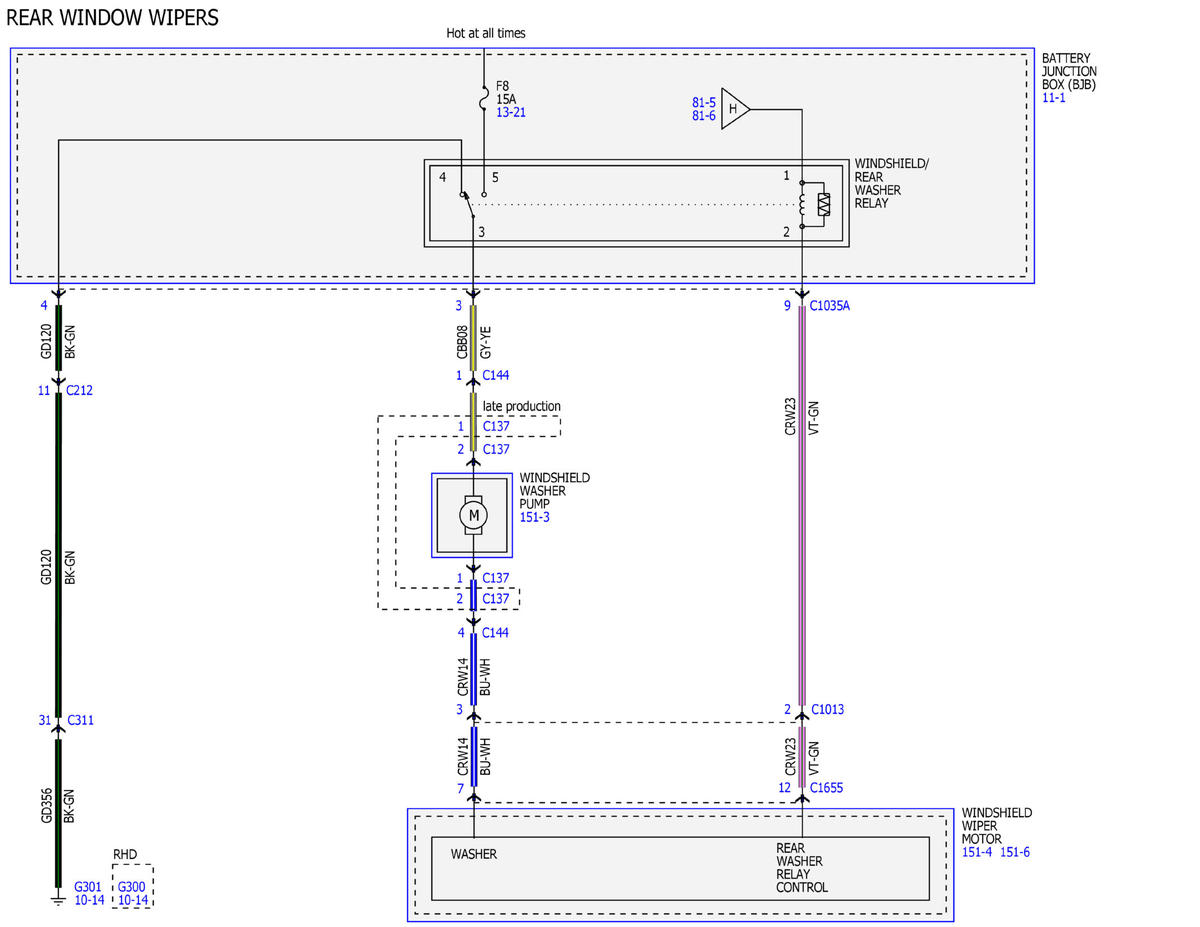

Fig 5: Identifying Wipers and Washers Wiring Diagram (5 Of 8)

Courtesy of FORD MOTOR COMPANY

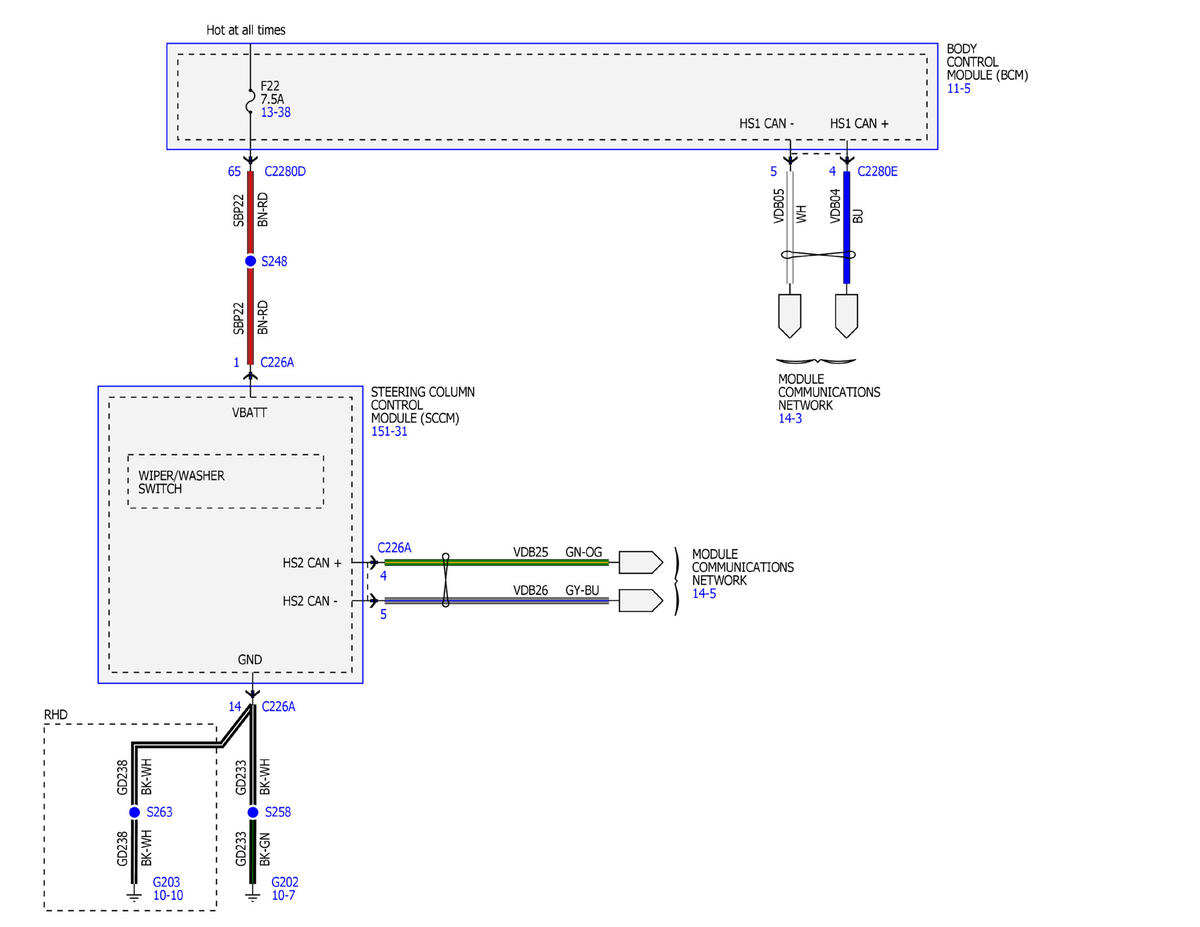

Fig 6: Identifying Wipers and Washers Wiring Diagram (6 Of 8)

Courtesy of FORD MOTOR COMPANY

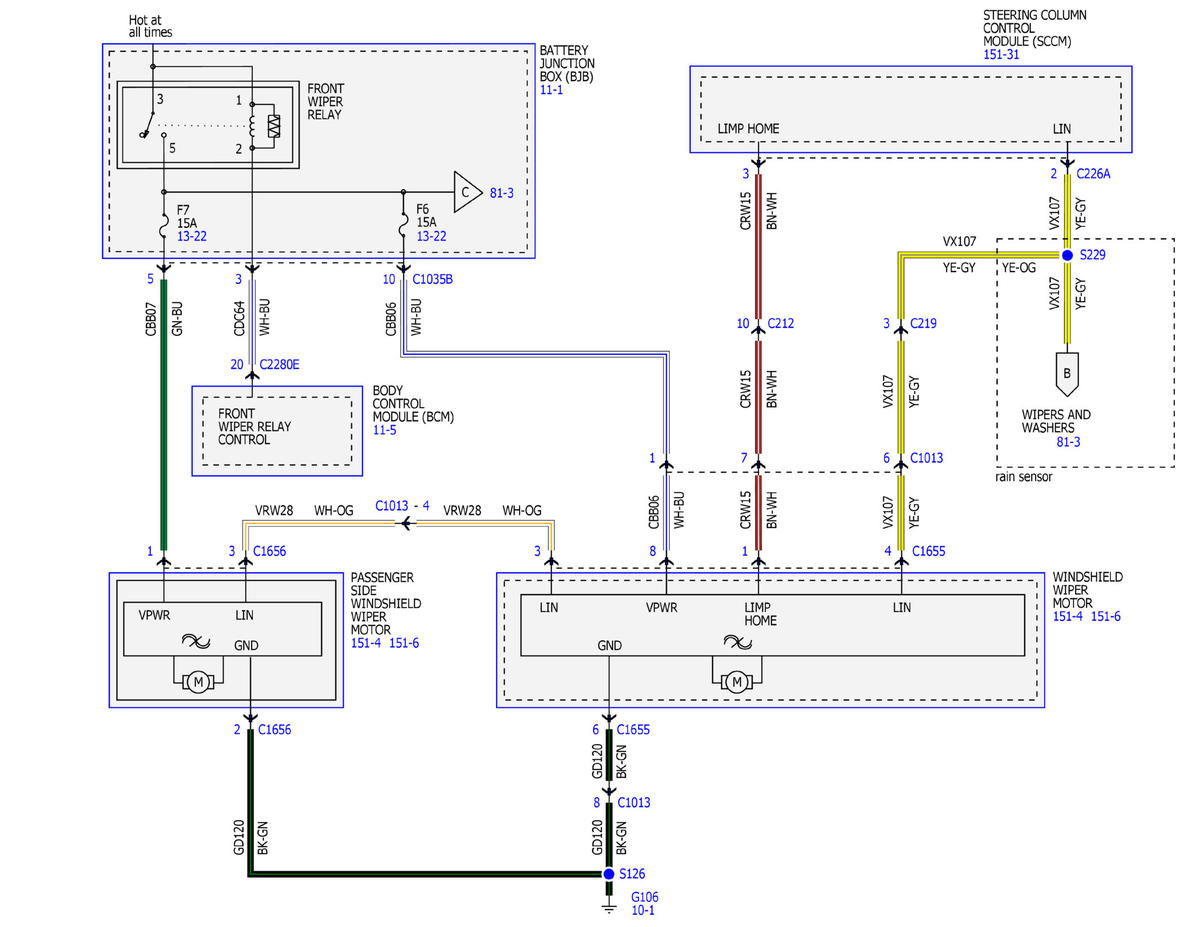

Fig 7: Identifying Wipers and Washers Wiring Diagram (7 Of 8)

Courtesy of FORD MOTOR COMPANY

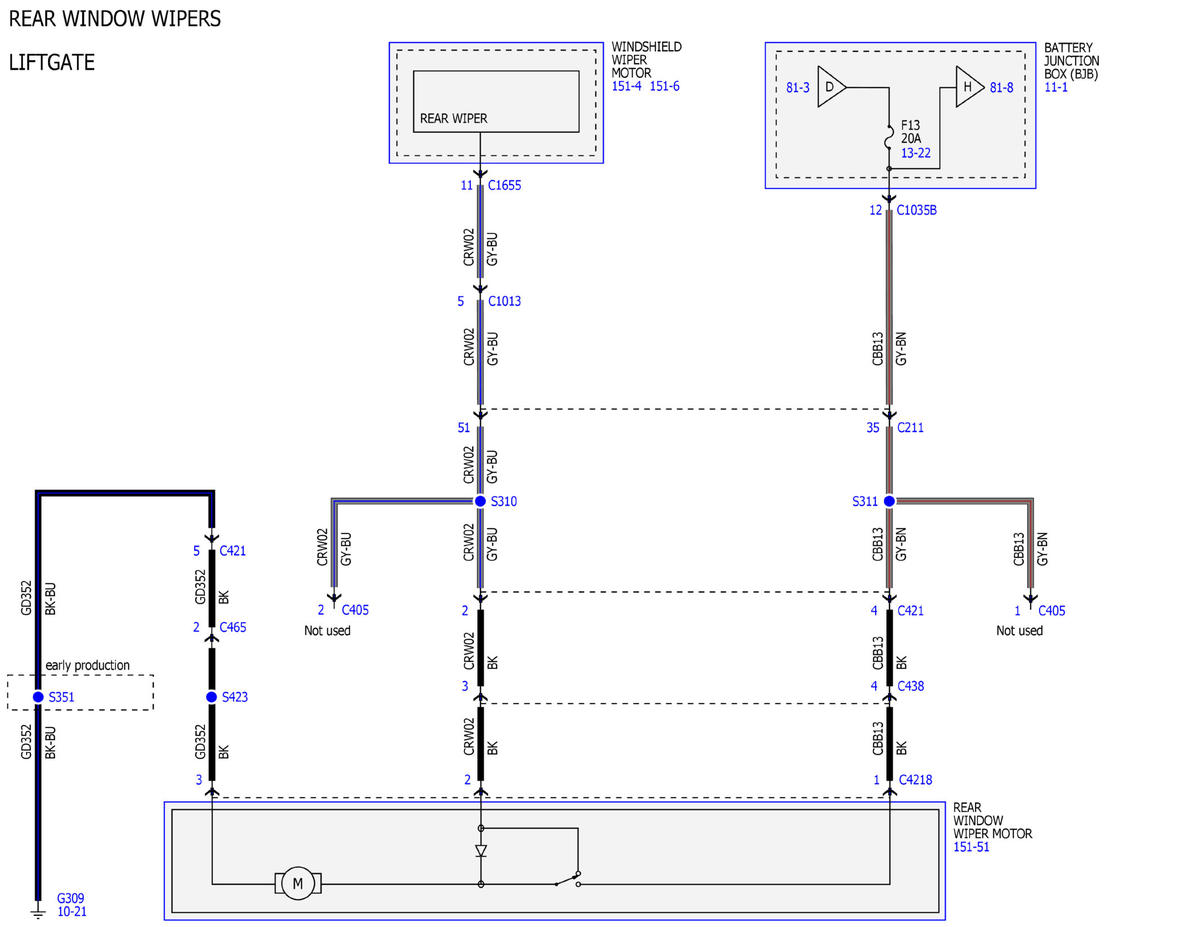

Fig 8: Identifying Wipers and Washers Wiring Diagram (8 Of 8)

Courtesy of FORD MOTOR COMPANY
