Vehicle Dynamic Systems
Vehicle Dynamic Systems

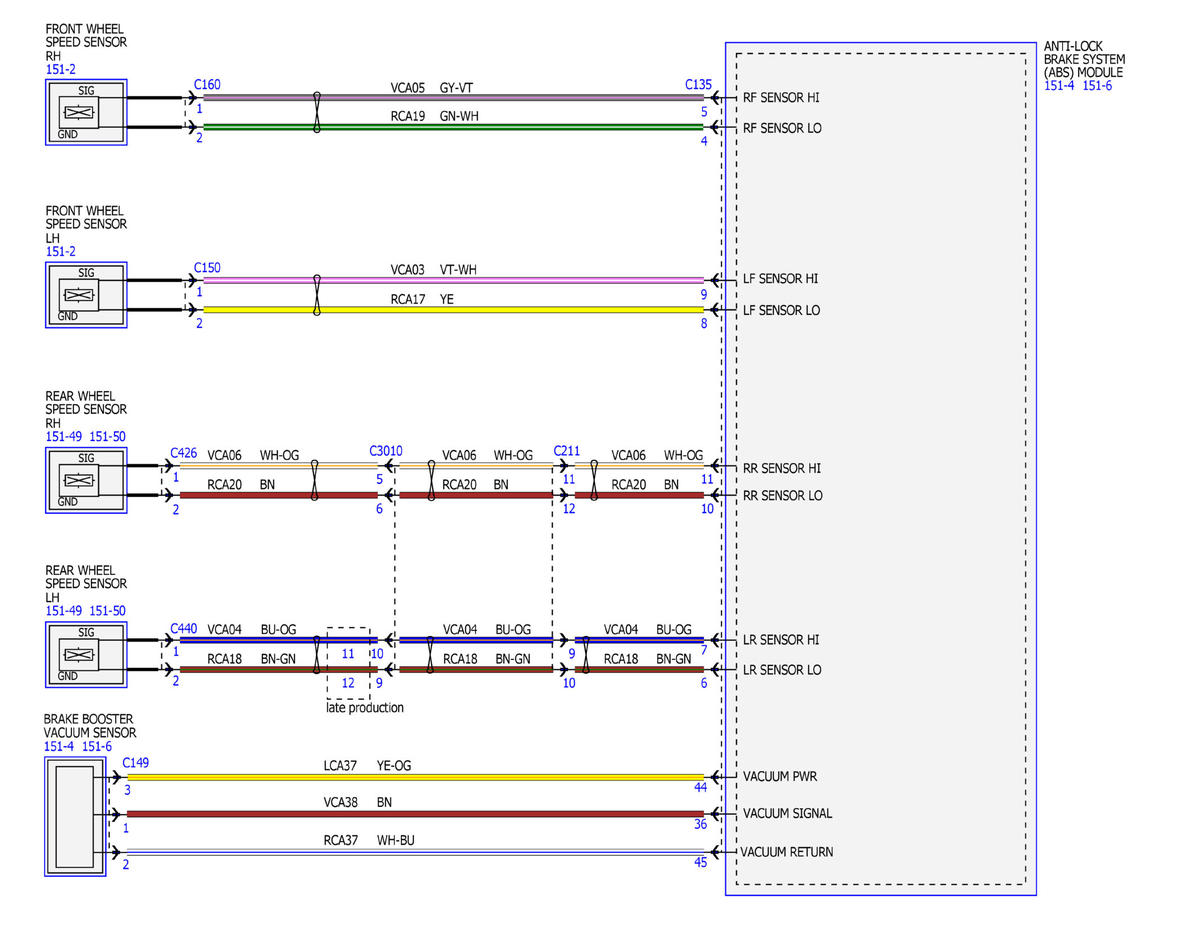

Fig 1: Identifying Vehicle Dynamic Systems Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR COMPANY

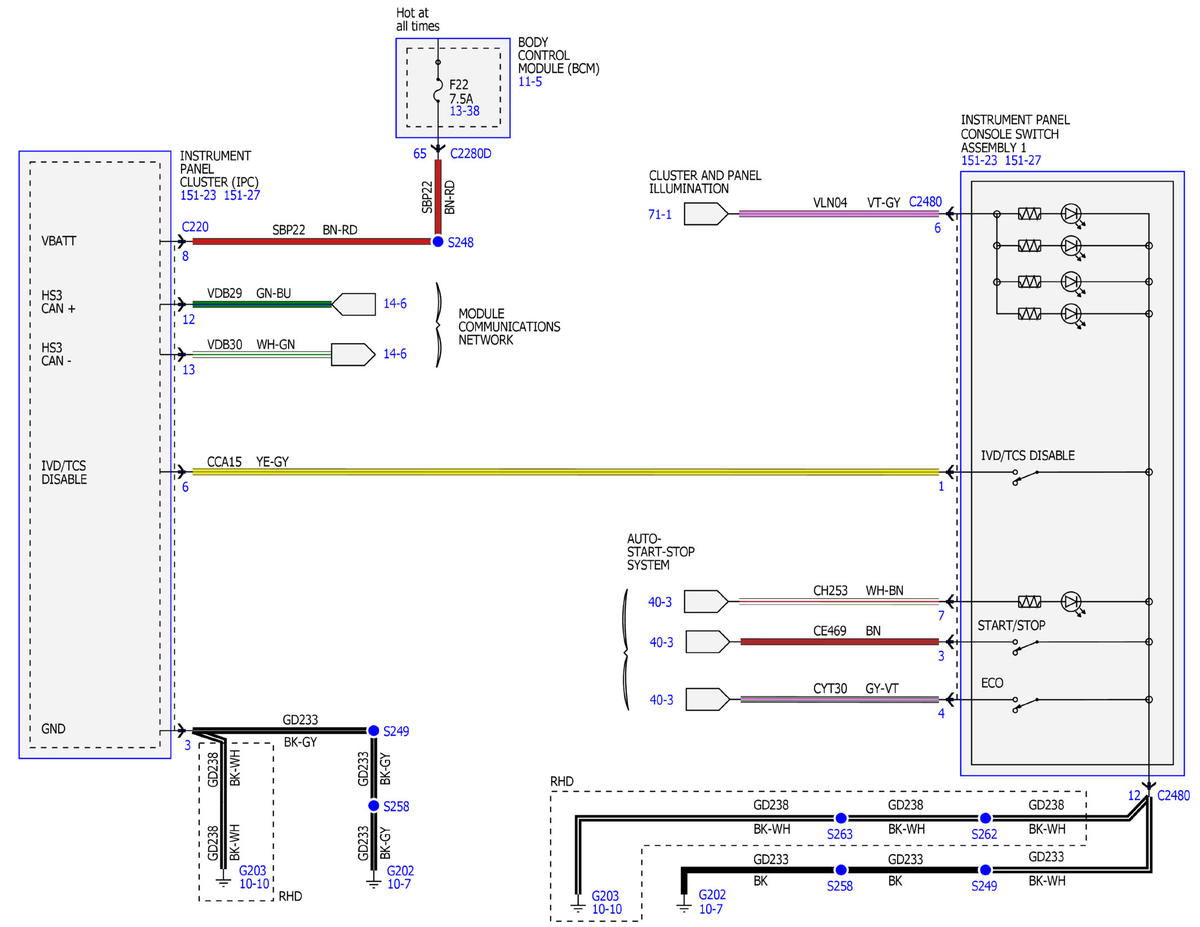

Fig 2: Identifying Vehicle Dynamic Systems Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR COMPANY

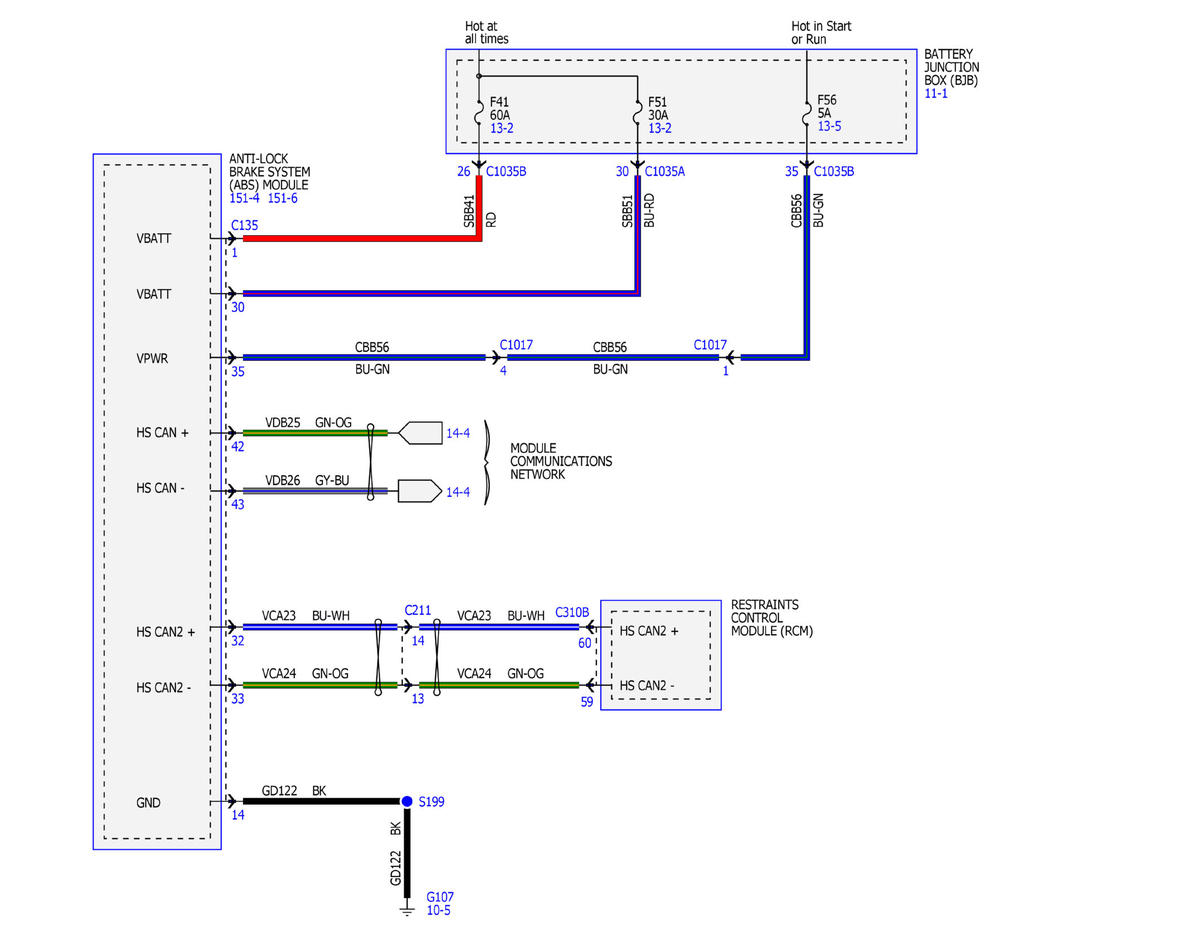

Fig 3: Identifying Vehicle Dynamic Systems Wiring Diagram (3 Of 3)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
