Turn Signal/Stop/Hazard Lamps
Turn Signal/Stop/Hazard Lamps

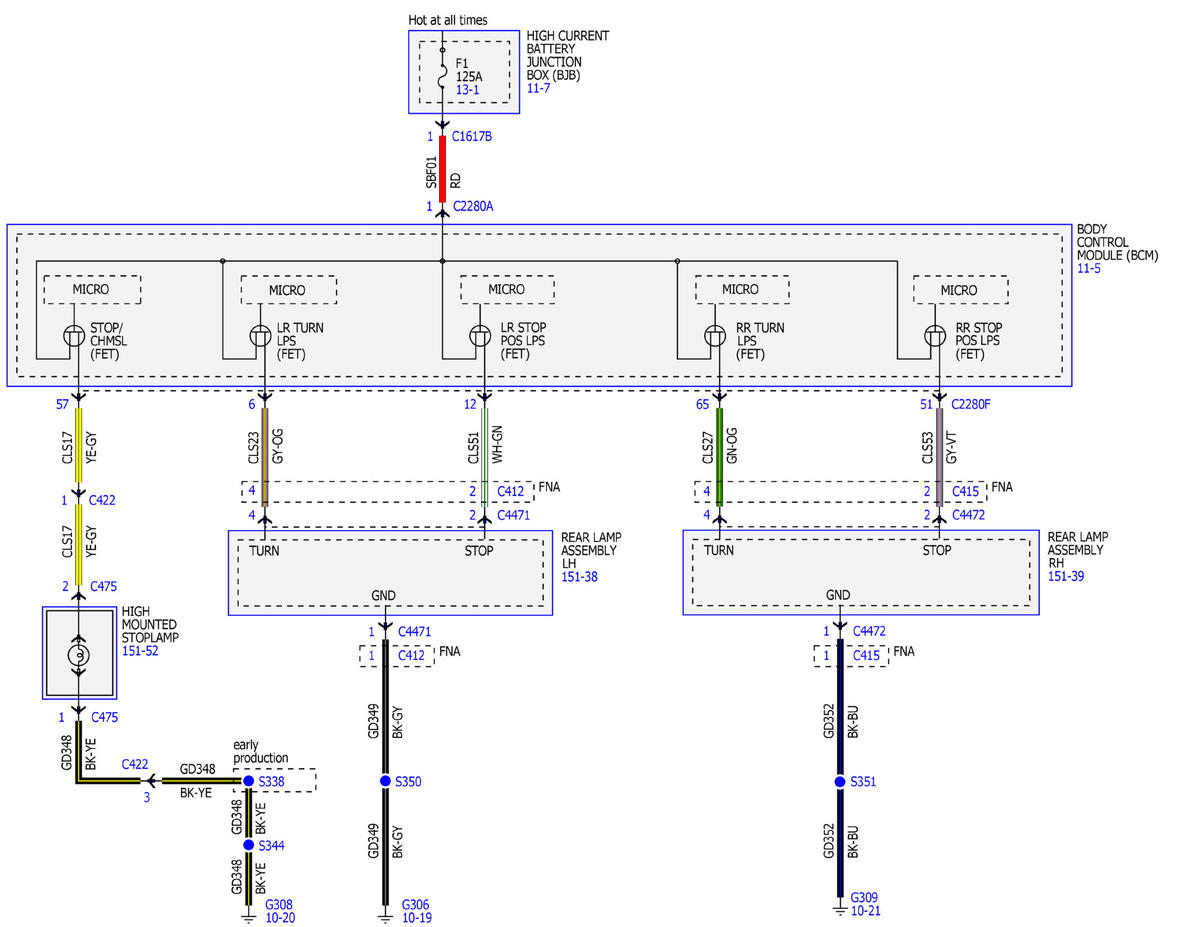

Fig 1: Identifying Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR COMPANY

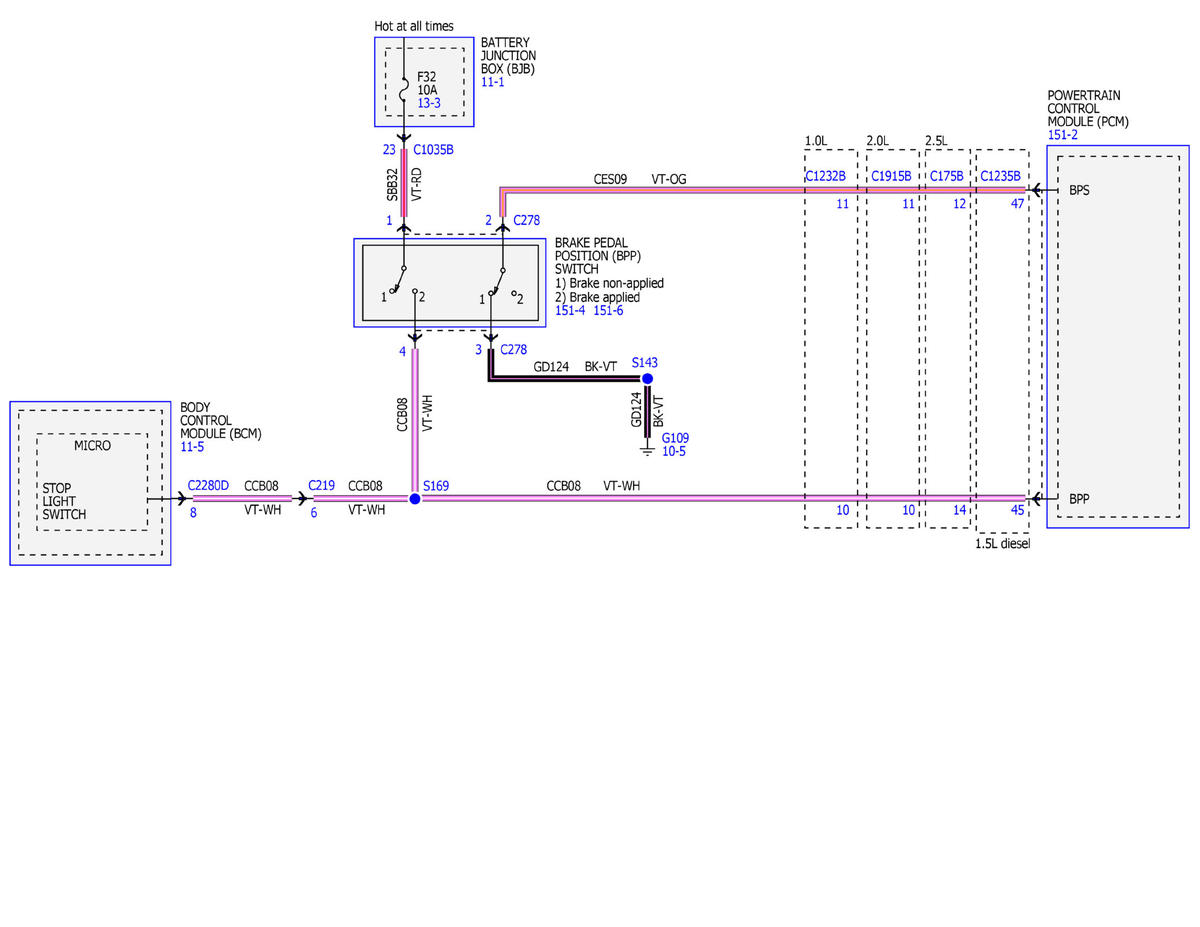

Fig 2: Identifying Turn Signal/Stop/Hazard Lamps Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR COMPANY

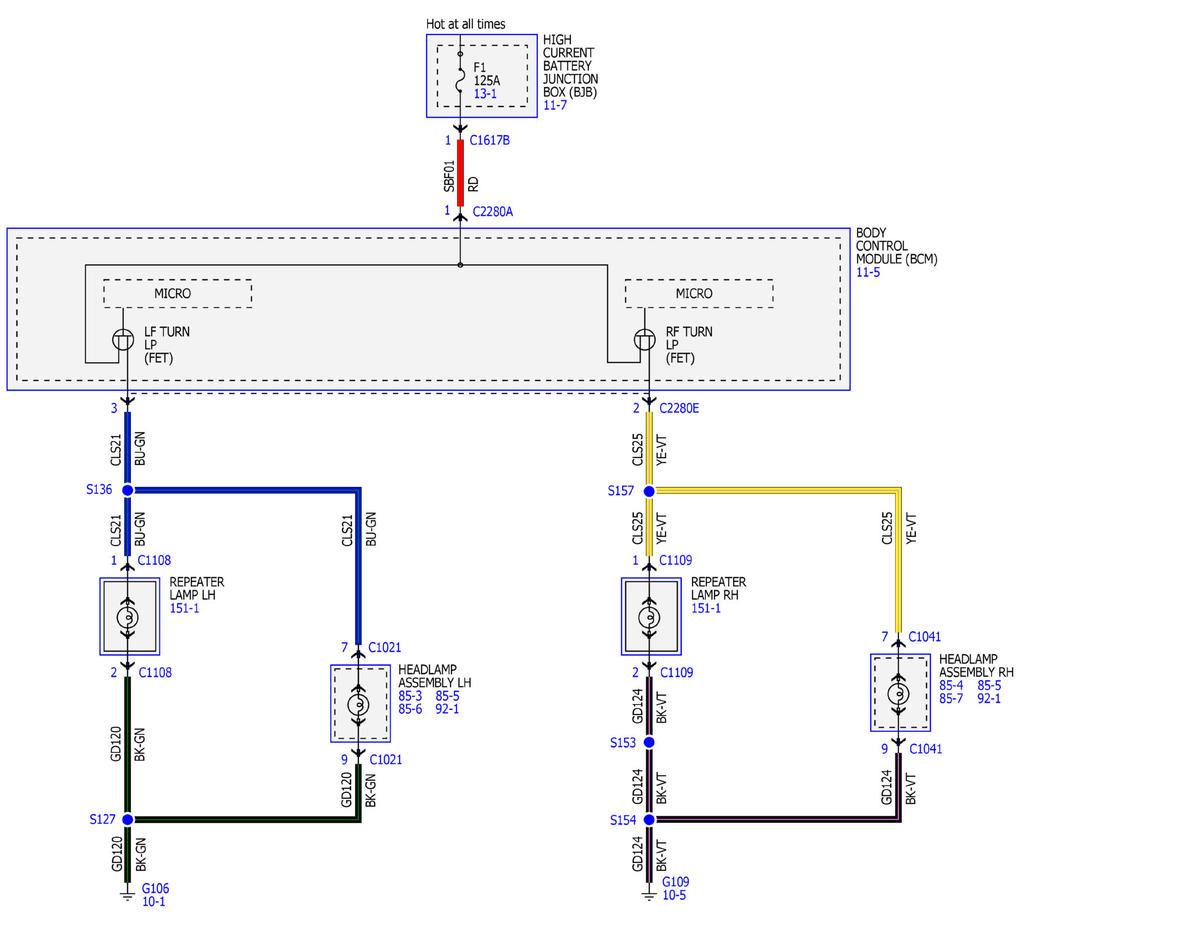

Fig 3: Identifying Turn Signal/Stop/Hazard Lamps Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR COMPANY

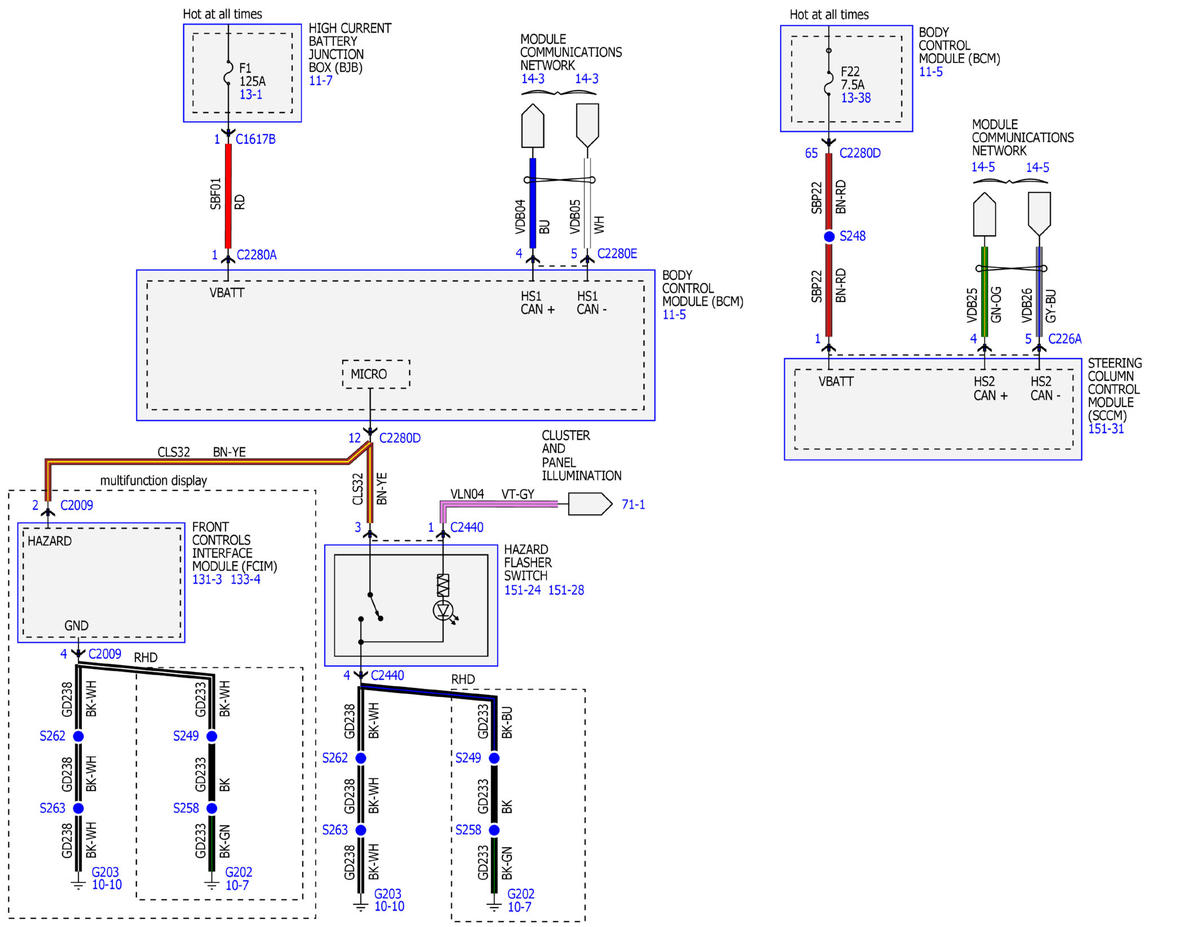

Fig 4: Identifying Turn Signal/Stop/Hazard Lamps Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
