Transmission Controls - 8F35

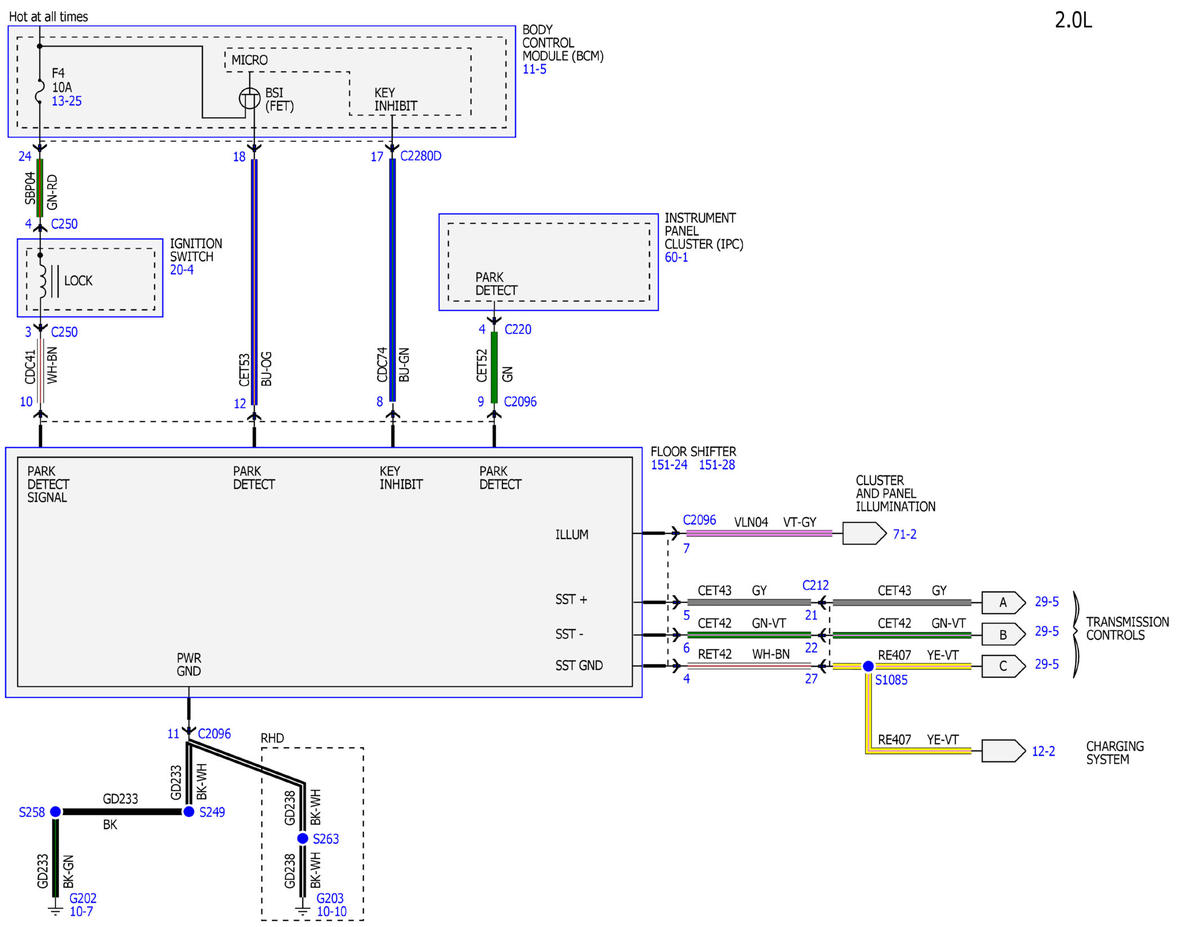

Fig 1: Identifying Transmission Controls - 8F35 Wiring Diagram (1 Of 11)
GFDWR130378Courtesy of FORD MOTOR COMPANY
Fig 2: Identifying Transmission Controls - 8F35 Wiring Diagram (2 Of 11)
GFDWR130381Courtesy of FORD MOTOR COMPANY

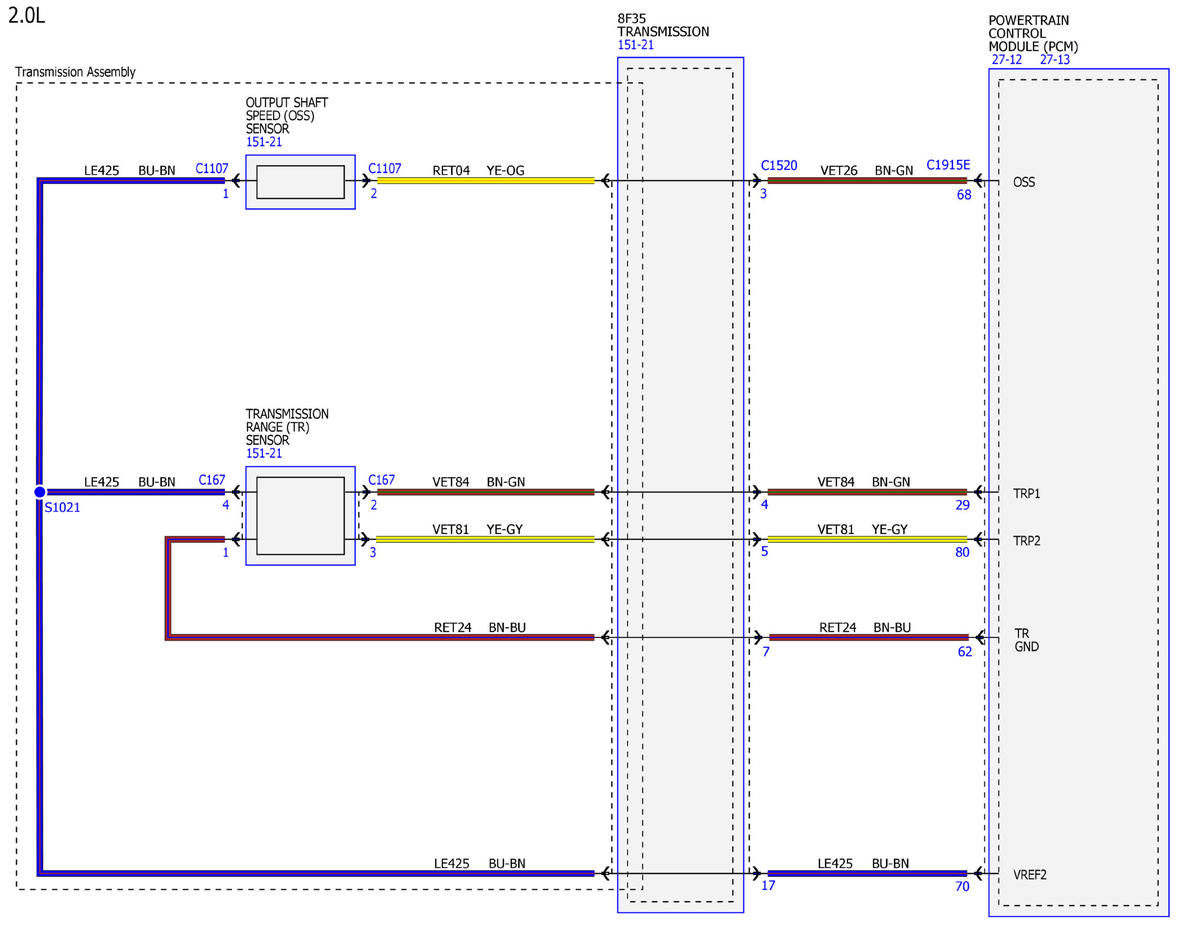

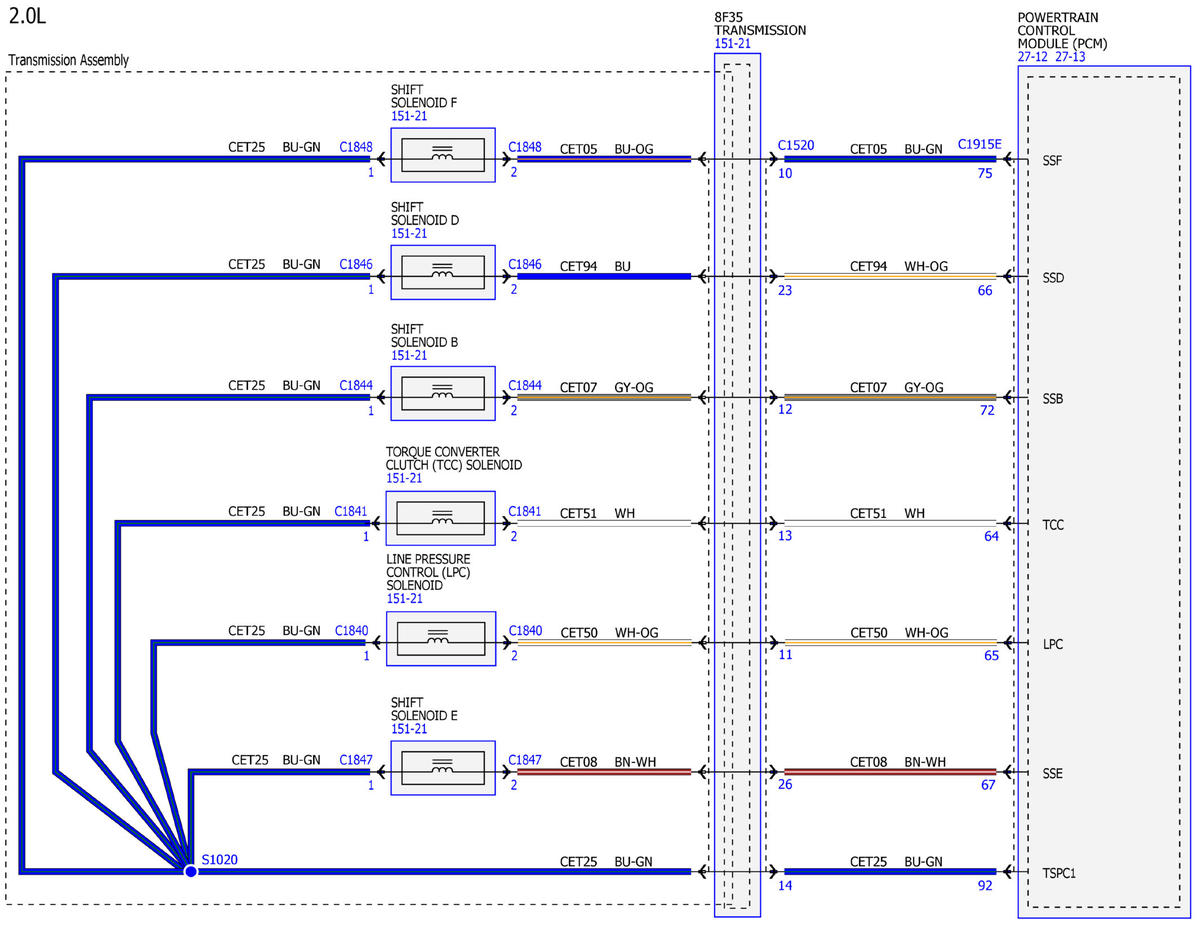

Fig 3: Identifying Transmission Controls - 8F35 Wiring Diagram (3 Of 11)
GFDWR130382Courtesy of FORD MOTOR COMPANY
Fig 4: Identifying Transmission Controls - 8F35 Wiring Diagram (4 Of 11)
GFDWR130383Courtesy of FORD MOTOR COMPANY

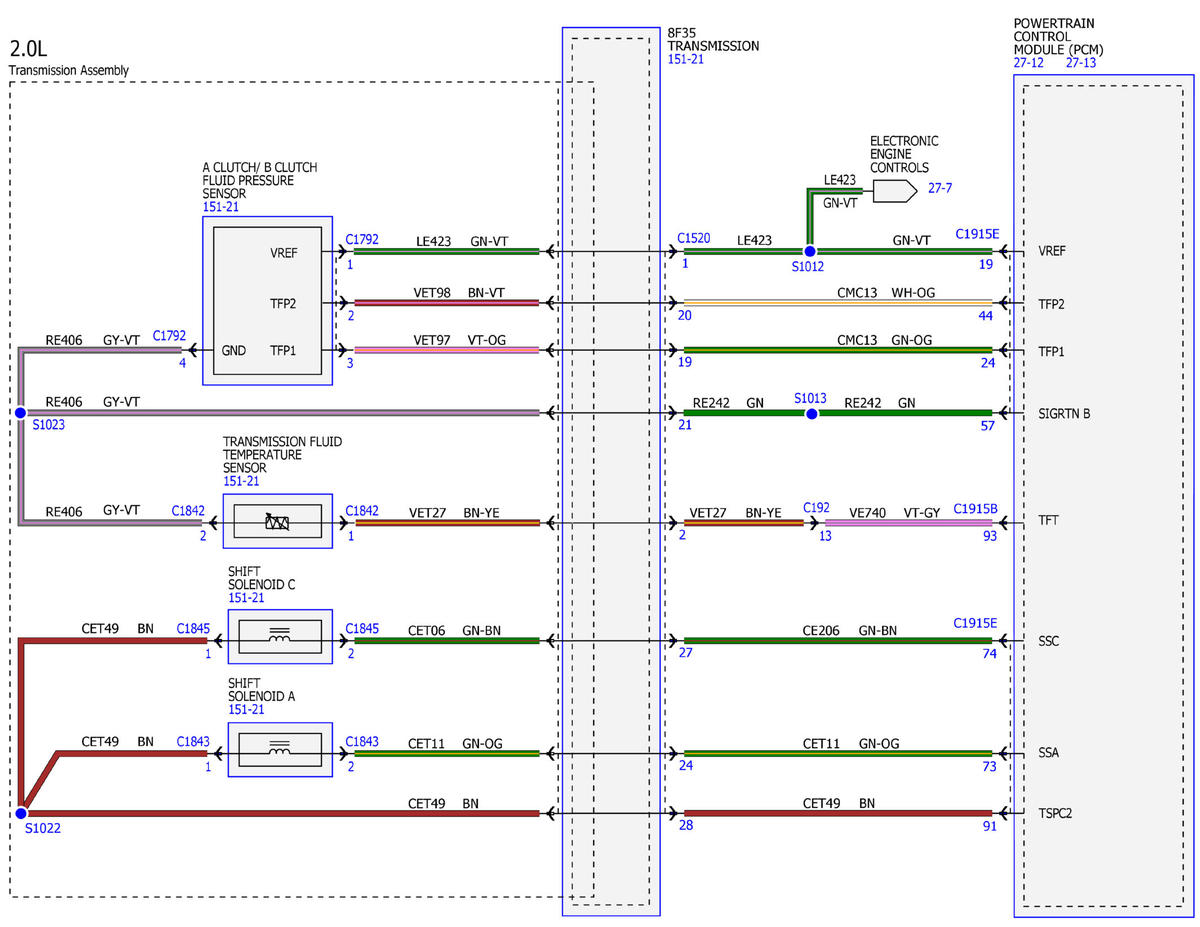

Fig 5: Identifying Transmission Controls - 8F35 Wiring Diagram (5 Of 11)
GFDWR130384Courtesy of FORD MOTOR COMPANY

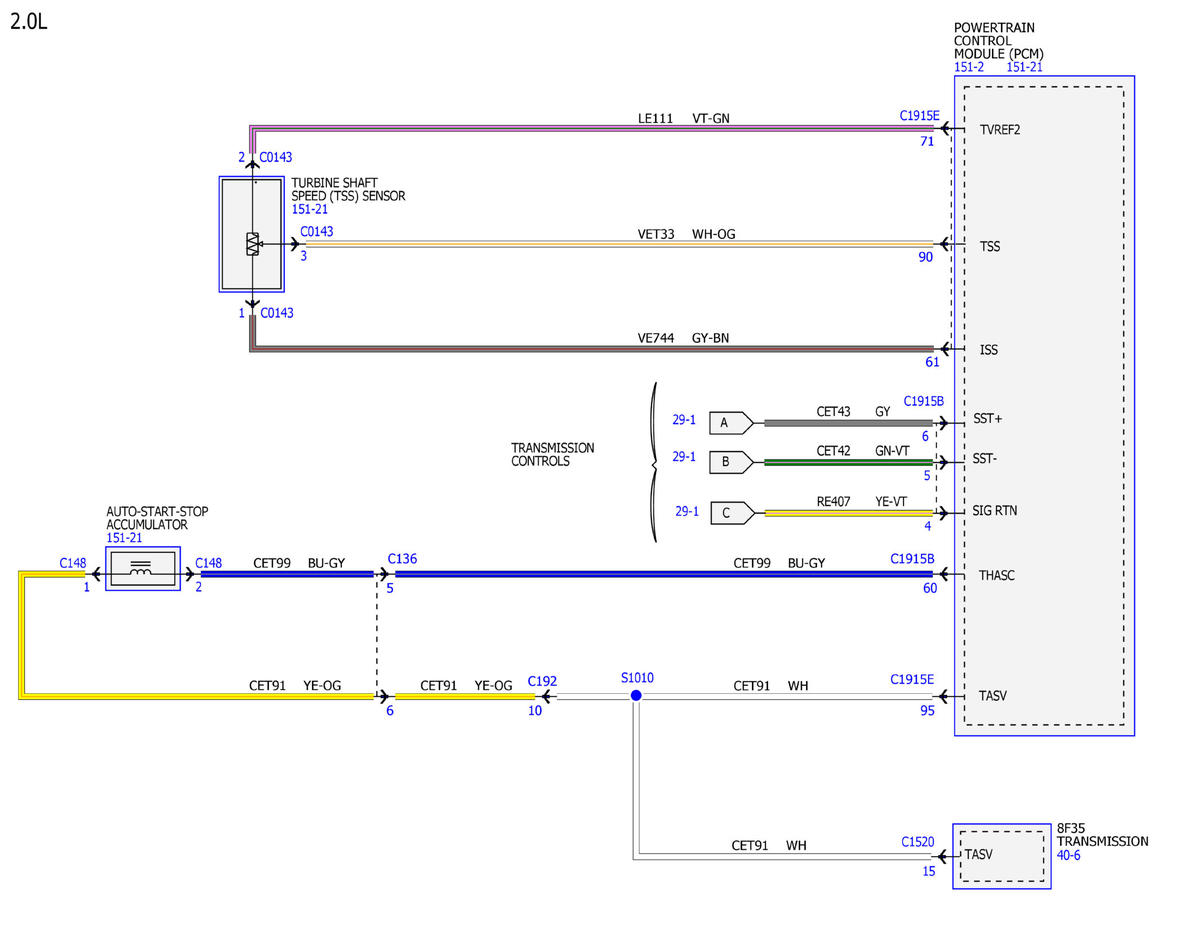

Fig 6: Identifying Transmission Controls - 8F35 Wiring Diagram (6 Of 11)
GFDWR130385Courtesy of FORD MOTOR COMPANY

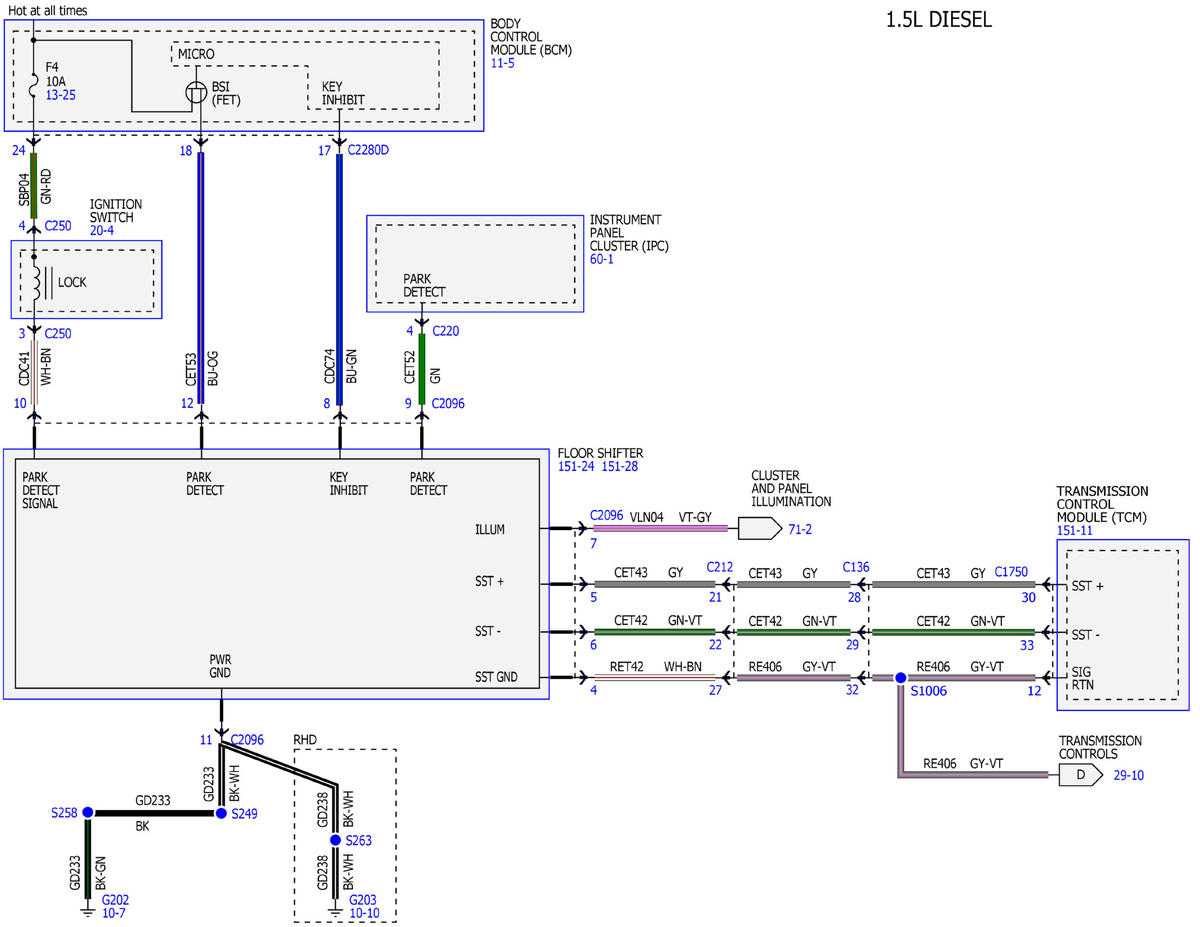

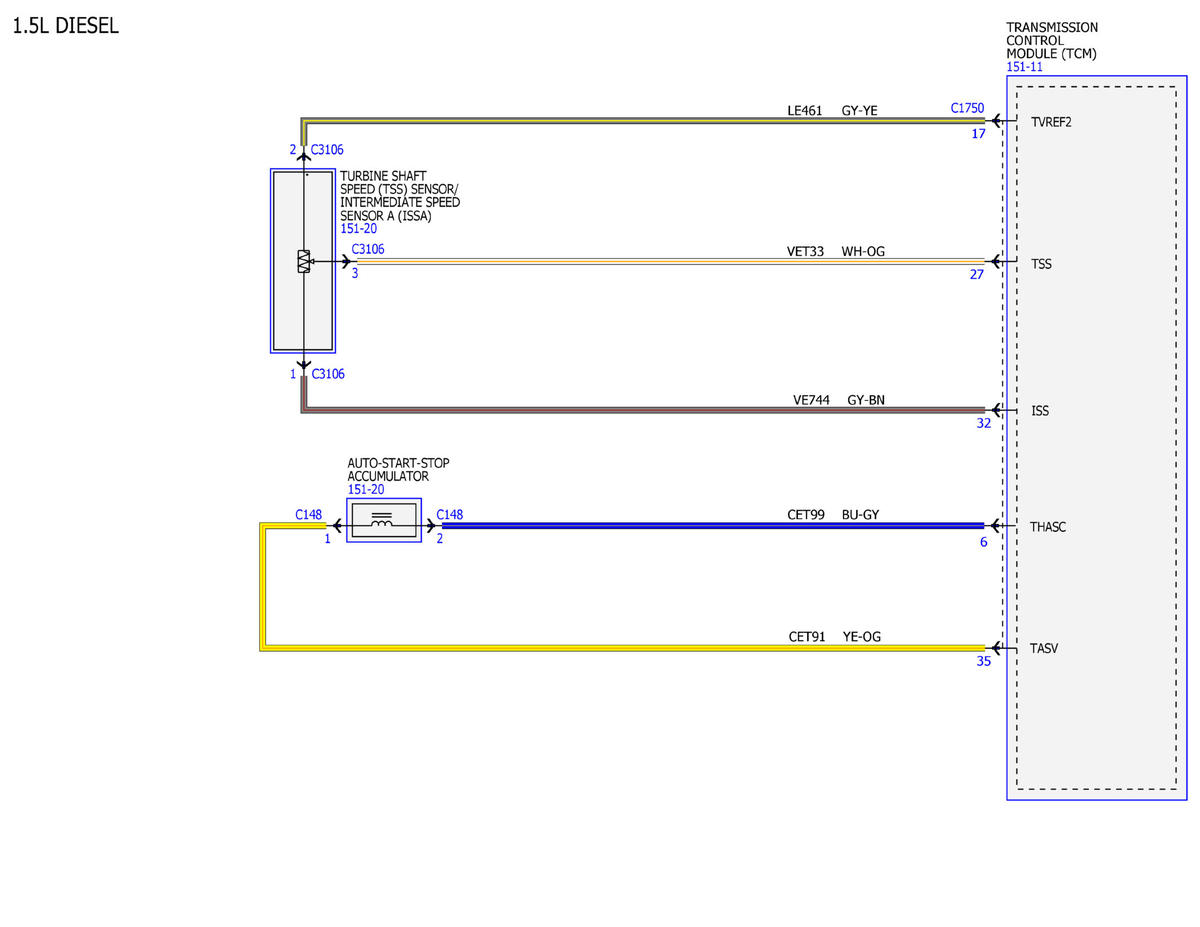

Fig 7: Identifying Transmission Controls - 8F35 Wiring Diagram (7 Of 11)
GFDWR130386Courtesy of FORD MOTOR COMPANY

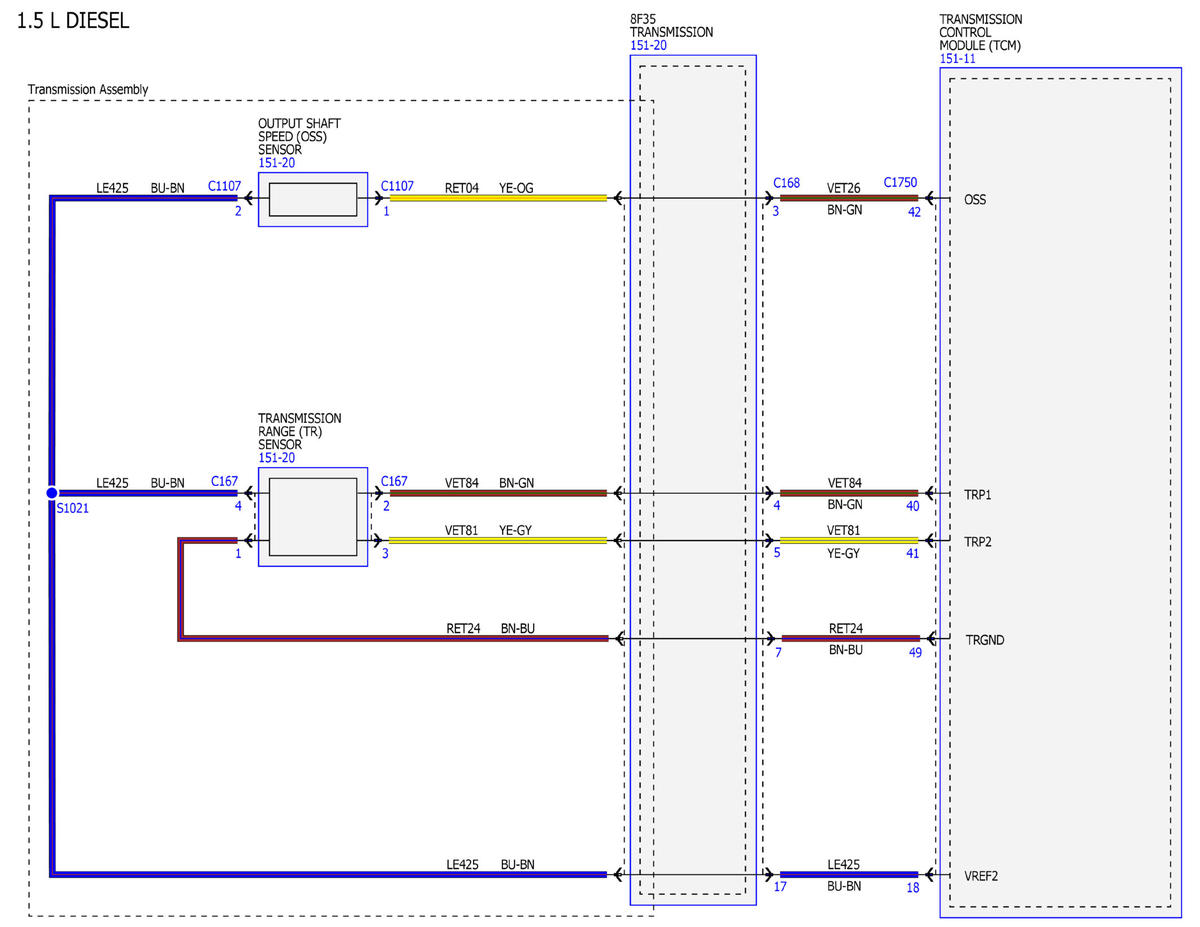

Fig 8: Identifying Transmission Controls - 8F35 Wiring Diagram (8 Of 11)
GFDWR130387Courtesy of FORD MOTOR COMPANY

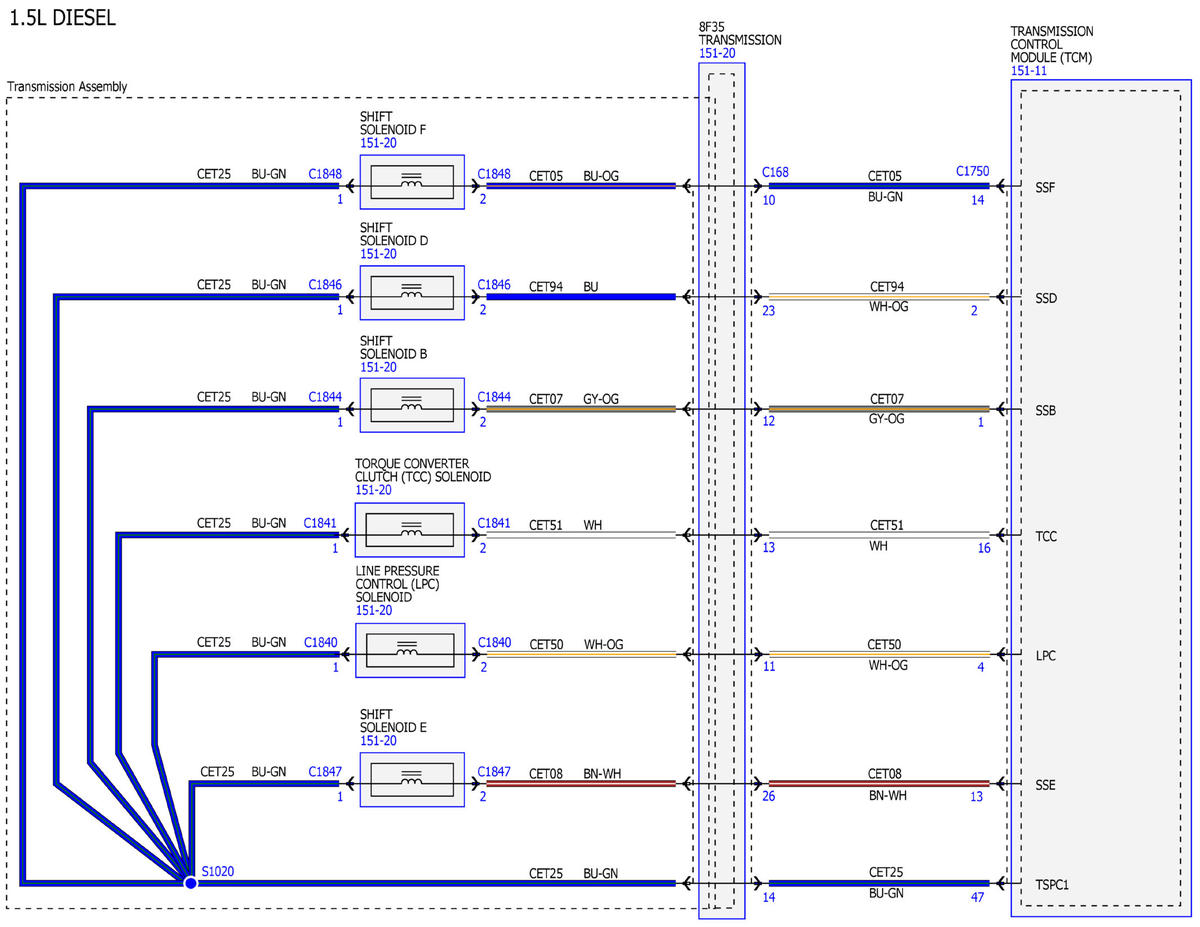

Fig 9: Identifying Transmission Controls - 8F35 Wiring Diagram (9 Of 11)
GFDWR130388Courtesy of FORD MOTOR COMPANY

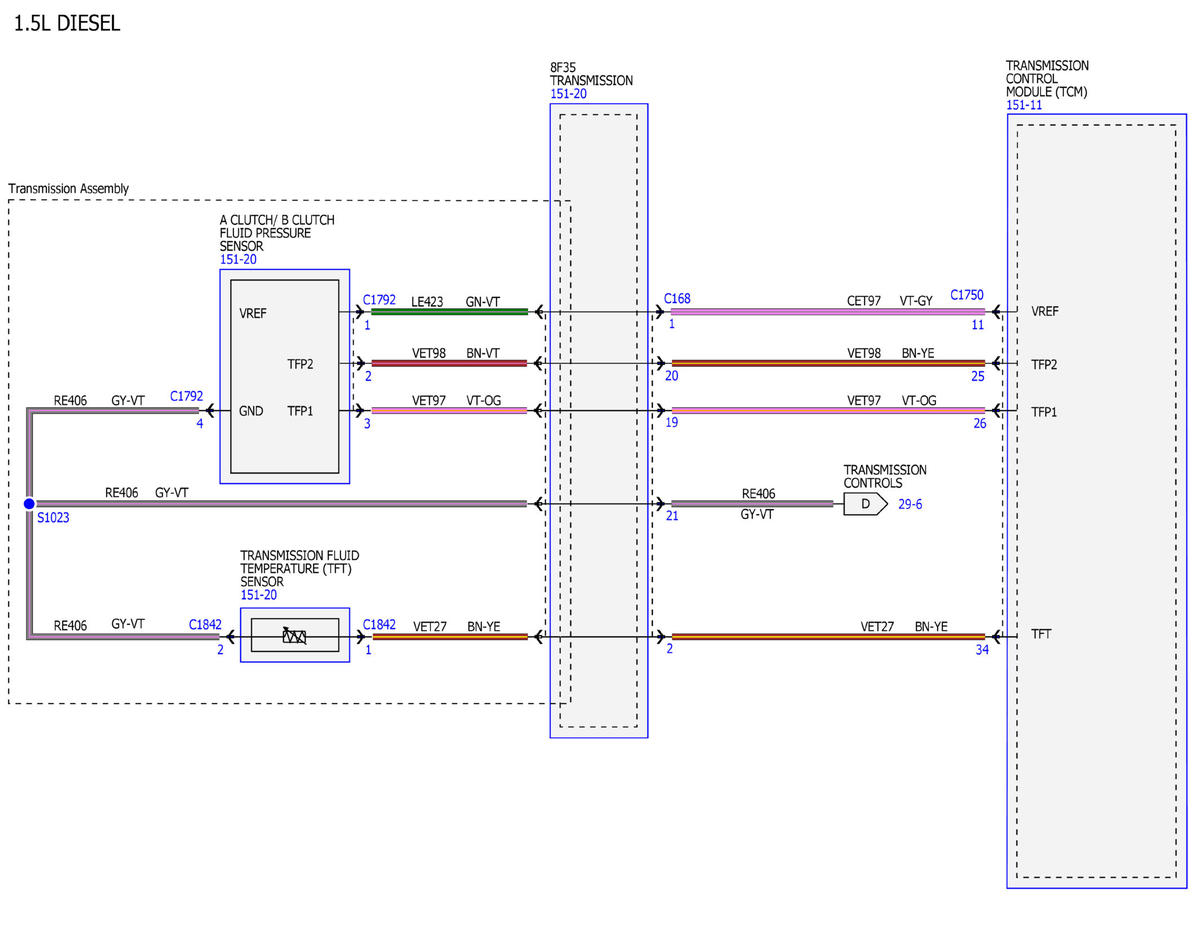

Fig 10: Identifying Transmission Controls - 8F35 Wiring Diagram (10 Of 11)
GFDWR130379Courtesy of FORD MOTOR COMPANY

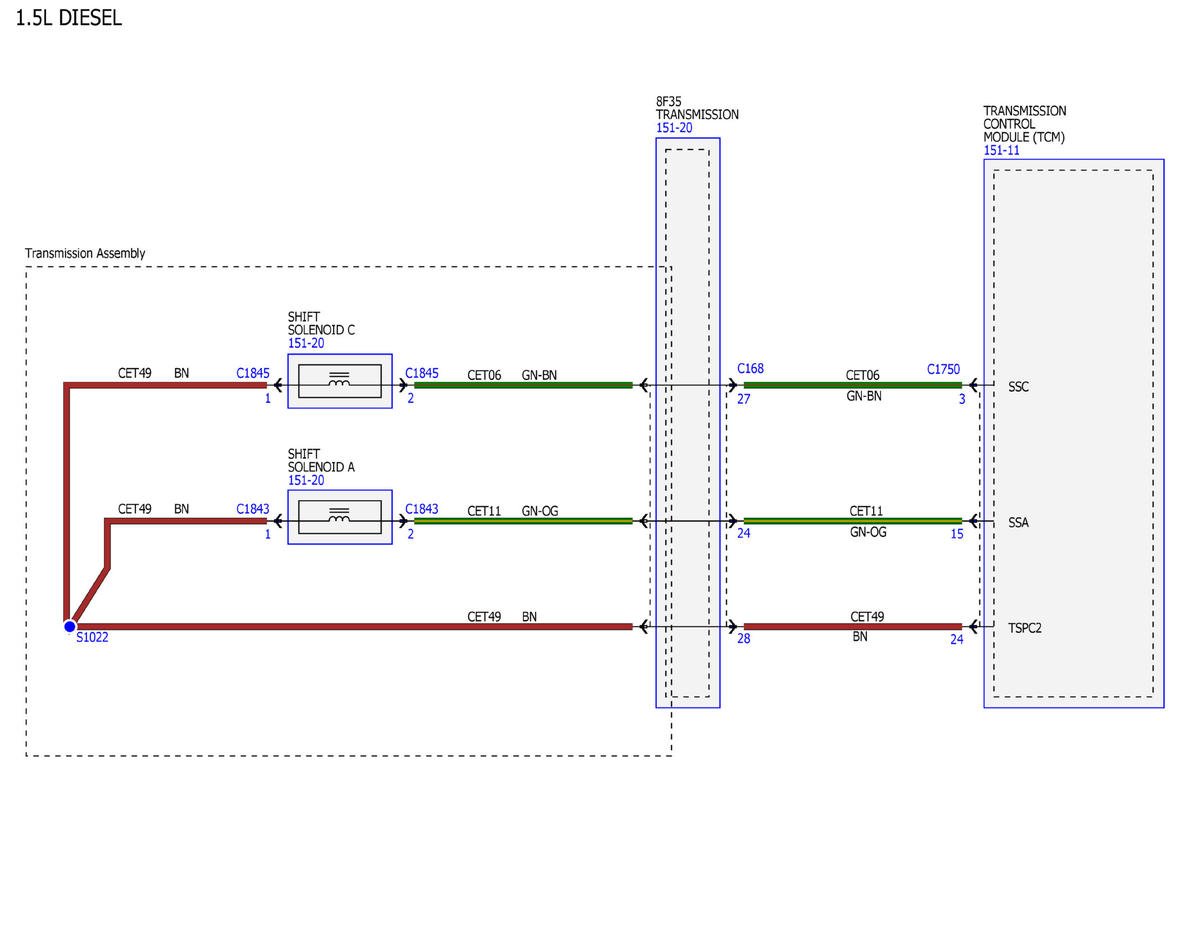

Fig 11: Identifying Transmission Controls - 8F35 Wiring Diagram (11 Of 11)
GFDWR130380Courtesy of FORD MOTOR COMPANY
